Emtek Emtek 1262 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Non-Keyed Passage EMTEK-1262

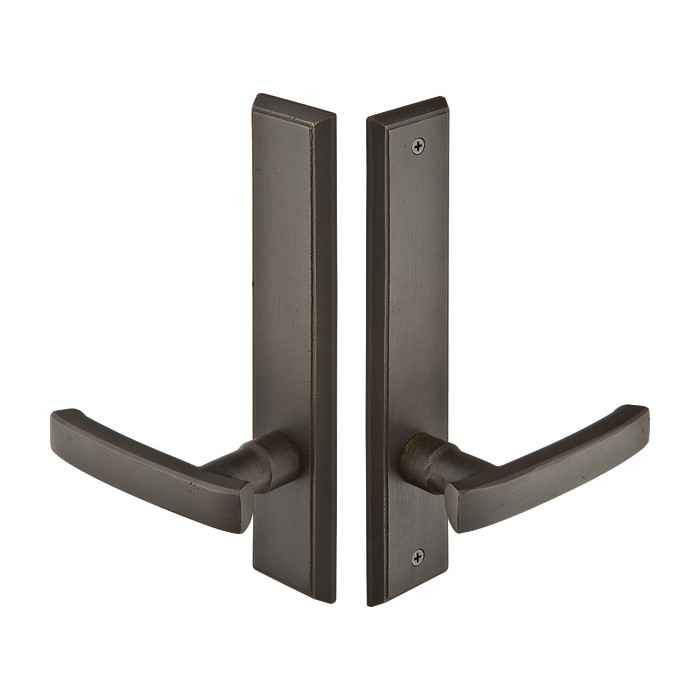

Emtek 1262 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 1262-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 1262 Multi Point Lock Trim (Door Config #2) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Non-Keyed Passage

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#2
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
BiltBest, G-U, Hurd (Energy Saver), Andersen
Series:
Rectangular
Theme:
Rustic Living
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
1262
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Passage
Product Size:
2" x 10"
Cylinder Classification:
American
Product Shape:
Rectangular
Product Style:
Rectangular
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1262-FB – Frequently Asked Questions

1) Does the Emtek 1262 multi point trim include the mortise lock body?
No. The Emtek 1262 is trim only: you get the two 2 x 10 inch sandcast bronze plates and the handles. The multi point mortise lock box is a separate purchase, so you need to already have a working lock body in the door or order one to match your door's configuration.
2) Which patio doors does Emtek Door Configuration #2 multi point trim fit?
Configuration #2 is referenced to BiltBest, G-U, Hurd (Energy Saver), and Andersen swinging patio doors. The layout that defines it is a 3-5/8 inch center-to-center between handle and cylinder hole, with the cylinder position above the handle. Measure your existing gearbox hole spacing against that before ordering, since Emtek's configurations differ mainly by that spacing and cylinder placement.
3) Will the Emtek 1262 trim work on a 1-3/4 inch door?
Yes. The 1262 covers doors from 1-3/8 to 1-3/4 inches thick, which spans standard residential patio door thicknesses. Door thickness is a field you fill in when ordering so the spindle and screw pack match your slab.
4) Is the Emtek 1262 keyed, and can I lock the patio door with it?
It is a non-keyed passage trim. The handles operate the multi point latching, but there is no cylinder and no locking function in the trim itself. If you need to key the door, you want the keyed version of the same configuration rather than this one, since the 1262's plates are set up for passage only.
5) What do I have to specify when ordering Emtek 1262 multi point trim?
Three things are required: handing (right or left hand), lever style, and finish. Lever choices are Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, and Yuma, all sandcast bronze. Finish is Flat Black Bronze, Medium Bronze, or Tumbled White Bronze. You can also enter your door thickness. Handing is not field-reversible on multi point trim, so get it right off the door as it swings toward you.
6) Do the levers on this Emtek patio trim sag over time?
Emtek's multi point trim now ships with a spring assist that returns the lever to the neutral horizontal position, which is what prevents the droop you see on older long-plate patio handles. That is built into the trim, not something you add.
7) Will the Emtek 1262 cover the existing bore in my patio door?
The 1262 works with a 2-1/8 inch cross bore and an adjustable 2-3/8 or 2-3/4 inch backset, which is standard prep, and the 2 x 10 inch plates hide the surrounding hole and any minor previous mounting marks. What it will not correct is a different handle-to-cylinder spacing; that has to be the 3-5/8 inch center-to-center the trim is built for.
8) Is Emtek sandcast bronze trim suitable for a commercial entrance?
It is classified as residential hardware. For a multi-family unit's own patio door that is fine; for a commercial opening subject to traffic and code-driven grading, specify a commercial-rated door set instead. Material is sandcast bronze, which develops a living patina, particularly in Medium Bronze and Tumbled White Bronze.
9) Can I match the 1262 trim to Emtek levers already on my interior doors?
Yes, within the Sandcast Bronze collection. The 1262 accepts any Emtek sandcast bronze lever, so you can run the same lever style and one of the three bronze finishes across the patio door and the interior openings for a consistent look.
10) Does the latch faceplate come square or round cornered?
Both corner styles are covered, round or square, so the faceplate can follow the existing mortise pocket in the door rather than forcing a rework of the edge prep.
