Emtek Emtek 1563 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Non-Keyed American Style Thumbturn Inside EMTEK-1563

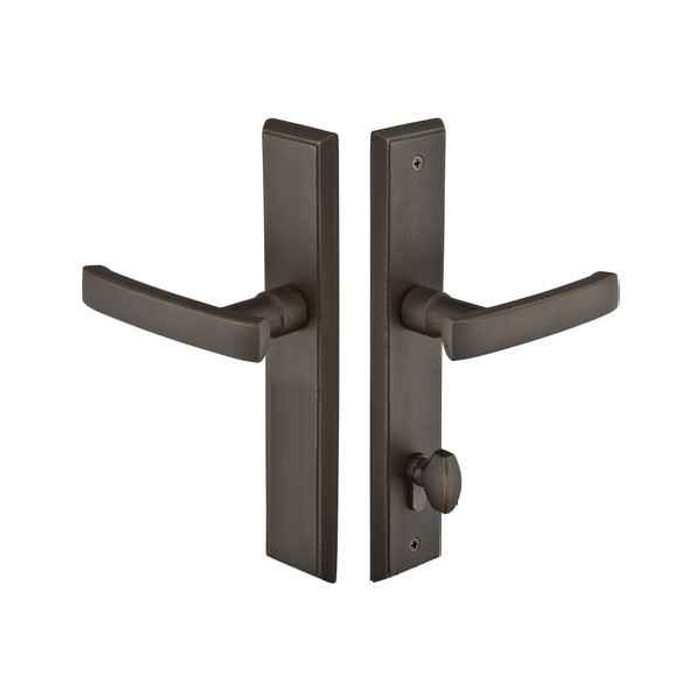

Emtek 1563 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1563-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #5
  • Plate Size: 2" x 10"
  • Material: Sandcast Bronze
  • Plate Style: Rectangular
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1563 Multi Point Lock Trim (Door Config #5) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Below Handle
Door Configuration:
#5
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor, Weathershield
Series:
Rectangular
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1563
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
2" x 10"
Cylinder Classification:
Euro Profile
Product Shape:
Rectangular
Product Style:
Rectangular
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1563-FB – Frequently Asked Questions

1) Does the Emtek 1563 multi point trim include the multi point lock body, or just the handles and plates?
Trim only. The 1563 set gives you the plates and handles for a swinging patio door; the multi point mortise lock box is a separate purchase. If the door already has a working multi point lock in the edge, this dresses it. If you're starting from bare, you still need the lock body and the strike work in the frame.
2) What is Door Configuration #5 on Emtek multi point trim and how do I know my door matches it?
Configuration #5 on the 1563 is the layout with a Euro profile cylinder sitting below the handle, and a non-keyed thumbturn on the inside. Center to center between the cylinder hole and the handle spindle is 3-5/8 inches. Measure your existing door from the middle of the cylinder to the middle of the handle hub: if it's 3-5/8 inches with the cylinder below the lever, the config matches. If your cylinder sits above the handle or the spacing is different, a different configuration is needed.
3) Will Emtek 1563 trim fit a Therma-Tru or Kolbe patio door?
Both are on the reference list Emtek gives for this trim, along with Crestline, Hoppe, Hurd, KFV, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Vetter, Willmar, Windsor and Weathershield. Those brands used lock bodies that match the Configuration #5 layout: Euro cylinder below the handle at 3-5/8 inch center to center. Confirm the measurement on your own door, because a single manufacturer often shipped more than one lock prep over the years.
4) Is the Emtek 1563 keyed from the outside, or does it only lock from inside?
The 1563 is the non-keyed version: thumbturn on the inside, no key cylinder supplied. It's the trim to use on a door you lock from indoors, or where a separate deadbolt or a keyed unit elsewhere on the opening handles key access. If you need to unlock the multi point from outside with a key, order the keyed version of this trim in the same configuration instead.
5) What do I have to specify when ordering Emtek 1563 sandcast bronze multi point trim?
Four things. Finish, from Flat Black Bronze, Medium Bronze or Tumbled White Bronze. Lever style, which is required and runs Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. Handing, right or left. And your door thickness, which is an optional entry but worth giving so the spindle and screw pack suit the slab.
6) My multi point patio door handles sag. Does the Emtek 1563 fix that?
Yes, that's exactly what the spring assist in this trim addresses. Every Emtek multi point trim now ships with a spring assist that returns the lever to horizontal and stops the drooping handle you get once the lock body's own spring tires out. Worth knowing if you're replacing older Emtek trim purely because of sag.
7) What size are the plates on the Emtek 1563 and will they cover my old trim's screw holes?
Rectangular plates measuring 2 x 10 inches. That's a fairly slim escutcheon, so if you're coming off a wider or longer plate, expect exposed holes or finish shadow on the slab. Hold a 2 by 10 inch template over the existing prep before you strip the old trim.
8) Can I mix Emtek sandcast bronze levers with this multi point trim, and will the finishes match my other door hardware?
Any Emtek sandcast bronze lever can be ordered on the 1563 plates, which is how you match a patio door to entry sets and passage levers elsewhere in the house. It's part of the Sandcast Bronze collection, and the three finishes here (Flat Black Bronze, Medium Bronze, Tumbled White Bronze) are the sandcast finishes, not the plated ones. Sandcast bronze is a living finish, so spec the same finish code across the openings you want to read as a set.
9) What kind of cylinder do I need for a Configuration #5 Emtek multi point trim?
Euro profile. The prep in the 1563 plate takes a Euro cylinder positioned below the handle, not a standard round mortise cylinder. Since this is the non-keyed trim, the outside cylinder isn't part of the set, so if your lock body needs one, order a Euro profile cylinder in a length that suits your door thickness and a finish that matches the trim.
10) Is Emtek 1563 multi point trim suitable for a commercial building entrance?
It's residential hardware. Emtek classes the 1563 as residential sandcast bronze trim for swinging patio doors, and it's mechanical only, with no electronic option. For a commercial entrance under a code-driven spec, or anything needing access control, this isn't the right family.
