Emtek 1672 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$381.00
$304.80

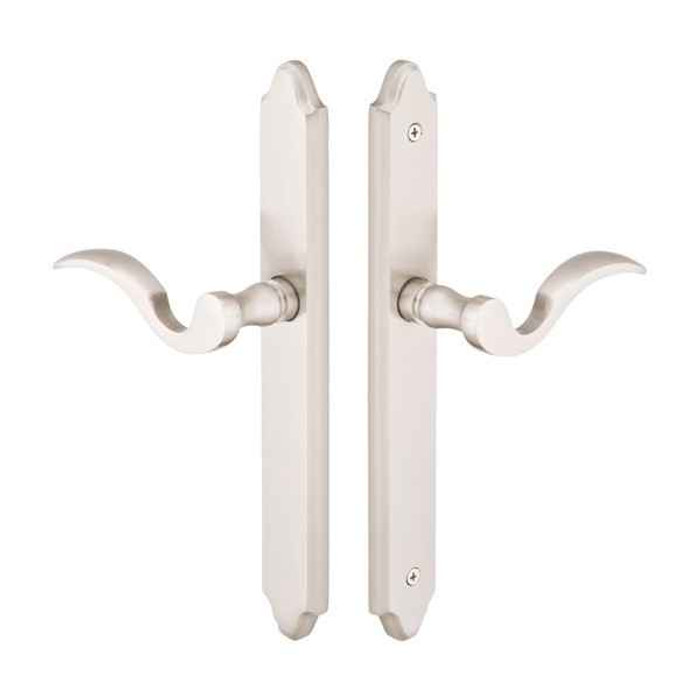

Emtek Emtek 1672 Multi Point Lock Trim (Door Config #6) - Brass Plates, Concord Style (1.5" x 11"), Non-Keyed Passage EMTEK-1672

Emtek 1672 Multi Point Lock Trim (Door Config #6) - Brass Plates, Concord Style (1.5" x 11"), Non-Keyed Passage

(No reviews yet) Write a Review

Model: 1672-US15
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass



Emtek 1672 Multi Point Lock Trim (Door Config #6) - Brass Plates, Concord Style (1.5" x 11"), Non-Keyed Passage

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Below Handle
Door Configuration:
#6
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Milgard, Pella
Series:
Concord
Theme:
American Classic
Keyed Function:
Non-Keyed
Lock Function:
Passage
MAP Policy:
Yes
Product Model:
1672
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed Passage
Product Size:
1-1/2" x 11"
Cylinder Classification:
American
Product Style:
Concord
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 1672-US15 – Frequently Asked Questions

1) Does the Emtek 1672 multi point trim include the mortise lock body?
No. The 1672 is trim only, so you get the two 1-1/2 x 11 inch Concord plates and the handles. The multi point mortise lock box is a separate purchase, and you will need the gearbox that already suits your door before the trim does anything. Buy the lock body to match your door manufacturer's multi point prep.
2) What does Door Configuration #6 mean on this Emtek multi point trim?
Configuration #6 describes how the plate is laid out: non-keyed passage with a cylinder position below the handle, using an American style cylinder preparation. On a passage set there is no key cylinder supplied, so the trim operates the multi point latching only, with no keyed locking from outside. Match the configuration number to the multi point door you have, since each Emtek configuration drills and aligns differently.
3) Will this Emtek Concord trim fit my Milgard or Pella swinging patio door?
Milgard and Pella are the reference door manufacturers for this Concord multi point trim, so it is built around that style of swinging patio door. Confirm the door's multi point configuration matches #6 (cylinder opening below the handle) and that your door falls in the 1-3/8 to 1-3/4 inch thickness range before ordering.
4) Do I have to specify handing when ordering the Emtek 1672?
Yes, handing is required. You pick right hand or left hand, and it is not field reversible on the order form, so determine handing from the outside of the door before you order. You also have to choose a lever style, and door thickness can be entered if your door is not a standard 1-3/8 to 1-3/4 inch slab.
5) Will the existing 2-1/8 inch bore and 2-3/8 inch backset on my door work with this trim?
Yes. The Concord trim works with a 2-1/8 inch cross bore and an adjustable backset of either 2-3/8 or 2-3/4 inches, which covers both common residential backsets. The latch faceplate can be round or square corner to suit the mortise already cut in the door edge.
6) What is the center-to-center measurement on the Emtek 1672 plates?
3-5/8 inches center to center, measured on the Concord 1-1/2 x 11 inch plate. That spacing has to line up with the lever spindle and cylinder holes already bored in your patio door, so check it against the existing plate you are removing.
7) What finishes does the Emtek 1672 Concord multi point trim come in?
Eight brass finishes: Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Polished Brass Lifetime (US3), Unlacquered Brass (US3NL), and French Antique (US7). If you are matching other openings in the house, note that Unlacquered Brass is a living finish that will patina, while the Lifetime Polished Brass holds its shine.
8) Can I use any Emtek brass lever with this multi point trim?
Any Emtek brass lever can be ordered on the 1672 Concord plates, and the lever choice is a required selection. The range spans the L-Square, T-Bar and R-Bar bar levers in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble, plus cast styles like Athena, Luzern, Milano, Wembley, Rope, Rustic and Arts and Crafts. That lets you carry the same lever pattern from the patio door to the interior doors.
9) My old patio door lever sags. Does this Emtek trim fix that?
It addresses it directly. Every Emtek multi point lock trim now ships with a spring assist that returns the lever to the neutral horizontal position, which is what eliminates the droop you get on worn patio door handles.
10) Is the Emtek 1672 Concord trim suitable for a commercial entrance?
It is classified for residential use, built for swinging patio doors in homes. For a commercial storefront or a code-regulated egress opening, this is the wrong category of hardware and you should be looking at commercial grade locksets rather than residential multi point patio trim.
11) What is the plate shape and styling of the Concord trim?
Concord is a rectangular 1-1/2 by 11 inch plate in solid brass, part of Emtek's American Classic design theme. The long narrow plate suits patio door stiles where a wide rosette will not fit.
