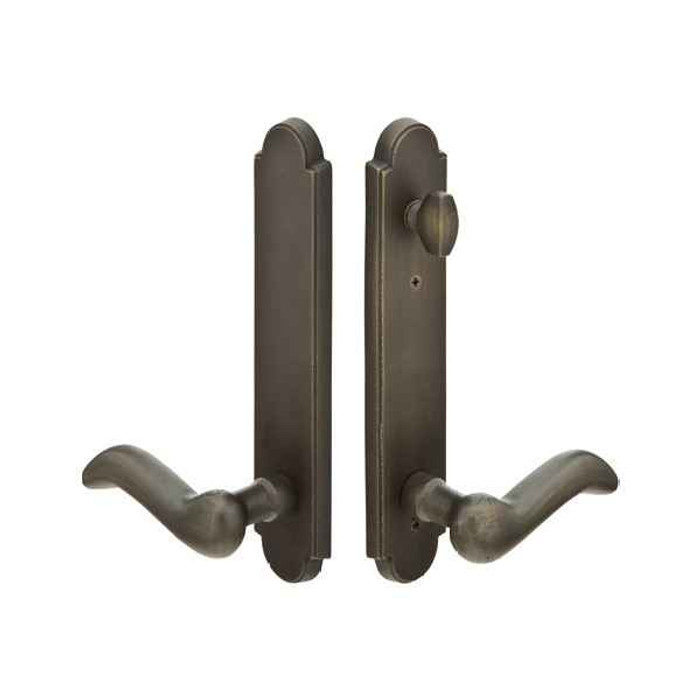

Emtek Emtek 1726 Multi Point Lock Trim (Door Config #7) - Sandcast Bronze Plates, Modern Style (2" x 10"), Non-Keyed American Style Thumbturn Inside, Fixed Handles EMTEK-1726

Emtek 1726 Multi Point Lock Trim (Door Config #7) - Sandcast Bronze Plates, Modern Style (2" x 10"), Non-Keyed American Style Thumbturn Inside, Fixed Handles

(No reviews yet) Write a Review

Model: 1726-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #7
  • Plate Size: 2" x 10"
  • Material: Sandcast Bronze
  • Plate Style: Modern
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1726 Multi Point Lock Trim (Door Config #7) - Sandcast Bronze Plates, Modern Style (2" x 10"), Non-Keyed American Style Thumbturn Inside, Fixed Handles

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#7
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Trillenium (formerly W&F Manufacturing)
Series:
Arched
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1726
(CTC) Center-to-Center:
6"
Product Function:
Non-Keyed American Style Thumbturn Inside, Fixed Handles
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Modern
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1726-FB – Frequently Asked Questions

1) What is the plate size and hole spacing on the Emtek 1726 trim?
The plates measure 2 x 10 inches in the Modern style, with 6 inch center-to-center spacing. That CTC is the number to check against your existing door prep, since the trim has to line up with the lock body's spindle and cylinder holes.
2) What does Door Configuration #7 mean on Emtek multi point trim?
Configuration #7 on the 1726 is the non-keyed arrangement: a thumbturn on the interior, fixed handles on both sides, and no key cylinder. Emtek's multi point trims are sold by configuration number because the plate is drilled for a specific combination of cylinder, thumbturn and handle. If your door needs a key from the outside, #7 is the wrong configuration.
3) Do I have to specify handing when ordering Emtek 1726 trim?
Yes, handing is required. You pick right hand or left hand at order time, along with a lever style and, optionally, your door thickness. Because the handles are fixed and the thumbturn sits on the inside plate, a wrong-hand order is not something you can flip in the field.
4) Where does the cylinder sit on Emtek multi point trim, and does the 1726 take one?
Emtek's cylinder position for this plate is above the handle, and the cylinder classification is American. The 1726 itself is the non-keyed version, so no cylinder goes in it. If you want a keyed exterior with an American style cylinder above the handle, you need a keyed configuration rather than this one.
5) What lever styles can I put on the Emtek 1726 sandcast bronze trim?
Ten sandcast bronze levers pair with it: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. Lever choice is a required selection, and it stays within the Sandcast Bronze collection so the plate and lever match.
6) Is the Emtek 1726 trim rated for commercial openings?
It is a residential product. Emtek classifies the 1726 as residential swinging patio door hardware, so for a school, hospital or other commercial entry with a cycle or grade requirement, look at a commercial mortise or multi point line instead.
7) Does the fixed handle mean the door won't latch when I pull it shut?
Fixed handles on the 1726 do not retract anything. The handle is a pull, and securing the door is done through the multi point mortise lock, thrown from the inside thumbturn. On a swinging patio door that works well for a secondary or inactive leaf; if you need a lever that retracts a latch every time you pass through, choose a configuration with operating levers instead.
8) What finishes does the Emtek 1726 sandcast bronze multi point trim come in?
Three: Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB). These are living sandcast bronze finishes, so expect some variation piece to piece, which is normally the point when you are matching a rustic or heavy-timber entry.
9) Is the Emtek 1726 an electronic or smart lock trim?
No electronics here. The 1726 is purely mechanical trim for a multi point mortise lock, operated by the interior thumbturn, with fixed handles on either side.
