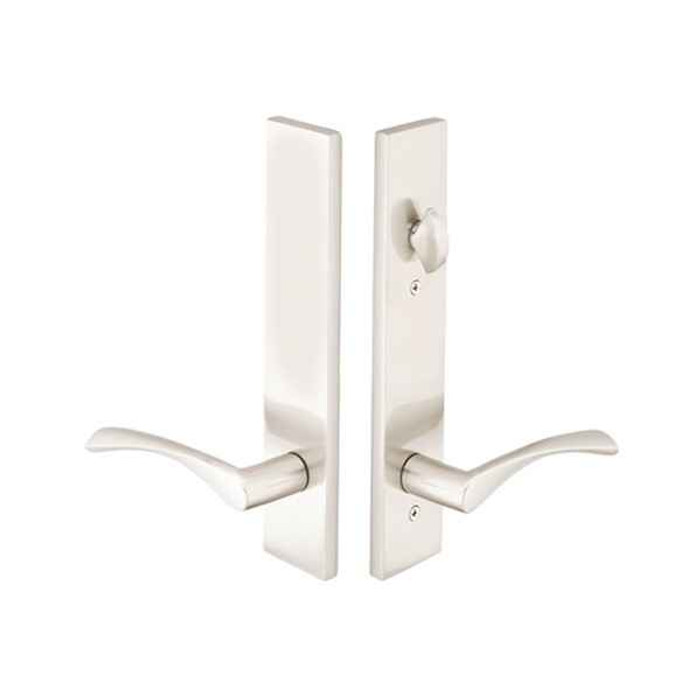

Emtek 17B6 Multi Point Lock Trim (Door Config #7) - Brass Plates, Modern Style (2" x 10"), Non-Keyed American Style Thumbturn Inside, Fixed Handles

No. The 17B6 is trim only, so you get the 2 x 10 inch plates and the handles. The multi point mortise lock box has to be sourced separately, along with the levers you pick for the set.

Configuration #7 describes where the operating parts sit on the plate: a non-keyed set with an American style thumbturn on the inside, fixed (non-rotating) handles, and the cylinder position above the handle. If the multi point lock already in your door puts its cylinder below the handle or needs a keyed outside lever, #7 is the wrong configuration.

The 17B6 works to a 6 inch center-to-center spacing between the handle and the cylinder/thumbturn opening, with the cylinder opening above the handle. Emtek references this trim against Trillenium (formerly W&F Manufacturing) doors. Measure your door's existing CTC: if it isn't 6 inches, the plate won't land on the prep.

There is no key cylinder in the 17B6 set. Locking is done by an American style thumbturn on the interior, so it's for swinging patio doors where you don't need to key from outside. If you need key access from the exterior, choose a keyed configuration instead.

Yes, handing is required: right hand (RH) or left hand (LH). You also have to pick a lever style, and you can enter your door thickness. Handing is set by the plate and thumbturn orientation, so getting it wrong means a return.

Seven: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL), and Satin Brass (US4). The plates and handles are brass, so they'll match other Emtek brass-collection hardware on adjacent openings in the same finish code.

Any Emtek brass lever can be paired with it. The list runs from the modern L-Square, T-Bar and R-Bar bars in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble, through Athena, Helios, Hermes, Luzern, Poseidon, Stuttgart, Argos, Aston, Basel, Breslin, Dumont, Freestone, Geneva, Hercules, Mercury, Myles, Sion, Spencer and Triton, to traditional options like Cortina, Milano, Turino, Coventry, Rope, Rustic, Santa Fe, Wembley, Arts and Crafts and Hammered. Note the handles are fixed, not rotating.

It's classified residential. The 17B6 is swinging patio door hardware for houses and multi-family units. For a commercial storefront or a fire-rated opening, use commercial-grade hardware instead.

The plate measures 2 by 10 inches, so you need at least 2 inches of flat stile face for it to sit properly. On very narrow-stile aluminum or steel patio doors, measure the stile before committing.

No electronics. It's purely mechanical trim, mechanically operated by the thumbturn inside, with no wiring, battery, or keypad involved.

The Modern plate is a clean rectangular 2 by 10 inch brass plate in Emtek's contemporary look. Paired with an L-Square or T-Bar lever it reads squarely modern; with Cortina or Turino it leans transitional.
