Emtek 17B3 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$381.00
$304.80

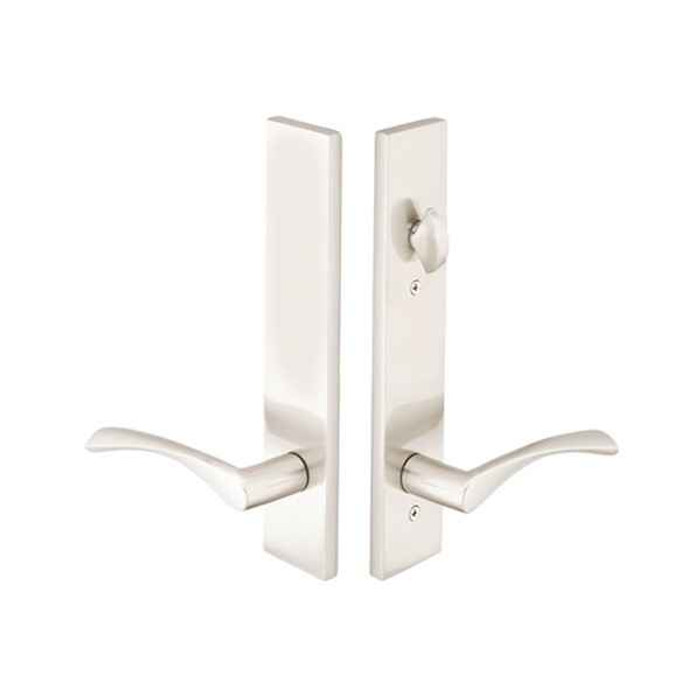

Emtek Emtek 17B3 Multi Point Lock Trim (Door Config #7) - Brass Plates, Modern Style (2" x 10"), Non-Keyed American Style Thumbturn Inside EMTEK-17B3

Emtek 17B3 Multi Point Lock Trim (Door Config #7) - Brass Plates, Modern Style (2" x 10"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 17B3-US19
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #7
  • Plate Size: 2" x 10"
  • Material: Brass
  • Plate Style: Modern
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 17B3 Multi Point Lock Trim (Door Config #7) - Brass Plates, Modern Style (2" x 10"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Above Handle
Door Configuration:
#7
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Trillenium (formerly W&F Manufacturing)
Series:
Modern
Theme:
Contemporary
MAP Policy:
Yes
Product Model:
17B3
(CTC) Center-to-Center:
6"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Modern
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 17B3-US19 – Frequently Asked Questions

1) What door configuration does Emtek 17B3 fit, and how do I know my patio door matches?
It is built for Emtek Door Configuration #7, with the cylinder hole above the handle and 6 inch center-to-center between the handle and the cylinder position. Measure the existing prep in the door: if the spacing between the lever spindle and the cylinder hole is not 6 inches with the cylinder above, a different configuration number is needed.
2) Will the 17B3 trim work on a Trillenium (formerly W&F Manufacturing) swinging patio door?
Trillenium, formerly W&F Manufacturing, is the reference door manufacturer for this trim, so the configuration #7 prep is drawn from their swinging patio door preparation. Confirm the door's cylinder is above the handle at 6 inch center-to-center and the prep matches.
3) If the 17B3 is non-keyed, how does the door lock from the outside?
The 17B3 function is non-keyed with an American style thumbturn on the inside. The thumbturn throws and retracts the multi point lock from inside; there is no key cylinder in this trim, so it suits a patio or rear door where outside key access is not wanted. If you need key entry from outside, order a keyed version of the same configuration instead.
4) Do I have to specify handing when ordering Emtek 17B3 trim?
Yes, handing is a required selection, right hand or left hand. Lever style is also required, and there is a field for door thickness so the spindle and screw pack suit your door.
5) Can I pick my own lever design with this multi point trim?
Yes. The 17B3 plates can be paired with any Emtek brass lever, and the lever choice is made at order time. Options run from the modern L-Square, T-Bar and R-Bar families in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble, through Athena, Helios, Hermes, Luzern, Poseidon and Stuttgart, to traditional shapes like Cortina, Milano, Turino, Rope, Ribbon and Reed, Santa Fe and Arts and Crafts.
6) Are the plates on the 17B3 solid brass, and what finishes can I match to the rest of the house?
Plates are brass, from Emtek's Brass collection. Seven finishes are offered: Oil Rubbed Bronze (US10B), Lifetime Polished Nickel (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL) and Satin Brass (US4). Unlacquered brass is a living finish and will patina over time.
7) My patio door levers sag. Does this Emtek trim fix that?
Every Emtek multi point lock trim now ships with a spring assist that returns the lever to neutral, which is what stops handles drooping over time. That is built into the trim, no separate part to add.
8) What size are the 17B3 escutcheon plates, and will they cover my old trim?
The plates measure 2 x 10 inches in the Modern style, a squared contemporary profile. If the outgoing trim was a wider or longer plate, some of the old screw holes or finish shadow may sit outside that footprint, so check the existing plate against 2 x 10 before removing it.
9) Is the Emtek 17B3 multi point trim suitable for a commercial entrance?
It is classified as residential hardware, intended for swinging patio doors in homes. For a commercial entry with high traffic and code requirements, specify a graded commercial lockset rather than residential multi point patio trim.
10) Is there an electronic or keypad version of this trim?
No, the 17B3 is fully mechanical. It is non-keyed with an inside thumbturn and carries no electronics, so no wiring, power transfer or battery pack is involved in the install.
