Emtek 11B3 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$381.00
$304.80

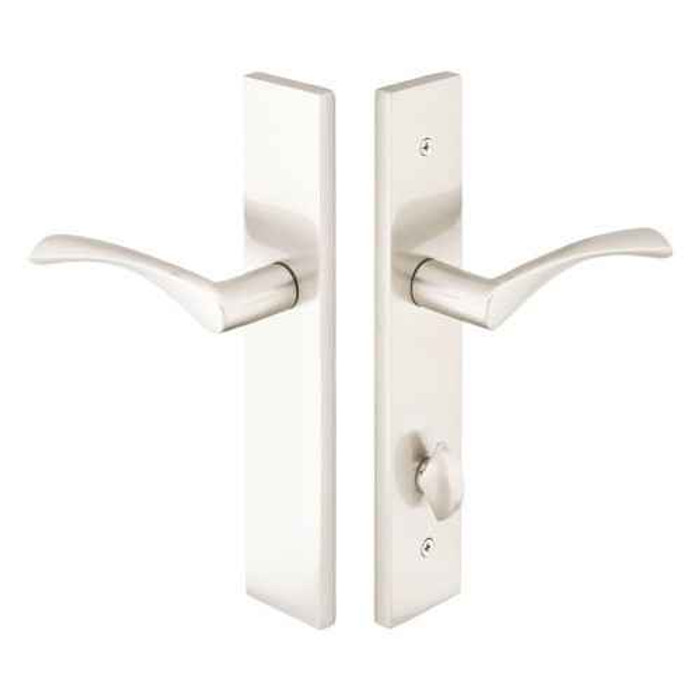

Emtek Emtek 11B3 Multi Point Lock Trim (Door Config #1) - Brass Plates, Modern Style (2" x 10"), Non-Keyed American Style Thumbturn Inside EMTEK-11B3

Emtek 11B3 Multi Point Lock Trim (Door Config #1) - Brass Plates, Modern Style (2" x 10"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 11B3-US19
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #1
  • Plate Size: 2" x 10"
  • Material: Brass
  • Plate Style: Modern
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 11B3 Multi Point Lock Trim (Door Config #1) - Brass Plates, Modern Style (2" x 10"), Non-Keyed American Style Thumbturn Inside


  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Below Handle
Door Configuration:
#1
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster, Superior
Series:
Modern
Theme:
Contemporary
MAP Policy:
Yes
Product Model:
11B3
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Modern
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 11B3-US19 – Frequently Asked Questions

1) What is the center-to-center spacing on the Emtek 11B3 trim, and will it line up with my existing multi point lock?
3-5/8 inch center to center between the handle and the cylinder hole, with the cylinder sitting below the handle. That is the number to measure on your door before ordering: if your gearbox faceplate puts the cylinder at a different spacing, the plate holes will not line up. Emtek lists it as Door Configuration #1.
2) Which patio door brands does the Emtek 11B3 Configuration #1 trim fit?
Emtek references this configuration against Atrium, G-U, KML by Andersen, Andersen, Marvin Integrity, Paddock Lockmaster and Superior doors. Match the configuration and the 3-5/8 inch center-to-center to the gearbox already in your door rather than going by the door brand alone, since a single manufacturer can use more than one gear.
3) Is the Emtek 11B3 keyed on the outside, and what operates it from inside?
Not keyed. The 11B3 is the non-keyed version, with a thumbturn on the inside to throw and retract the multi point lock. If you need a key cylinder on the exterior of that patio door, this is the wrong trim and you want the keyed version of the same plate configuration instead. The cylinder cutout follows the American classification with the cylinder below the handle.
4) What do I have to specify when ordering Emtek 11B3 multi point trim?
Three things beyond the finish: lever style, handing, and door thickness. Handing is right hand or left hand and is required, so determine the swing at the door before you order. Door thickness is entered as a text value so Emtek can build the spindle to your slab. Finish choices are Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL) and Satin Brass (US4).
5) Can I put any Emtek lever on the 11B3 multi point trim?
Any Emtek brass lever works with these plates. That covers the modern shapes (L-Square, T-Bar and R-Bar in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble), the sculpted levers like Athena, Helios, Hermes, Poseidon and Triton, and traditional profiles such as Cortina, Milano, Merrimack, Rope, Rustic, Santa Fe and Wembley. The plates themselves are brass in the Modern style.
6) How big are the plates on the Emtek 11B3, and will they cover the holes from my old patio door handle?
The plates measure 2 x 10 inches. That is a narrow escutcheon, so it covers a bored handle and cylinder prep sitting on the same 3-5/8 inch centers but will not hide wider scars from a different plate footprint. Measure the existing plate before you commit.
7) Is the Emtek 11B3 trim suitable for a commercial building or an apartment complex?
Emtek rates this trim residential. For multi-family units and single family patio doors it is the right class of hardware; for a commercial entrance carrying public traffic you want a Grade 1 or Grade 2 commercial device instead. It is also purely mechanical, with no electronic or access control option.
8) Do Emtek multi point lever handles sag over time?
Each multi point trim set now ships with the Spring Assist function, which returns the lever to neutral and keeps it from drooping. That is the usual complaint on patio door levers, and it is handled inside the plate rather than by the gearbox.
9) Which Emtek finish should I pick to match unlacquered brass hardware that is already patinating?
Order Unlacquered Brass (US3NL). It is left uncoated so it darkens with handling and settles in with existing living-finish brass. If you want the brass tone to stay put instead, Satin Brass (US4) is the stable option. Polished Nickel is a lifetime finish, and the rest of the range covers Oil Rubbed Bronze, Satin Nickel, Flat Black and Polished Chrome.
