Emtek Emtek 13B3 Multi Point Lock Trim (Door Config #3) - Brass Plates, Modern Style (2" x 10"), Non-Keyed American Style Thumbturn Inside EMTEK-13B3

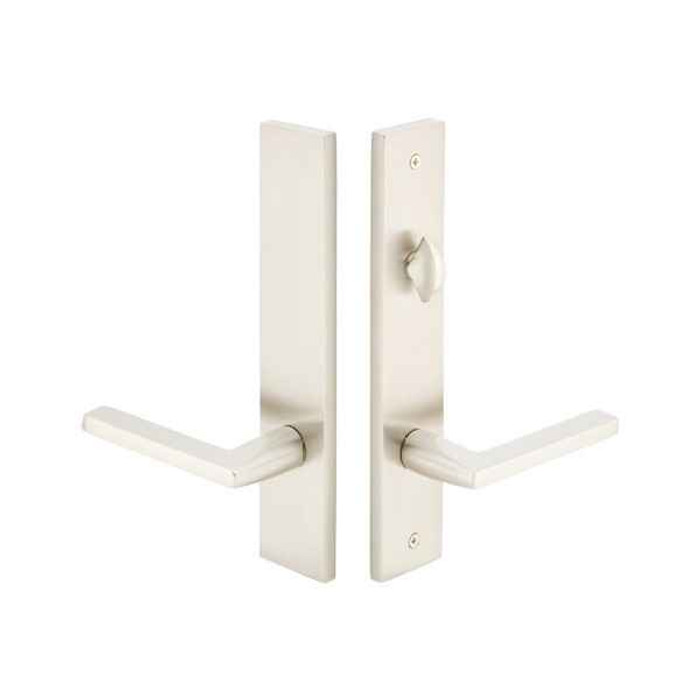

Emtek 13B3 Multi Point Lock Trim (Door Config #3) - Brass Plates, Modern Style (2" x 10"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 13B3-US19
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #3
  • Plate Size: 2" x 10"
  • Material: Brass
  • Plate Style: Modern
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 13B3 Multi Point Lock Trim (Door Config #3) - Brass Plates, Modern Style (2" x 10"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Above Handle
Door Configuration:
#3
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Andersen
Series:
Modern
Theme:
Contemporary
MAP Policy:
Yes
Product Model:
13B3
(CTC) Center-to-Center:
4-1/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Modern
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 13B3-US19 – Frequently Asked Questions

1) Does the Emtek 13B3 multi point trim include the mortise lock body?
No. The 13B3 is trim only: you get the 2 x 10 inch brass plates and the handles. The multi point mortise lock box is a separate purchase, so if your patio door does not already have a working multi point lock in it, you need that gearbox too.
2) What does Door Configuration #3 mean on Emtek multi point trim?
Configuration #3 describes the hole pattern of the plate, and it is the part that has to match your existing multi point lock. On the 13B3 the cylinder position is above the handle and the center-to-center spacing is 4-1/8 inches. If your door's gearbox has a different spindle-to-cylinder spacing or puts the cylinder below the lever, a different Emtek configuration number is the one you want.
3) Will Emtek 13B3 trim fit an Andersen patio door?
Andersen is the reference door manufacturer for this configuration, so the 13B3 is set up to land on Andersen swinging patio door prep with the cylinder above the lever and 4-1/8 inch center-to-center. Confirm your gearbox matches that spacing before you order, since Andersen has used more than one multi point prep over the years.
4) Is the 13B3 keyed, and how does the inside operate?
It is non-keyed. The inside is an American style thumbturn, which throws and retracts the multi point lock by hand rather than by key. Choose this when the door is not a primary entry that needs key control from outside; if you need an outside key cylinder, order a keyed configuration instead.
5) What do I have to specify when ordering Emtek 13B3 trim?
Three things beyond the plate finish. Handing, right or left, is required. Lever style is required and there are 51 to pick from, including the L-Square, T-Bar and R-Bar bar levers in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble, plus cast levers like Athena, Luzern, Poseidon, Cortina, Milano, Rope and Arts and Crafts. Door thickness is an optional entry field, worth filling in so the spindle suits your slab.
6) What finishes does the Emtek 13B3 modern brass trim come in?
Seven: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL) and Satin Brass (US4). Plates and levers are brass, so if you are matching other Emtek brass-collection hardware on the same elevation the US codes line up.
7) Can I use any Emtek brass lever with this multi point trim?
Yes, any Emtek brass lever can be ordered on the 13B3 plates. That is how you keep a patio door consistent with the interior levers in the same house, since the plate is Modern style, 2 x 10 inches, and the lever choice is independent of it.
8) Do Emtek multi point levers sag over time?
Spring Assist is built into every current Emtek multi point trim, including the 13B3. It returns the lever to horizontal after use, which is the fix for the drooping handle problem common on heavy patio door levers.
9) Is this Emtek trim suitable for a commercial building entrance?
No. The 13B3 is residential-rated swinging patio door hardware, not commercial door hardware. For a storefront or a commercial egress opening you want a Grade 1 commercial lockset or exit device, not multi point patio trim.
10) Is the 13B3 an electronic or smart lock?
Purely mechanical. There is no electronic option on the 13B3, no wiring, no keypad, and nothing to lose when the power drops. Operation is the lever plus the inside thumbturn.
