Emtek Emtek 12B3 Multi Point Lock Trim (Door Config #2) - Brass Plates, Modern Style (2" x 10"), Non-Keyed American Style Thumbturn Inside EMTEK-12B3

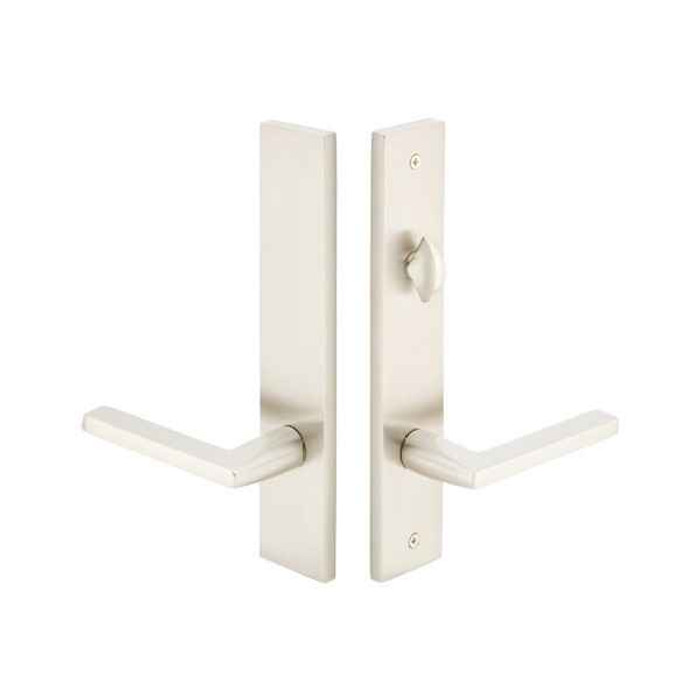

Emtek 12B3 Multi Point Lock Trim (Door Config #2) - Brass Plates, Modern Style (2" x 10"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 12B3-US19
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #2
  • Plate Size: 2" x 10"
  • Material: Brass
  • Plate Style: Modern
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 12B3 Multi Point Lock Trim (Door Config #2) - Brass Plates, Modern Style (2" x 10"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Above Handle
Door Configuration:
#2
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
BiltBest, G-U, Hurd (Energy Saver), Andersen
Series:
Modern
Theme:
Contemporary
MAP Policy:
Yes
Product Model:
12B3
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
2" x 10"
Cylinder Classification:
American
Product Style:
Modern
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 12B3-US19 – Frequently Asked Questions

1) Does the Emtek 12B3 multi point trim include the multi point lock itself?
No. The 12B3 is trim only: brass plates and handles. The multi point mortise lock box is not included, so you need the lock body already in the door or ordered separately. Handing (right or left) and lever style are both required choices when you order, and there is a door thickness field to fill in.
2) What is the center-to-center spacing on the Emtek 12B3 trim plate?
3-5/8 inches between the handle and the cylinder hole, with the cylinder position above the handle. That spacing plus the Door Configuration #2 hole pattern is what has to match the prep already in your patio door, so measure the existing plate before ordering. The plate itself is 2 x 10 inches.
3) Which patio door brands does the Emtek Configuration #2 multi point trim reference?
Emtek lists Configuration #2 against BiltBest, G-U, Hurd (Energy Saver), and Andersen doors. Confirm your door's existing prep matches the 3-5/8 inch center-to-center and the cylinder-above-handle layout, since a single manufacturer may have used more than one pattern over the years.
4) Is the Emtek 12B3 keyed, and how does the inside lock work?
Not keyed. The 12B3 is the non-keyed version: a thumbturn on the interior operates the lock, with no cylinder key on the outside. If you need a key from the exterior, you want a keyed Configuration #2 trim instead. The plate is still bored American style with the cylinder position above the handle, so it carries the same hole layout as its keyed counterpart.
5) Do I need to know the handing before ordering Emtek multi point lock trim?
Yes, handing is a required选 choice, right hand or left hand, and it is not field-reversible on this trim. Stand outside the door: if the hinges are on your right it is right hand. Getting it wrong puts the thumbturn and lever geometry backwards.
6) Can I pick my own lever on the Emtek 12B3 patio door trim?
Yes, and you have to. Lever style is a required selection, with 51 brass levers offered, from the Modern L-Square, T-Bar and R-Bar families (faceted, hammered, knurled, Tribeca, straight knurled, white marble) through named levers like Athena, Poseidon, Stuttgart, Milano, Rope, Rustic and Arts and Crafts. Any brass lever in the Emtek range can be ordered on this trim.
7) Do the Emtek multi point handles sag over time?
The 12B3 trim includes Emtek's Spring Assist, which returns the lever to the neutral horizontal position and stops the droopy-handle problem that plagues older multi point patio hardware. It is built into the trim, nothing extra to order.
8) What finishes does the Emtek 12B3 come in, and will it match my other Emtek door hardware?
Seven finishes: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL), and Satin Brass (US4). These are the standard Emtek brass-collection finish codes, so a US15 patio trim matches US15 entry sets and levers elsewhere in the house. Unlacquered brass is the one to think twice about, it is meant to patina.
9) Is Emtek 12B3 trim suitable for a commercial building entrance?
It is residential hardware, catalogued by Emtek for residential use, and it is swinging patio door trim rather than a commercial entrance lock. For a multi-family or commercial opening that needs a graded lockset, this is the wrong direction, look at a Grade 1 or Grade 2 mortise or cylindrical lock instead.
10) Is the Emtek 12B3 an electronic or smart lock trim?
No electronics. The 12B3 is purely mechanical trim, thumbturn inside and no keypad, motor or wiring. Nothing to power and nothing to fail when the batteries die.
11) What is the Emtek 12B3 plate made of, and how does the Modern style look?
Solid brass plates and levers throughout, in a Modern, contemporary plate profile measuring 2 x 10 inches. The narrow 2 inch width suits the slim stiles typical of swinging patio doors, and the square-edged Modern plate pairs naturally with the L-Square, T-Bar and R-Bar lever families.
