Emtek Emtek 15B3 Multi Point Lock Trim (Door Config #5) - Brass Plates, Modern Style (2" x 10"), Non-Keyed American Style Thumbturn Inside EMTEK-15B3

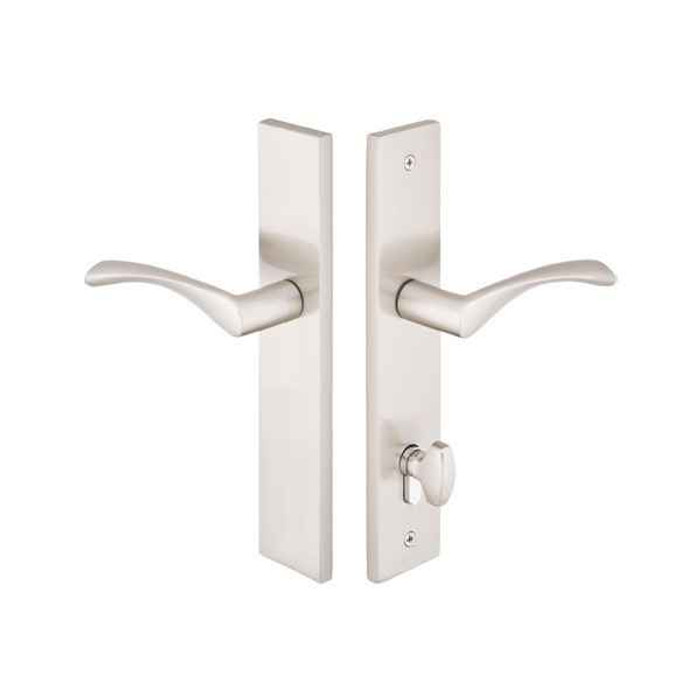

Emtek 15B3 Multi Point Lock Trim (Door Config #5) - Brass Plates, Modern Style (2" x 10"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 15B3-US19
From the Brass Collection
$381.00
$304.80
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$381.00
$304.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #5
  • Plate Size: 2" x 10"
  • Material: Brass
  • Plate Style: Modern
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 15B3 Multi Point Lock Trim (Door Config #5) - Brass Plates, Modern Style (2" x 10"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Below Handle
Door Configuration:
#5
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor, Weathershield
Series:
Modern
Theme:
Contemporary
MAP Policy:
Yes
Product Model:
15B3
(CTC) Center-to-Center:
3-5/8"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
2" x 10"
Cylinder Classification:
Euro Profile
Product Style:
Modern
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 15B3-US19 – Frequently Asked Questions

1) Does the Emtek 15B3 multi point trim include the multi point lock itself?
No. The 15B3 is trim only: plates and handles. The multi point mortise lock box is not included, so you'll need the existing lock in the door or a separate lock box to complete the opening.
2) What is Door Configuration #5 on an Emtek multi point trim, and how do I know my door matches?
Configuration #5 refers to the handle-and-cylinder layout on the plate. On the 15B3 the Euro profile cylinder position sits below the handle, and the center-to-center spacing between handle and cylinder is 3-5/8 inches. Measure that spacing on your existing multi point door prep; if it isn't 3-5/8 inches with the cylinder below the handle, a different configuration is needed.
3) Will the Emtek 15B3 trim fit my Therma-Tru or Kolbe patio door?
Emtek lists the 15B3 multi point trim as referencing these door manufacturers: Crestline, Hoppe, Hurd, KFV, Kolbe & Kolbe, Lincoln, Loewen, Paddock Lockmaster, Peachtree, Semco, Sierra, Oknoplast, Pacific, Signature, Simpson, Therma-Tru, Vetter, Willmar, Windsor and Weathershield. Match your door's prep to Configuration #5 with 3-5/8 inch center-to-center spacing and the cylinder below the handle.
4) Is the 15B3 keyed from the outside, or does it only have a thumbturn?
It's the non-keyed version. Inside you get an American style thumbturn; there is no key cylinder supplied with the trim. If you need key access from the exterior, choose the keyed version of this trim instead and pair it with a Euro profile cylinder, since that is the cylinder format this configuration takes.
5) Do I have to specify handing when ordering Emtek multi point lock trim?
Yes, handing is a required selection: right hand or left hand. You also have to pick a lever style, and there is a field for door thickness so the spindle and fasteners suit your slab. Get the handing wrong and the lever and thumbturn orientation won't work on your door.
6) What lever styles can I put on the Emtek 15B3 brass trim?
Any Emtek brass lever works with it. The choices run from Modern shapes like L-Square, T-Bar and R-Bar in Faceted, Hammered, Knurled, Tribeca, Straight Knurled and White Marble, through Athena, Helios, Hermes, Luzern, Poseidon and Stuttgart, on to traditional patterns such as Cortina, Milano, Turino, Coventry, Rope, Rustic, Santa Fe, Wembley, Arts and Crafts and Hammered.
7) What finishes does the Emtek 15B3 come in, and will it match my other Emtek hardware?
Seven finishes: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL) and Satin Brass (US4). Those are Emtek's standard brass-collection finish codes, so they line up with Emtek levers, knobs and entry sets elsewhere in the house.
8) Will the 15B3 plate cover my old trim's screw holes?
The plates measure 2 x 10 inches in the Modern style, and they're solid brass. That's a narrow, rectangular footprint, so anything from a wider or longer previous plate will show. Compare against the plate you're removing before you pull it off the door.
9) Is Emtek multi point trim rated for commercial use?
No. Emtek lists the 15B3 as residential hardware, intended for swinging patio doors in homes. For a commercial entry under traffic, specify a Grade 1 commercial lockset rather than residential multi point trim.
10) Does the Emtek 15B3 lever sag over time like older patio door handles?
It shouldn't. Emtek now builds a spring assist into every multi point lock trim, which returns the lever to horizontal and is there specifically to stop the droop that older patio handles develop.
11) Is the Emtek 15B3 an electronic or smart lock trim?
No, it's purely mechanical. There's no electronics in the 15B3 trim, no wiring and no power requirement: the lever drives the multi point lock and the inside thumbturn throws it manually.
