Emtek 1763 Multi Point Lock Tr...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$424.00
$339.20
Emtek Emtek 1763 Multi Point Lock Trim (Door Config #7) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Non-Keyed American Style Thumbturn Inside EMTEK-1763

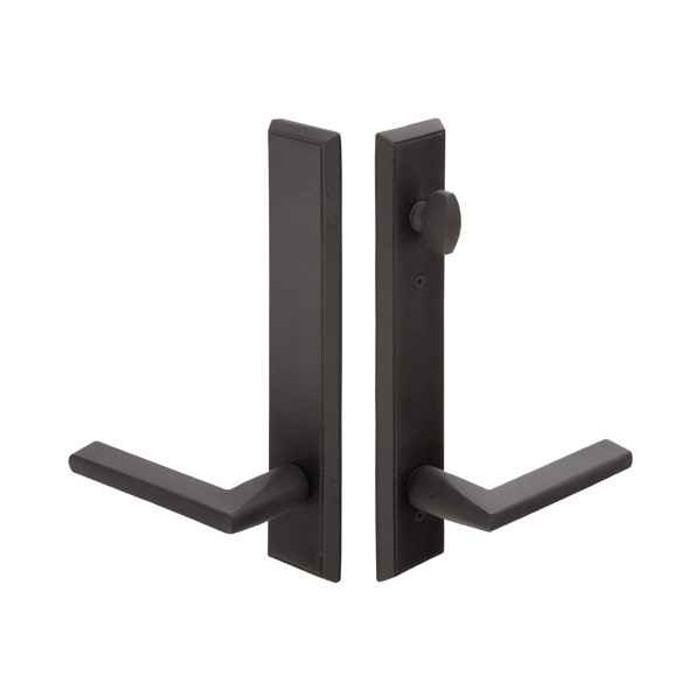

Emtek 1763 Multi Point Lock Trim (Door Config #7) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Non-Keyed American Style Thumbturn Inside

(No reviews yet) Write a Review

Model: 1763-FB
From the Sandcast Bronze Collection
$424.00
$339.20
Selected Finish is
Selected Lever Style is
Selected Handing is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$424.00
$339.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like



Specifications:

  • Door Configuration: Configuration #7
  • Plate Size: 2" x 10"
  • Material: Sandcast Bronze
  • Plate Style: Rectangular
  • Keyed: No
  • Function: Non-Keyed – Thumbturn Inside
  • Product Type: Multi Point Lock Trim



Emtek 1763 Multi Point Lock Trim (Door Config #7) - Sandcast Bronze Plates, Rectangular Style (2" x 10"), Non-Keyed American Style Thumbturn Inside

  • Can be ordered with any Sandcast Bronze Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.
Manufacturer Resources

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Sandcast Bronze
Cylinder Position:
Above Handle
Door Configuration:
#7
Electronic:
No
Keyed:
No
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
Trillenium (formerly W&F Manufacturing)
Series:
Rectangular
Theme:
Rustic Living
MAP Policy:
Yes
Product Model:
1763
(CTC) Center-to-Center:
6"
Product Function:
Non-Keyed American Style Thumbturn Inside
Product Size:
2" x 10"
Cylinder Classification:
American
Product Shape:
Rectangular
Product Style:
Rectangular
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 1763-FB – Frequently Asked Questions

1) Does the Emtek 1763 multi point trim include the multi point mortise lock body?
No. The 1763 is trim only: the set includes the plates and handles, and the multi point mortise lock box has to be ordered separately. Plan on sourcing the lock body that matches your door's multi point prep, then dressing it with this trim.
2) What door prep does Emtek Door Configuration #7 trim fit?
Configuration #7 places the cylinder above the handle with 6 inch center-to-center spacing between the cylinder hole and the handle hub, and the plates measure 2 x 10 inches. Match those against the holes already bored in the door slab: if your door was prepped for a different Emtek configuration, the cylinder location will not line up. The 1763 is built for doors prepped by Trillenium (formerly W&F Manufacturing).
3) Is the Emtek 1763 keyed, or do I need a separate cylinder and key?
The 1763 is the non-keyed version: thumbturn on the interior, no key cylinder supplied on the exterior. The prep is set up for an American style cylinder positioned above the handle, so if you need this opening to lock by key you want the keyed variant of the trim rather than adding a cylinder to this one. For a patio door that is secured from inside, or a secondary door in a pair, the thumbturn is the usual call.
4) Do I have to specify handing when ordering Emtek 1763 multi point trim?
Yes, handing is a required choice: right hand or left hand. The thumbturn and lever orientation are built to the hand you pick, so a wrong call means the trim goes back. Stand outside the door, look at the hinges; hinges on your right is right hand.
5) Will Emtek 1763 trim work on a commercial entrance or a multifamily corridor door?
No. The 1763 is a residential multi point trim for swinging patio doors, not a commercial opening. For an apartment corridor door or any fire rated or high traffic commercial leaf, you want a Grade 1 or Grade 2 commercial lockset instead, not patio door multi point trim.
6) Which levers can I put on Emtek 1763 sandcast bronze trim?
Any Sandcast Bronze lever from the collection pairs with these plates, and lever style is a required selection at order: Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton, or Yuma. The lever ships as part of the set, so you are not buying handles separately.
7) What finishes does Emtek sandcast bronze multi point trim come in?
Three: Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB). These are sandcast bronze, a solid cast material rather than plated, so the finish is part of the casting and it will patina with handling and weather over time. If you are matching other openings in the house, order the same finish code rather than eyeballing it.
8) Do I need to give the door thickness when I order this multi point patio door trim?
Door thickness is an optional entry on the 1763 order, and it is worth filling in. Multi point patio door slabs vary, and the spindle and cylinder length have to cross the actual slab. Measure the door edge and enter that number rather than assuming.
9) Will this Emtek trim fix a lever that sags or droops on a patio door?
It should. The 1763 includes Emtek's spring assist, which returns the lever to neutral and stops the handle from sagging, a common complaint on older multi point trim where the lever slowly drops on its own. Note this is trim only, so if the droop is coming from a worn gearbox rather than the handle assembly, the multi point lock body is a separate part.
10) Is the Emtek 1763 rectangular plate a good match for a rustic or craftsman style door?
The plate is a plain rectangle, 2 x 10 inches, in solid sandcast bronze. That casting has visible surface texture rather than the smooth face of a forged or plated plate, which is why it lands in rustic and lodge style entries. Paired with a Durango or Teton lever it reads heavier; Aurora or Montrose keeps it closer to transitional.
11) Can I use the Emtek 1763 on an electronic or smart lock patio door?
No. The 1763 is mechanical trim with a manual interior thumbturn and no electronics, wiring, or motor drive. If the patio door needs keypad or app control, this is the wrong trim family.
