Emtek 1L1M51 Multi Point Lock Trim (Large Multi Point Entry Set) - Brass Plates, Melrose Style (2.9" x 17.5"), Keyed with Euro Cylinder Hub BELOW Handle

Trim only. The 1L1M51 set gives you the plates, handles, and the euro cylinder, but the multi point mortise lock box is a separate purchase. If your door already has a working multi point lock body in it and you are changing the look, this is the right part. If you are starting from a bare door, you need the lock body too.

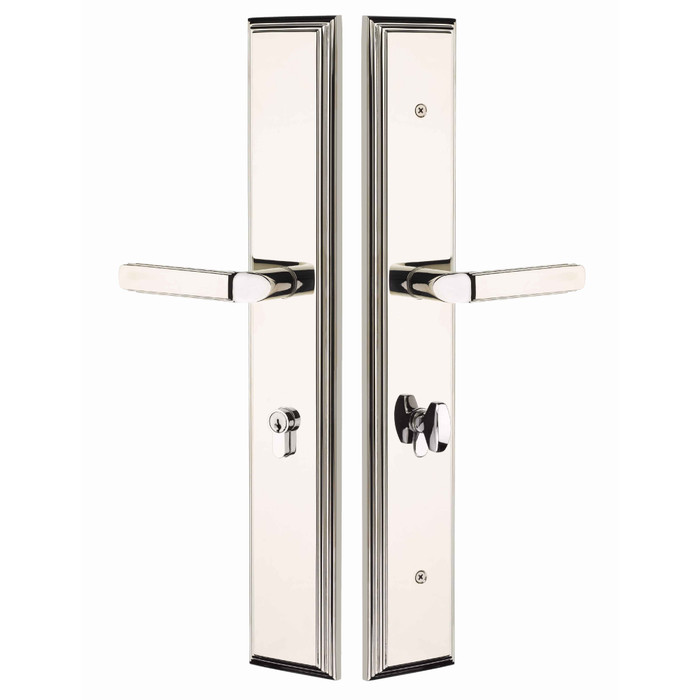

The Melrose plate measures 2.9 x 17.5 inches, which is the large multi point format. The handle-to-cylinder center-to-center spacing is 3-5/8 inches, and that is the number that decides whether it lands on your existing prep. If your current trim has the same 3-5/8 inch CTC and a smaller plate, the Melrose will cover it. If the CTC is different, the holes will not line up no matter how big the plate is.

Below the handle. That is the whole point of the 1L1M51 designation, and it has to match your lock body, because the gearbox determines where the cylinder hub sits. Order the below-handle trim for a below-handle gearbox only. Get this backwards and the cylinder tailpiece will not engage anything.

G-U is the referenced door manufacturer for this trim, so it is built to suit G-U multi point hardware in the large configuration with the cylinder below the handle. Confirm two things on your existing gearbox before ordering: the 3-5/8 inch handle-to-cylinder center-to-center, and that the cylinder hub is on the lower side.

Nine: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Polished Brass Lifetime (US3), Unlacquered Brass (US3NL), and French Antique (US7). Worth knowing for an exterior door: Unlacquered Brass is a living finish and will patina with weather and handling, while the Lifetime finishes hold their appearance. Pick accordingly if the door faces the elements.

The lever is a required choice and the range is wide, over fifty options including the L-Square, T-Bar, and R-Bar families in Faceted, Hammered, Knurled, Tribeca, Straight Knurled, and White Marble, plus named levers like Athena, Poseidon, Stuttgart, Milano, Rope, Rustic, Santa Fe, and Arts and Crafts. Any brass lever can go on this trim. That is what lets you match a patio door to the interior levers already in the house.

Yes, it carries a spring assist that returns the lever to neutral, which is the cure for a drooping handle on a heavy patio door. Sag usually comes from the lever weight overcoming a worn gearbox spring, so if you are replacing tired trim on an otherwise sound multi point lock, this is the upgrade that solves it.

Keying to code is offered at no charge, and you can order keyed alike or keyed different. If you have several patio or entry doors and want one key to work all of them, specify keyed alike on the order and supply your key code if you are matching an existing system. Bear in mind this is a euro profile cylinder, so it keys to euro cylinders, not to a standard KIK or rim cylinder on your front door.

It is a residential grade trim. For single family, custom home, or high end multi family patio doors it is the right product. For a commercial opening that has to meet ANSI grade or fire requirements, look at a commercial mortise or exit device line instead. It is also purely mechanical, with no electronic or access control option.

Size and coverage. The 1L1M51 is the large configuration, a 2.9 by 17.5 inch Melrose plate that runs a long way up and down the stile. Standard multi point sets use a shorter plate. Choose large when your door prep or previous hardware left a tall footprint to cover, or when you want the proportion of a long plate on a full lite patio door. The functional specs, 3-5/8 inch center-to-center and euro cylinder below the handle, are what actually have to match your gearbox.

There is a door thickness field on the order, and it is worth filling in. The spindle and cylinder length have to suit the door slab, and a patio door can run thicker than a standard interior door. Measure the slab at the edge and state the actual number rather than assuming.
