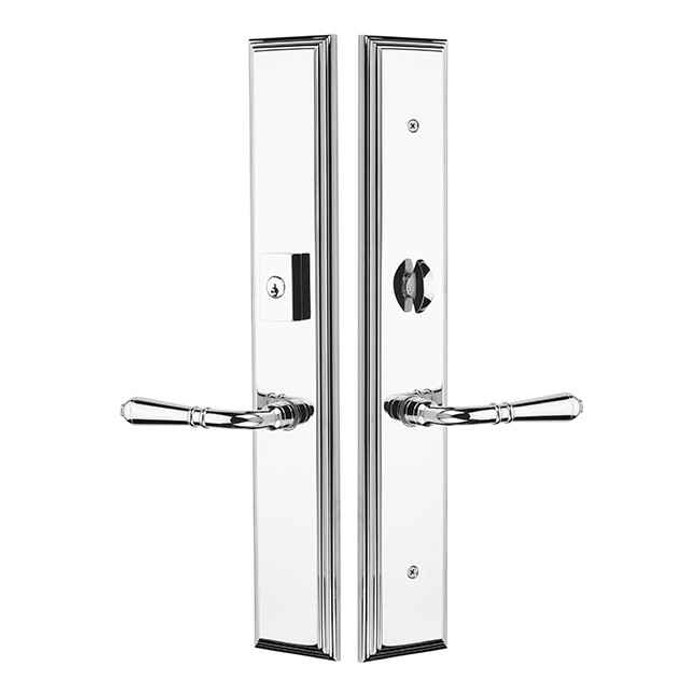

Emtek 1L1M21 Multi Point Lock Trim (Large Multi Point Entry Set) - Brass Plates, Melrose Style (2.9" x 17.5"), Keyed with American Cylinder Hub ABOVE Handle

Trim only. The 1L1M21 set gives you the plates, the handles, and the cylinder. The multi point mortise lock box itself is a separate purchase, so if you are starting from a bare door you still need the lock body sized for that door before this trim does anything. On a door that already has a multi point mechanism in it, this is the dress-up half you are replacing.

3-5/8 inches center to center between the cylinder and the handle hub, with the cylinder sitting above the handle. That spacing and that cylinder position are what have to match the gearbox already in your door. If your existing multi point lock puts the cylinder below the handle, or the spacing is anything other than 3-5/8, this plate will not line up with the prep.

G-U is the reference door manufacturer for this trim, so it is built to that gearbox layout at 3-5/8 inch center to center with the cylinder above the handle. Confirm your door's gearbox matches that spacing and cylinder position and you are on the right part. Swinging patio doors are the application this set is made for.

Yes, and it is not optional. Right hand or left hand has to be chosen at order time. Stand outside the door: if the hinges are on your right it is a right hand door. Getting this wrong on a multi point trim means the lever and the plate face the wrong way and the set is not usable on that opening.

Two keyways: Schlage (the standard) and Weiser WR5. Pick the one your building already uses and the key you carry works this door too. Keying is handled at order time, keyed alike across a group of doors or keyed different, and you can supply a key code to have it cut to an existing system. That matters if you are running a fleet of units and do not want a second key on the ring.

Single cylinder. Key on the outside, thumbturn or lever operation on the inside, so nobody is hunting for a key to get out. It takes an American cylinder, which is the standard round mortise-style cylinder rather than a Euro profile, so a Euro cylinder from a European patio door will not swap into it.

The Melrose plates measure 2.9 x 17.5 inches. That is the large multi point format, so if you are replacing existing trim, the old plate footprint needs to be at least that size or you will see the outline of the previous hardware and any unfilled screw holes around the edge.

Spring assist is built into the trim now. It returns the lever to horizontal after each use, which is the fix for the drooping handle you get on older multi point sets once the gearbox spring tires. On a rental or a high traffic entry that is the difference between hardware that still looks right in year three and one you get a call about.

Lever choice is open across the Emtek brass lever range and is a required selection, everything from the L-Square, T-Bar and R-Bar families in faceted, hammered, knurled, Tribeca, straight knurled and white marble, through to named levers like Athena, Helios, Hermes, Luzern, Poseidon, Stuttgart, Argos, Basel, Geneva, Milano, Turino, Coventry, Rope, Rustic, Santa Fe, Wembley, Arts and Crafts and Hammered. Nine finishes: Oil Rubbed Bronze US10B, Polished Nickel Lifetime US14, Satin Nickel US15, Pewter US15A, Flat Black US19, Polished Chrome US26, Polished Brass Lifetime US3, Unlacquered Brass US3NL and French Antique US7. Matching the rest of the openings in a house or a building is a matter of picking the same finish code.

Solid brass, both the material and the substrate, from Emtek's brass collection. That is what lets Unlacquered Brass US3NL be offered as a finish, since it patinas over time rather than wearing through a plating. It is a residential-rated entry set, so specify it for houses and multi-family units rather than a high-cycle commercial door.

Mechanical only, no electronics. Key on the outside, lever on the inside, driven by the multi point gearbox in the door. If you need code or app entry on a multipoint patio door, this is the wrong family and you want an electronic multi point trim instead.
