Emtek Emtek 1L1R21 Multi Point Lock Trim (Large Multi Point Entry Set) - Brass Plates, Modern Rectangular Style (2.5" x 17.5"), Keyed with American Cylinder Hub ABOVE Handle EMTEK-1L1R21

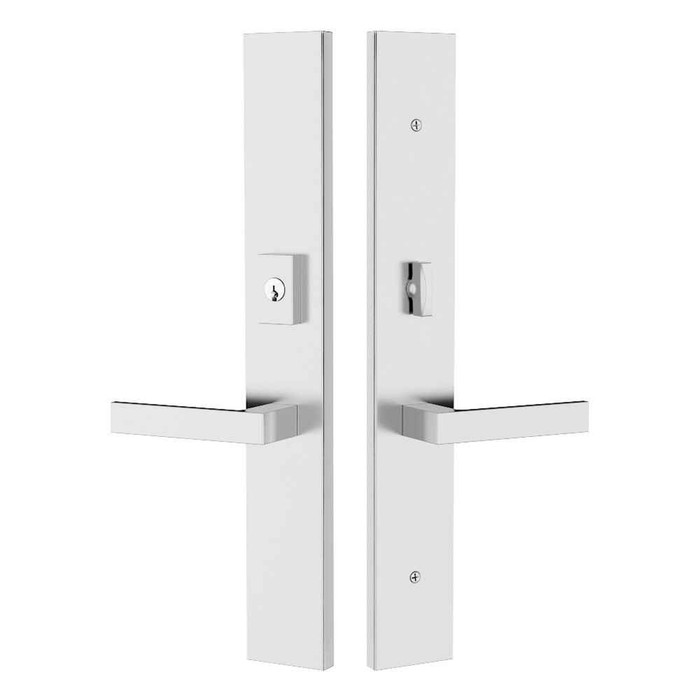

Emtek 1L1R21 Multi Point Lock Trim (Large Multi Point Entry Set) - Brass Plates, Modern Rectangular Style (2.5" x 17.5"), Keyed with American Cylinder Hub ABOVE Handle

(No reviews yet) Write a Review

Model: 1L1R21-US19
From the Brass Collection
$684.00
$547.20
Selected Finish is
Selected Lever Style is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$684.00
$547.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 1L1R21 Multi Point Lock Trim (Large Multi Point Entry Set) - Brass Plates, Modern Rectangular Style (2.5" x 17.5"), Keyed with American Cylinder Hub ABOVE Handle


  • Can be ordered with any Brass Levers
  • Swinging Patio Door Hardware. Set includes Plates, Handles, and Cylinder
  • Multi Point Mortise Lock Box not included. Trims Only
  • Each Multi Point Lock Trim now includes the Spring Assist function which returns the lever to the neutral position and eliminates sagging handles.

Manufacturer Resources

Emtek LookBook

Product Specs

Subcategory:
Multi Point Lock Trim
Product Group:
Mechanical Locks
Commercial/Residential:
Residential
Product Type:
Multi Point Lock Trim
Product Subgroup:
Multi Point Lock Trim
Collection:
Brass
Cylinder Position:
Above Handle
Door Configuration:
Large Multi Point
Electronic:
No
Keyed:
Yes
Keyed Function:
Single Cylinder
Lock Function:
Single Cylinder
Lock Type:
Multi Point Trim
Ref. Door Manufacturer(s):
G-U
Series:
Modern Rectangular
Theme:
Contemporary
MAP Policy:
Yes
Product Model:
1L1R21
(CTC) Center-to-Center:
3-5/8"
Product Function:
Keyed with American Cylinder
Product Size:
2.5" x 17.5"
Cylinder Classification:
American
Product Shape:
Rectangular
Product Style:
Modern Rectangular
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 1L1R21-US19 – Frequently Asked Questions

1) Will Emtek 1L1R21 trim fit a G-U multi point lock?
G-U is the reference multi point gear the 1L1R21 trim is built to, and the handle hub to cylinder spacing is 3-5/8 inches center-to-center with the cylinder hole ABOVE the lever. Measure your existing door: if the gearbox spindle and cylinder holes are 3-5/8 inches apart and the keyhole sits above the handle, this trim lines up. If the cylinder falls below the handle on your door, this is the wrong configuration.
2) Can I key the Emtek 1L1R21 to match my Schlage or Kwikset house keys?
The cylinder is an American style mortise cylinder and ships in either a Schlage keyway or a Weiser WR5 keyway. WR5 is the Kwikset/Weiser family keyway, so pick that side if the rest of the house runs Kwikset keys. Keyed alike and keyed different are both offered at no charge, and there is a key code field on the order so an existing bitting can be matched.
3) Do I need to specify handing when ordering Emtek multi point trim?
Yes, and it is required on the order. Left hand and right hand are both built, and multi point trim is not field reversible the way a bored lock is. Stand outside the door: if the hinges are on your left it is left hand, hinges on the right is right hand.
4) Is the Emtek 1L1R21 single cylinder or double cylinder?
Single cylinder. Key on the outside, thumbturn side on the interior, which is what most residential patio openings want and what avoids the egress problem a double cylinder creates on a door next to glass.
5) Can I pick my own lever style on the Emtek 1L1R21 trim set?
Lever choice is required at order time and any Emtek brass lever can go on it, from the modern L-Square, T-Bar and R-Bar shapes in faceted, hammered, knurled, Tribeca, straight knurled and white marble, through the cast levers like Athena, Helios, Hermes, Luzern, Poseidon, Stuttgart, Cortina, Milano, Turino, Coventry and Rope. That is how you match the patio door to the interior doors already in the house.
6) My patio door lever droops. Does new Emtek multi point trim fix a sagging handle?
It does. Every Emtek multi point trim set now ships with a spring assist that returns the lever to horizontal and stops the sag, which is the usual failure on an older swinging patio door where the gearbox spring has given up. The gearbox itself is not part of this set, so if the multi point rods are also not throwing, that is a separate lock body problem.
7) Should I use multi point trim or a standard entry handleset on a swinging patio door?
Different jobs. This trim drives a multi point gearbox, which throws latches at the head and sill as well as the middle, and it is what a swinging patio or French door needs to stay flat against weatherstripping. A standard bored or mortise handleset only latches at one point and will not engage the top and bottom rods. If your door has only a single latch prep, you want a regular entry set, not multi point trim.
8) What finishes does the Emtek modern rectangular multi point trim come in, and do they match other Emtek brass hardware?
Seven: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL) and Satin Brass (US4). All are from Emtek's brass collection and the plates are solid brass, so they sit alongside the rest of the Emtek brass line rather than a plated zinc part that will read slightly off.
9) Is the Emtek 1L1R21 rated for commercial use?
Emtek lists it as residential hardware. For a multi-family or commercial opening that sees real traffic, a residential multi point trim set is the wrong specification and a commercial grade mortise or exit device is the right direction.
10) Is there a keypad or electronic version of the Emtek 1L1R21?
No. The 1L1R21 is a mechanical key-and-lever set with no electronic option; access is by the American cylinder only.
