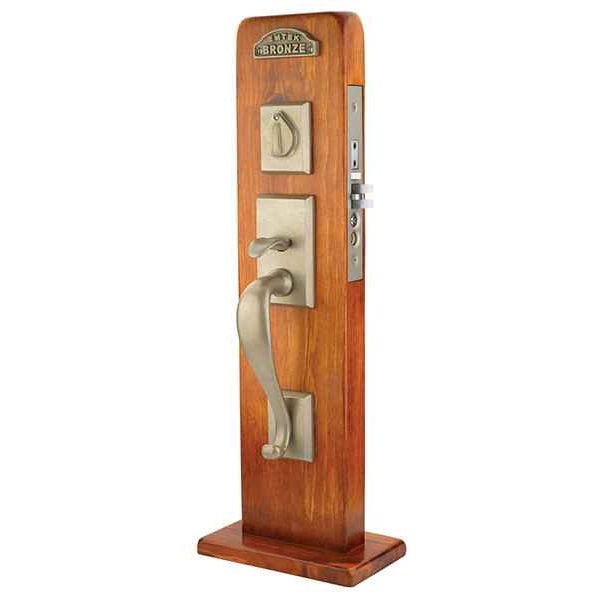

Emtek 3024 Rectangular Sectional Sandcast Bronze Mortise Entrance Handleset - Dummy

Yes, and there is no reversible option. The 3024 is built left hand or right hand, and handing is required on all Emtek mortise sets. Stand outside the door: if the hinges are on your left it's LH, hinges on the right it's RH. Order the wrong hand and the lever or knob throw sits backwards on the door.

It comes as a complete set, but you have to pick the interior trim when you order. The 3024 takes any Emtek sandcast bronze knob or lever: levers include Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma; knobs include Butte, Egg, Round, Winchester, Bristol, Hampton, Lowell, Windsor, Astoria, Diamond, Georgetown, Modern Disc, Modern Square, Old Town and Providence. That selection is required, not optional.

Standard mortise prep per ANSI A115.1, with a backset of 2-1/2 or 2-3/4 inches. If your door is already prepped for a standard mortise lock body at either of those backsets, the 3024 drops into that pocket. A door bored for a tubular handleset will not take it, that's a different prep entirely.

The Emtek 3024 Rectangular Sandcast Bronze handleset is a dummy function set, meaning it is non-keyed surface trim with no latch operation. Two Weslock alternatives carry the same dummy function: the Weslock 2815 Hillcrest Dummy Handleset with New Heaven Lever in the Premiere Essentials Series, and the Weslock 6695 Belmont Dummy Handleset with Impresa Knob in the Elegance Series. Both Weslock sets list a door thickness range of 1-3/8 inch to 2 inch, while the Emtek 3024 is built for 1-3/4 inch doors as standard with thicker doors specified at order. The Emtek is sandcast bronze; inside trim is chosen from the Sandcast Bronze knob and lever styles.

The Emtek 3024 is non-keyed dummy trim, so it will not secure an active entry door. For a keyed opening, the Weslock 1411 Traditionale Colonial Handleset with Eleganti Knob is a single cylinder keyed entry set listed for 1-3/4 inch to 2-1/4 inch doors, and the Weslock 2810 Hillcrest with Hudson Knob is a single cylinder set for 1-3/8 inch to 2 inch doors. On the Schlage Residential side, the F60 Addison with Accent Lever is a Grade 2 keyed entry handleset for 1-3/8 inch to 1-3/4 inch doors.

Three sandcast bronze finishes: Flat Black Bronze (FB), Medium Bronze (MB), and Tumbled White Bronze (TWB). All three are available in either hand. These are living finishes from Emtek's Sandcast Bronze collection, so if you're matching other openings in the same house, stay inside the same collection rather than mixing with Emtek's brass or stainless lines.

The 3024 carries a UL 180 minute fire rating, with UL function listed as ANSI F20 or F13. Note it's catalogued for residential use, so for a commercial fire-rated opening check the full opening assembly requirements before specifying it.

Match the dummy with a keyed mortise entrance handleset in the same Rectangular sandcast bronze styling and finish, so the pair reads identically. Keyed Emtek mortise entrance sets use the Schlage C keyway, which means they can be keyed into an existing Schlage C system on the property. The dummy itself is non-keyed, so nothing to key on that side.

A dummy set like the Emtek 3024 is fixed surface trim with no latch. If you want non-keyed but latching operation, the Schlage Residential JE285 Barcelona style handleset with Seville lever is a Grade 2 non-keyed entry function set for 1-3/8 inch to 1-3/4 inch doors. The Schlage JI18/19 interconnected set is passage function with a keyed deadbolt, also Grade 2 and 1-3/8 inch to 1-3/4 inch.

Both are mortise-family handleset trim, but the functions differ. The Emtek 3024 is a dummy set, non-keyed, with no latch or bolt operation. The Baldwin Estates 6542 Tremont mortise trim is offered in entrance function in single cylinder and double cylinder versions, both listed for 1-3/4 inch doors. The Emtek 3024 is also 1-3/4 inch standard and requires handing specified left or right, with a Schlage C keyway noted for the keyed versions of the mortise platform.

The Emtek 3024 requires a standard mortise door prep to ANSI A115.1 and handing specified. If the door is not mortised, tubular handlesets avoid that prep: the Sure-Loc Alta is a tubular handleset with adjustable backset, and the Sure-Loc Aspen, Coral, and Madison are also handleset-function sets with adjustable backset. The Pamex FS7P31 Lexington single cylinder handleset is an entry-function option listed for 1-3/8 inch to 1-3/4 inch doors.

No - the Emtek 3024 is a non-electronic dummy handleset. For electronic operation with handleset trim, the Kwikset 815SCEHFL-CP913CNT San Clemente pairs a Halifax lever interior with a contemporary SmartCode keypad electronic deadbolt for 1-3/4 inch doors, and the Yale Real Living Assure line offers the BYRD226NRRX standalone touchscreen deadbolt and the BYRD226CBARX Wi-Fi and Bluetooth touchscreen deadbolt, both with the Ridgefield handleset and listed for 1-3/4 inch to 2-1/4 inch doors.

The Emtek 3024 is 1-3/4 inch standard and a thicker door must be specified at order, with door thickness entered as an option. Sets that publish ranges above 1-3/4 inch include the Weslock 1411 Traditionale at 1-3/4 inch to 2-1/4 inch, the Yale Assure BYRD226NRRX and BYRD226CBARX Ridgefield handleset sets at 1-3/4 inch to 2-1/4 inch, and the Deltana 810871 Montego handleset at 1-3/8 inch to 2 inch.

The mortise platform behind the Emtek 3024 is specified with a Schlage C keyway, though the 3024 itself is a non-keyed dummy. Among keyed alternatives, Kwikset uses SmartKey: the 687AMD SMT Amador and 687BW SMT Belleview are single cylinder exterior-only handlesets with SmartKey, and the 687AMD SMC version is SmartKey with an SC1 keyway. All three are Grade 3 and listed for 1-3/4 inch doors.

Solid sandcast bronze, both material and substrate. Sandcasting gives the slightly irregular surface texture that suits rustic and timber-frame entries, and because the finish is in the metal rather than a plating, wear shows as patina instead of exposing a different base color underneath.

Sectional. The Emtek 3024 has a separate upper grip plate and lower trim rather than a single full-length backplate, which means less surface area on the stile and a lighter look on narrower entry doors. The plate profile is rectangular.

The Emtek 3024 is a sandcast bronze handleset, offered in Flat Black Bronze, Medium Bronze, and Tumbled White Bronze finishes. For solid brass construction, Deltana offers entry-function handlesets in the Hanover 803871B, St. Ann 815871, and Kingston 825871 series. Baldwin's Wesley handleset is an entrance-function set available with either the Alcott or Carnaby knob for interior trim.
