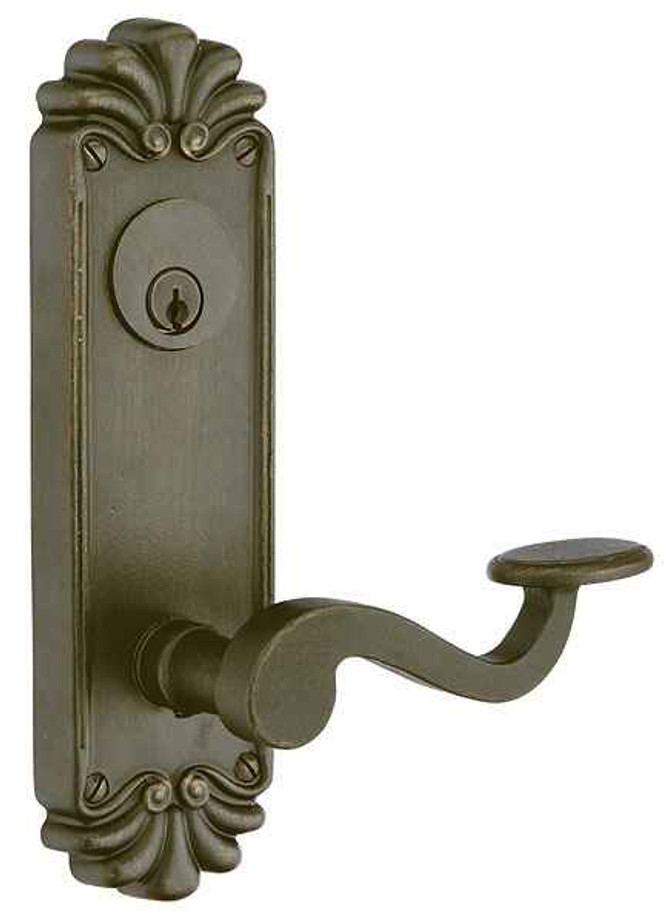

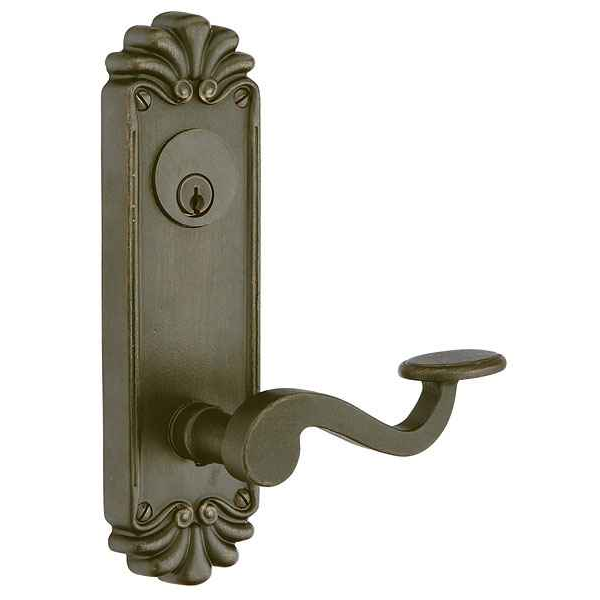

Emtek 6020 Tuscany #16 3-5/8" C-to-C Keyed Sideplate Lockset, Passage/Single Keyed - Lost Wax Cast Bronze Tubular

Emtek 6020 Tuscany #16 3-5/8" C-to-C Keyed Sideplate Lockset, Passage/Single Keyed - Lost Wax Cast Bronze Tubular

(No reviews yet) Write a Review

Model: 6020-FB
From the Tuscany Bronze Collection
$395.00
$316.00
Selected Finish is
Selected Knob or Lever for the inside trim is
Selected Handing is
Selected Backset is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$395.00
$316.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 6020 #16 3-5/8" C-to-C Keyed Sideplate Lockset, Passage/Single Keyed - Lost Wax Cast Bronze Tubular

  • Can be ordered with any Sandcast Bronze Knob or Lever Style
  • Sold as complete set. Includes Knob or Lever, Latch and Strike Plate
  • One Standard 2-1/8" Door Prep
  • Standard latch is for 2-3/8" backset. Specify 2-3/4" backset if required
  • Handing required for Leverset



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass

Product Specs

Subcategory:
Keyed Sideplate Locksets
Collection:
Tuscany Bronze
Product Type:
Sideplate Locksets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Keyed Function:
Single Cylinder
Lock Type:
Tubular
Keyed:
Yes
Lock Function:
Entry
Series:
Tuscany
Theme:
Tuscany
Electronic:
No
MAP Policy:
Yes
Product Model:
6020
(CTC) Center-to-Center:
3-5/8"
Product Function:
Entry
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 6020-FB – Frequently Asked Questions

1) Will the Emtek 6020 Tuscany sideplate lockset fit my existing door prep?
It uses one standard 2-1/8 inch cross bore, so it drops onto a door already bored for a standard tubular lockset. The latch backset is adjustable between 2-3/8 and 2-3/4 inches, and it covers doors 1-3/8 to 1-3/4 inches thick. The one thing to check is the sideplate itself: the 6020 is a 3-5/8 inch center-to-center plate, so the face of the door needs to be clear for that plate above and below the bore.
2) Do I need to know the handing for this Emtek Tuscany sideplate lockset?
Yes, handing is a required selection, right hand or left hand. Emtek calls out handing specifically for leversets, since a lever has to point back toward the frame. Stand outside the door: if the hinges are on your right, it's a right hand door.
3) What are the other sideplate lever lockset options if I need a double cylinder or a dummy set?
The Emtek 6020 is single cylinder only, keyed outside with a turn inside. If you need a keyed cylinder on both sides, Omnia's D12036AC is a double cylinder deadbolt lever lockset with a sideplate design in solid brass. For a non-functioning matching set on a fixed or inactive leaf, the Omnia D12036PD is a double dummy deadbolt lever lockset with plates at 5-1/2 inch center to center. Note that the Omnia plates are 5-1/2 inch center to center, not 3-5/8, so they won't line up with the Emtek plate on adjacent doors.
4) What is the closest equivalent to the Emtek 6020 Tuscany keyed sideplate lockset from another brand?
The Omnia D12036A single cylinder deadbolt lever lockset is the nearest peer. Like the Emtek 6020, it is a keyed sideplate-style lockset operated by a single cylinder, so the outside is keyed and the inside turns without a key. The Emtek 6020 is a lost wax cast bronze tubular set on a 3-5/8 inch center-to-center sideplate, while the Omnia D12036A is solid brass construction.
5) What comes in the box with the Emtek 6020 lockset, and do I need a separate deadbolt?
It ships as a complete set: exterior sideplate with keyed cylinder, the interior knob or lever you pick, the latch, and the strike plate. It's a single cylinder entry function, so the outside is keyed and the inside retracts by turning the knob or lever. Security is from the keyed latch, not a deadbolt, so if you want a deadbolt on that opening you order it separately.
6) Can I key this Emtek sideplate lockset alike with the other doors on the house?
Yes. The 6020 is offered keyed different or keyed alike, and there's a keying-to-code field if you already have a code you need the cylinders cut to. Pick keyed alike across all the openings you want on one key.
7) Is the Emtek 6020 Tuscany lockset rated for commercial use?
It's a residential product. Emtek lists the Tuscany Bronze collection as residential, and the 6020 is a lost wax cast bronze tubular lockset built for homes, not for high-traffic commercial openings. For an office or retail entry with heavy cycle counts, look at a Grade 1 or Grade 2 commercial cylindrical lock instead.
8) What is the difference between a sideplate lockset like the Emtek 6020 and a standard rosette lockset?
A sideplate lockset mounts the knob or lever on a long vertical backplate rather than a small round rose. On the 6020 that plate carries the cylinder above the knob at 3-5/8 inches center to center, which gives you a keyed entry look with a deadbolt-style plate while still using one standard 2-1/8 inch bore. Mechanically it's still a tubular lock, so the door prep is the same as a rosette set.
9) Is the Omnia D12036PD an alternative to the Emtek 6020 for a keyed front door?
No. The Omnia D12036PD is a double dummy set - plates and levers only, with no keyed cylinder and no latch. The Emtek 6020 is a keyed entry lockset with a single cylinder, latch and strike plate included. For a keyed entrance the single cylinder Omnia D12036A is the comparable function, not the PD.
10) Will the Emtek 6020 match other Tuscany bronze hardware in the house?
Yes. The 6020 belongs to Emtek's Tuscany Bronze collection and is lost wax cast bronze, offered in Flat Black Bronze (FB) and Medium Bronze (MB). Pick the same finish code used on the rest of the Tuscany hardware and the knobs, levers and plates will read as a set.
11) Which sideplate lockset lets me pick the inside knob or lever style and the keying?
The Emtek 6020 Tuscany is ordered with a choice of inside trim across sixteen sandcast bronze knob and lever designs, with handing, backset and keyed alike or keyed different specified at order. The Omnia comparables are cataloged as fixed lever configurations - D12036A single cylinder, D12036AC double cylinder and D12036PD double dummy.
