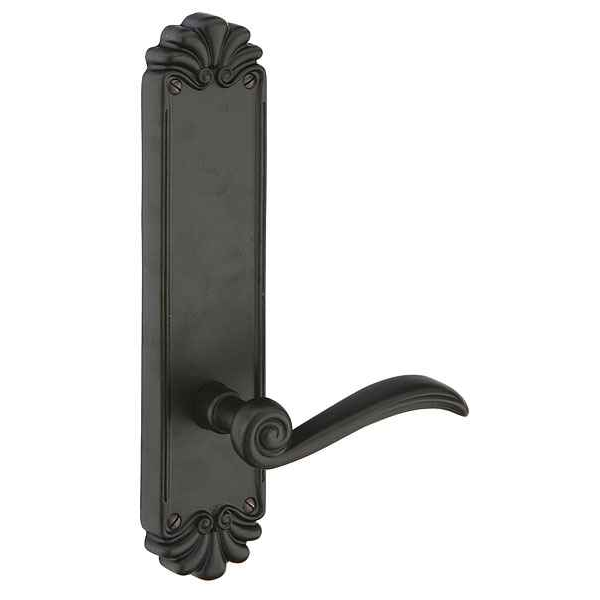

Emtek 6702 Tuscany #16 10-1/8" Non-Keyed Sideplate Lockset, Passage - Lost Wax Cast Bronze Tubular

Both. The 6702 Tuscany passage sideplate set is rated for doors from 1-3/8 to 1-3/4 inches thick, which covers standard residential interior doors and the heavier 1-3/4 inch slabs. The door prep is a single standard 2-1/8 inch cross bore, so an existing bored door usually takes it without new boring. Door thickness is an entry you fill in when ordering.

Backset is a choice you make at order time: 2-3/8 or 2-3/4 inches. Those are the two backsets used on bored doors, so measure from the door edge to the center of the 2-1/8 inch cross bore and pick the match. The standard latch ships 2-3/8 inch, so 2-3/4 has to be specified. Getting this wrong means the latch will not reach the strike.

No lock at all. It is a passage function set, non-keyed, with no cylinder and no privacy button. Both knobs or levers always turn and the latch just holds the door closed. Use it on hallways, closets, and pantry doors. For a bathroom or bedroom you want the privacy version instead, and for an exterior door you need a keyed set.

It ships as a complete set: the knob or lever, the latch, and the strike plate. The knob or lever style is not separate, it is a required selection on the order, and any Emtek Lost Wax Cast Bronze knob or lever style can go on the 6702 sideplate. Sixteen trim options are offered, including the Medici, Napoli, Octagon and Padua levers and the Parma, Petal, Diamond, Georgetown, Old Town, Bristol, Hampton, Lowell, Windsor and Octagon knobs, plus Ebony and Ice White porcelain knobs. Nothing else is required to hang it on a bored door.

Handing is required, right hand or left hand, and it is called out specifically for leversets. Stand outside the door: if the hinges are on your right it is right hand. The 6702 is a sideplate set, so the plate and lever orientation are built to that hand and it is not something you flip in the field. Knob trims still take the handing selection on the order.

The Emtek 6702 Tuscany is a non-keyed passage lockset, so it latches the door but never locks. When the opening needs to be keyed from outside, the Omnia D12036A is a single cylinder deadbolt lever lockset in solid brass construction - it keys from the exterior while keeping a lever inside. Order the D12036A for the doors that need to secure and keep the 6702 Tuscany for the interior openings where a latch is all the door does.

For that opening, the Omnia D12036AC is a double cylinder deadbolt lever lockset in solid brass with a sideplate design - it takes a key on both sides, so there is no thumbturn within reach through the glass. The Emtek 6702 Tuscany is a passage function lockset and does not lock at all, which makes it the wrong choice for a glazed entry regardless of the glass. Check egress code for the facility before specifying double cylinder on an exit door.

No - they do different jobs on the door. The Omnia D12036PD is a double dummy deadbolt lever lockset with plates, meaning trim only on both faces with no latch behind it, used on inactive leaves and false doors that are held by a roller catch or ball catch. The Emtek 6702 Tuscany is a passage function tubular lockset that includes a working latch and strike plate, so the lever or knob retracts a bolt and the door stays shut on its own. If the door has to hold itself closed, the 6702 is the one; if it is a fixed or inactive panel that just needs matching trim, the D12036PD is.

The #16 sideplate measures 10-1/8 inches. That is the plate dimension the manufacturer publishes for this model, so lay it against the door face to check it clears your hinge stile and covers any wear ring or old rose footprint left by the previous knob. The plate mounts over one standard 2-1/8 inch cross bore.

Two: Flat Black Bronze (FB) and Medium Bronze (MB). Both are lost wax cast bronze, a living finish that shifts with handling, so if you are matching openings across a house order the whole run at once and from the same collection rather than mixing in later. The Tuscany Bronze collection lets you keep hinges, passage sets and privacy sets consistent.

The 6702 is passage only, non-keyed, so it provides no deadbolt. If you want the sideplate look with locking, the Omnia D12036A pairs a lever lockset with a single cylinder deadbolt, and the D12036AC is the double cylinder version for a door with glass beside it. The Omnia D12036PD is the double dummy, plates and lever with no latch at all, for a fixed or inactive leaf. Those are Omnia, not Emtek, so the finish and casting will not match Tuscany bronze trim on adjacent doors.

The 6702 is built as a working passage set with a latch and strike, not a dummy. For a fixed or inactive leaf where nothing needs to retract, the Omnia D12036PD is a double dummy lever lockset with plates on a 5-1/2 inch center to center, mounted with no latch bore required. It is a different brand, so treat it as a function substitute rather than a finish match to Tuscany bronze.

Both are offered, round corner and square corner faceplate. Pull the old latch and look at the edge mortise: if the pocket has square corners, take the square faceplate and you drop straight in with no chisel work. Round corner suits doors machined by a router jig.

The Emtek 6702 Tuscany is designated for residential use, which makes it a fit for apartment interiors, unit doors on the private side, and hospitality guest rooms rather than for high-traffic commercial corridors. It is also passage function only, so any opening in the standard that needs to lock has to be covered by a different part - the Omnia D12036A single cylinder or D12036AC double cylinder deadbolt lever locksets carry sideplate-style trim with a keyed deadbolt. Build the schedule by function first, then match the trim family across the openings.

Order the working function for the active leaf and dummy trim for the fixed one. The Emtek 6702 Tuscany is a passage sideplate lockset that latches, and it is ordered with a handing and a backset of 2-3/8 inch or 2-3/4 inch because the leverset is handed. The Omnia D12036PD is a double dummy lever lockset with plates at 5-1/2 inch center to center and carries no latch, so it mounts to the inactive leaf without a bore for a latch run. Confirm the center to center spacing of the plates on both leaves before you prep, since the two are dimensioned independently.

Solid bronze, lost wax cast. That means the trim is machined from cast metal all the way through rather than plated over a substrate, so wear at the grip does not expose a different colour underneath, it just patinas. The latch chassis is brass. On a high-traffic residential opening, this is the reason to pick cast bronze over a plated finish.
