Emtek 6021 Tuscany #16 3-5/8" ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$395.00
$316.00

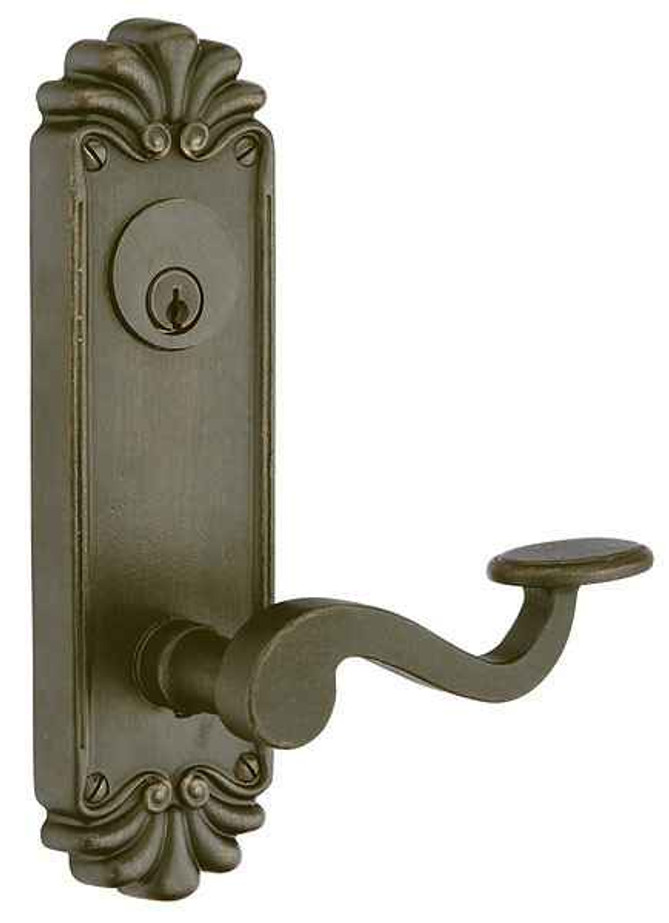

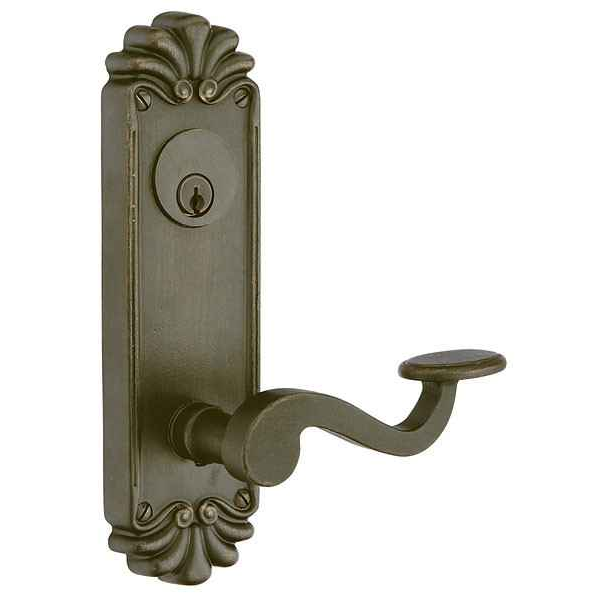

Emtek 6021 Tuscany #16 3-5/8" C-to-C Keyed Sideplate Lockset, Passage/Double Keyed - Lost Wax Cast Bronze Tubular

Emtek 6021 Tuscany #16 3-5/8" C-to-C Keyed Sideplate Lockset, Passage/Double Keyed - Lost Wax Cast Bronze Tubular

(No reviews yet) Write a Review

Model: 6021-FB
From the Tuscany Bronze Collection
$395.00
$316.00
Selected Finish is
Selected Knob or Lever for the inside trim is
Selected Handing is
Selected Backset is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$395.00
$316.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 6021 #16 3-5/8" C-to-C Keyed Sideplate Lockset, Passage/Double Keyed - Lost Wax Cast Bronze Tubular

  • Can be ordered with any Sandcast Bronze Knob or Lever Style
  • Sold as complete set. Includes Knob or Lever, Latch and Strike Plate
  • One Standard 2-1/8" Door Prep
  • Standard latch is for 2-3/8" backset. Specify 2-3/4" backset if required
  • Handing required for Leverset



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass

Product Specs

Subcategory:
Keyed Sideplate Locksets
Collection:
Tuscany Bronze
Product Type:
Sideplate Locksets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Lock Type:
Tubular
Keyed:
Yes
Keyed Function:
Double Cylinder
Lock Function:
Entry
Series:
Tuscany
Theme:
Tuscany
Electronic:
No
MAP Policy:
Yes
Product Model:
6021
(CTC) Center-to-Center:
3-5/8"
Product Function:
Entry
Product Style:
Tuscany Bronze
Product Material:
Bronze
Product Category:
Mechanical Locks
Product Substrate:
Bronze
Department:
Door Hardware

Emtek 6021-FB – Frequently Asked Questions

1) Will the Emtek 6021 Tuscany sideplate lockset fit a standard 2-1/8 inch bored door?
Yes. The 6021 Tuscany sideplate lockset uses one standard 2-1/8 inch cross bore, so it drops into a door already prepped for a normal bored lockset. Door thickness range is 1-3/8 to 1-3/4 inches, which covers both standard 1-3/4 inch doors and older 1-3/8 inch interior doors. The sideplate itself is 3-5/8 inch center-to-center, so the face of the door needs enough clear area above and below the bore for that plate.
2) What backset does the Emtek 6021 latch come with, and can I get 2-3/4 inch?
Both are available. Backset is a required selection at 2-3/8 inch or 2-3/4 inch, and the standard latch ships for 2-3/8 inch unless you specify 2-3/4. Measure from the door edge to the center of the bore before ordering: 2-3/8 is typical on residential interior doors, 2-3/4 on heavier exterior and commercial-prepped doors.
3) Is the Emtek 6021 double keyed, meaning a key is needed from inside too?
Yes. The 6021 is a double cylinder entry function, so it takes a key on both the outside and the inside. That is common on doors with glass alongside them, since there is no thumbturn to reach. Keep in mind most jurisdictions restrict double-keyed locks on required egress doors, so check your local code for the opening before you specify it. If you want key outside and free egress inside, a single cylinder function is the one to look for.
4) Do I have to specify handing on the Emtek 6021 Tuscany lockset?
Handing is a required choice, right hand or left hand. It matters for leversets in particular, since the lever has to point toward the latch side. Stand outside the door: if the hinges are on your right, it's right hand. Get this wrong on a lever and the trim will not sit correctly.
5) What comes in the box with the Emtek 6021, and do I need to buy the inside trim separately?
It ships as a complete set: the knob or lever, the latch, and the strike plate. The inside knob or lever style is a required selection made with the lockset, not a separate purchase. You pick from 16 designs, including the Medici, Napoli, Octagon and Padua levers, the Octagon, Parma, Petal, Diamond, Georgetown, Old Town, Bristol, Hampton, Lowell and Windsor knobs, and Ebony or Ice White porcelain knobs.
6) My door already has hardware at 5-1/2 inch center-to-center. Will the Emtek 6021 cover the holes?
No. The 6021 sideplate is 3-5/8 inch center-to-center, so it will not line up with prep laid out for 5-1/2 inch spacing. For that spacing, the Omnia D12036PD sideplate set is listed at 5-1/2 inch center-to-center. If you are working from a single standard 2-1/8 inch bore with nothing above or below it, the 6021 is fine.
7) What is the closest equivalent to the Emtek 6021 Tuscany keyed sideplate lockset from another brand?
The Omnia D12036AC is the nearest match in concept: a double cylinder deadbolt lever lockset with a sideplate design in solid brass. Like the Emtek 6021, it keys on both the outside and the inside, since the 6021 is a double cylinder entry lockset. The differences are material and styling - the Emtek 6021 is a bronze Tuscany-collection set offered in Flat Black Bronze and Medium Bronze, while the Omnia is solid brass.
8) I do not want a key cylinder on the inside of the door - what should I use instead of the Emtek 6021?
The Emtek 6021 is a double cylinder set, meaning it takes a key on both faces. If you want a thumbturn or single-key arrangement instead, the Omnia D12036A is a single cylinder deadbolt lever lockset in solid brass. Double cylinder is often chosen for glazed or sidelight-adjacent doors; single cylinder is common where egress without a key matters.
9) Is the Omnia D12036PD a substitute for the Emtek 6021 on an active entry door?
No. The D12036PD is a double dummy lever lockset with plates - it has no latch and no cylinder, so it mounts as fixed trim on an inactive or false door leaf. The Emtek 6021 is a keyed entry lockset with a tubular latch and a strike plate included in the set. Use the dummy only for the inactive leaf of a pair, and the 6021 where the door actually latches and locks.
10) What finishes does the Emtek 6021 Tuscany sideplate lockset come in?
Two bronze finishes: Flat Black Bronze (FB) and Medium Bronze (MB). Both are on lost wax cast bronze trim from the Tuscany Bronze collection, so the finish is part of a living bronze look rather than a plated brass one. If you are matching other openings in a house, the Tuscany collection is the family to stay inside.
11) Can I have several Emtek 6021 locksets keyed alike, or keyed to an existing key code?
Yes on both. Keying is a required selection, either keyed different or keyed alike, and there is a field to supply a key code if you need the locks cut to a code already in use on the property. Landlords and builders doing multiple doors normally take keyed alike so one key runs the set.
12) Is the Emtek 6021 a mortise lock or a tubular one, and is it rated for commercial use?
It is a tubular bored lockset, not a mortise lock, so the door takes a round cross bore and edge bore instead of a mortise pocket. Emtek lists it as residential. For a high-traffic commercial opening you want a graded commercial lockset or mortise lock rather than this decorative bronze sideplate set.
13) What else could I use instead of the Emtek 6021 if I want a deadbolt-and-lever sideplate look?
Omnia's solid brass sideplate lever locksets cover the same look in brass rather than cast bronze. The D12036AC is the double cylinder version, closest in function to the 6021 since it takes a key both sides. The D12036A is the single cylinder version if you want free egress from inside. The D12036PD is a double dummy at 5-1/2 inch center-to-center for inactive doors with no latch at all.
14) Will an Omnia sideplate lockset line up with the same sideplate holes as the Emtek 6021?
Not necessarily - check center-to-center first. The Emtek 6021 Tuscany sideplate is 3-5/8 inch center-to-center, while the Omnia D12036PD dummy set is 5-1/2 inch center-to-center. Sideplate sets are not cross-brand drop-ins on that dimension, so measure the existing plate spacing before swapping brands.
15) For a residential entry where I want bronze rather than brass trim, which set fits?
The Emtek 6021 Tuscany is the bronze option - bronze substrate in the Tuscany Bronze collection, offered in Flat Black Bronze and Medium Bronze, and rated for residential use. The Omnia D12036AC and D12036A sideplate levers are solid brass construction. Both are keyed lever sidplate sets; the choice comes down to metal and finish family.
16) Can I mix a knob inside and the Tuscany sideplate outside on the Emtek 6021?
Yes, that is how it is ordered. The sideplate carries the outside face and you choose the inside trim separately, knob or lever, from the Tuscany sandcast bronze designs. Porcelain is an option too, in Ebony or Ice White, if you want a period look inside with bronze outside.
