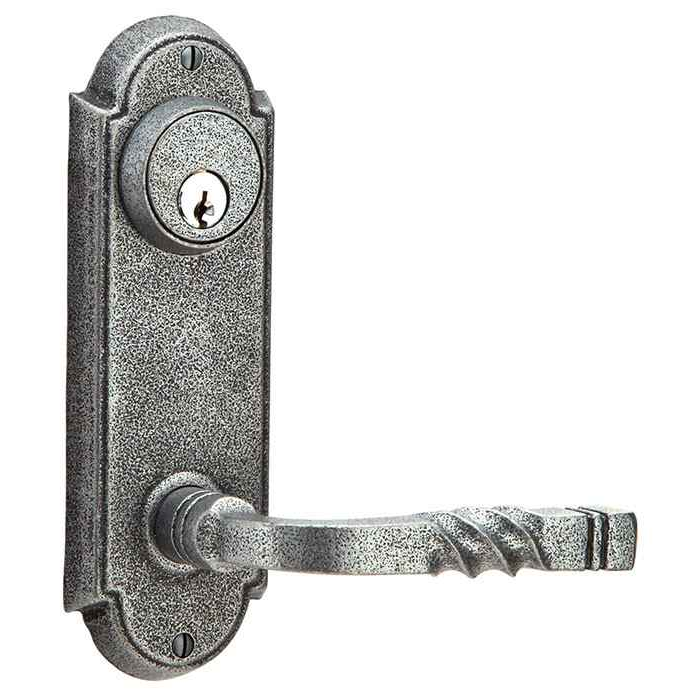

Emtek 7011 Wrought Steel #5 3-5/8" Keyed Sideplate Tubular Lockset, Passage/Double Keyed

Emtek 7011 Wrought Steel #5 3-5/8" Keyed Sideplate Tubular Lockset, Passage/Double Keyed

(No reviews yet) Write a Review

Model: 7011-FBS
From the Wrought Steel Collection
$354.00
$283.20
Selected Finish is
Selected Knob or Lever Style for the inside trim is
Selected Handing is
Selected Backset is
Selected FREE KEYING Options is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$354.00
$283.20
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 7011 Wrought Steel #5 3-5/8" Keyed Sideplate Tubular Lockset, Passage/Double Keyed

  • Can be ordered with any Wrought Steel Knob or Lever Style
  • Sold as complete set. Includes Knob or Lever, Latch and Strike Plate
  • One Standard 2-1/8" Door Prep
  • Standard latch is for 2-3/8" backset. Specify 2-3/4" backset if required
  • Handing required for Leverset



Specifications:

  • Backset: Adjustable 2-3/8" or 2-3/4"
  • Cross Bore: 2-1/8"
  • Door Thickness: 1-3/8" to 1-3/4"
  • Latch Faceplate: Round or Square Corner
  • Material: Brass

Product Specs

Subcategory:
Keyed Sideplate Locksets
Collection:
Wrought Steel
Product Type:
Sideplate Locksets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Lock Type:
Tubular
Keyed:
Yes
Keyed Function:
Double Cylinder
Lock Function:
Entry
Series:
Wrought Steel #5
Theme:
Rustic Living
Electronic:
No
MAP Policy:
Yes
Product Model:
7011
Product Function:
Entry
Product Size:
3-5/8"
Product Style:
Wrought Steel
Product Material:
Steel
Product Category:
Mechanical Locks
Product Substrate:
Steel
Department:
Door Hardware

Emtek 7011-FBS – Frequently Asked Questions

1) Will the Emtek 7011 sideplate lockset fit my existing door prep?
Yes, if the door is bored to the standard 2-1/8 inch cross bore. The 7011 uses one standard 2-1/8 inch door prep and the latch is adjustable for either a 2-3/8 inch or 2-3/4 inch backset, so it drops into a typical residential bored door. Door thickness range is 1-3/8 to 1-3/4 inches. What it will need is room for the sideplate, which measures 3-5/8 inches on the door face.
2) Is the Emtek 7011 keyed on both sides?
It is a double cylinder entry lockset, meaning it takes a key from both the outside and the inside rather than a thumbturn. That matters on glass-panel or sidelight-adjacent doors where you do not want a turn piece reachable through broken glass, but many local codes restrict double cylinder locks on required egress doors in a dwelling. If you want a thumbturn inside, the double cylinder 7011 is the wrong choice.
3) Do I need to know the handing for an Emtek 7011 sideplate lockset?
Yes, handing is required on every order. Stand outside the door: if the hinges are on the right it is right hand, on the left it is left hand. The sideplate and the lever both carry orientation, so a wrong call means the lever points the wrong way. Handing is called out as required for leversets in particular.
4) Which backset do I order for the Emtek 7011 if I am replacing an old lock?
Measure from the door edge to the center of the existing bore hole. 2-3/8 inches is the common residential backset and 2-3/4 inches shows up on thicker or wider stile doors. The 7011 ships standard with a 2-3/8 inch latch, so if your door measures 2-3/4 you have to call that out on the order.
5) What is the closest double keyed sideplate lever lockset to the Emtek 7011 from another brand?
The Omnia D12036AC is the nearest equivalent. It is a double cylinder deadbolt lever lockset with a sideplate design in solid brass, matching the Emtek 7011's double cylinder keyed function. The 7011 is a tubular lockset from the Wrought Steel #5 series with a 3-5/8 inch sideplate, keyed on both sides, so both put a key on the interior face as well as the exterior.
6) What comes in the box with the Emtek 7011?
It ships as a complete set: the knob or lever trim you select, the latch, and the strike plate. The latch faceplate is available round corner or square corner so it can match an existing mortise in the jamb edge. Cylinders for both sides are part of the double keyed entry function.
7) Can I key several Emtek 7011 locksets to one key?
Yes. Keying is selected at order time as keyed different or keyed alike, and you can supply an existing key code if you are matching hardware already on the building. Useful if you are doing a whole house or a set of units and want one key across the entries.
8) Is the Emtek 7011 Wrought Steel lockset rated for commercial use?
It is a residential lockset. The Wrought Steel #5 series is styled for a rustic residential look, and the mechanism is a tubular bored lock rather than a heavy mortise or cylindrical commercial lock. For an office corridor or a school door with real traffic, look at a commercial-grade cylindrical lockset instead.
9) What is a sideplate lockset and how is it different from a regular knob set?
A sideplate lockset mounts the knob or lever on a long decorative plate running vertically down the door face, rather than on a small round rose. The Emtek 7011 uses a 3-5/8 inch plate. It still bores like an ordinary tubular lock (single 2-1/8 inch cross bore), so you get the larger plate appearance without a different door prep.
10) I want a sideplate entry lock but with a thumbturn inside instead of a second key. What else is there?
For a single cylinder sideplate-style lever, the Omnia D12036A is a single cylinder deadbolt lever lockset in solid brass. If you do want key both sides, the Omnia D12036AC is the double cylinder version with a sideplate design. There is also the D12036PD, a double dummy with plates on 5-1/2 inch centers, for a non-latching door where you only want the look.
11) What do I put on an inactive or closet door so it matches a keyed Emtek 7011 opening?
Use a dummy set rather than a keyed lockset. The Omnia D12036PD is a solid brass dummy deadbolt lever lockset with plates on 5-1/2 inch center to center spacing, so it has no latch or cylinder and simply mounts as a pull. The Emtek 7011 is a keyed entry lockset that comes complete with lever or knob, latch and strike plate, so it is not the right pick for a non-latching leaf.
12) Is the Omnia D12036AC a drop-in replacement for an Emtek 7011 without redrilling the door?
Treat them as different preps rather than a swap. The Emtek 7011 is a tubular lockset using one standard 2-1/8 inch cross bore with an adjustable 2-3/8 inch or 2-3/4 inch backset, for doors 1-3/8 inch to 1-3/4 inch thick. The Omnia D12036AC is a deadbolt lever lockset with a sideplate design, a different arrangement of bolt and trim. Verify the existing bore pattern and sideplate footprint on the door before ordering across the two.
13) I want a steel rustic look rather than brass trim - how does the Emtek 7011 differ from the Omnia D12036 locksets?
The Emtek 7011 is from the Wrought Steel collection with a steel substrate and a rustic styling, offered in Flat Black Steel and Satin Steel finishes, with lever and knob options including Lafayette, Normandy, San Carlos, Jamestown, Savannah and Madison. The Omnia D12036A, D12036AC and D12036PD are solid brass construction. Choose on the material and look you want to carry across the opening.
14) What is the Emtek 7011 actually made of, steel or brass?
The sideplate and trim are wrought steel, which is what gives the Wrought Steel collection its forged look. The latch hardware is brass. If you are matching the look of hand-forged iron hardware on a rustic or craftsman door, that is the intent of this series.
