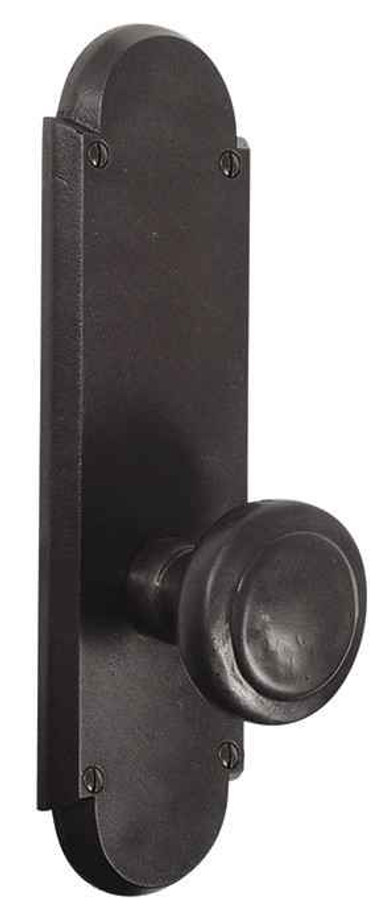

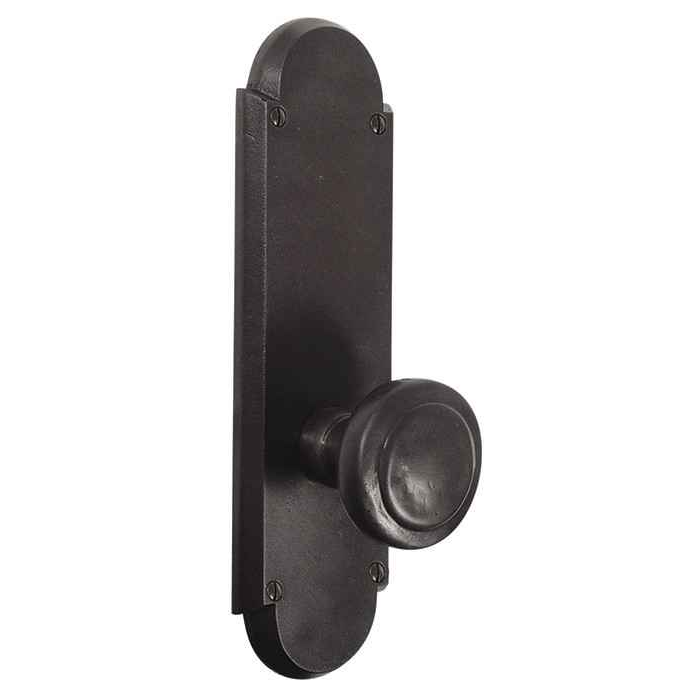

Emtek 7807 Sandcast Bronze #5 9-1/4" Non-Keyed Sideplate Tubular Lockset, Privacy

Yes, backset is a required selection when you order. The latch is adjustable for 2-3/8 or 2-3/4 inch, and the standard latch ships set for 2-3/8 inch, so call out 2-3/4 inch if that is what your doors are bored for. Both are the usual residential backsets, so measure from the door edge to the center of the bore before you specify.

It is a bed and bath privacy function, non-keyed. You get a thumbturn or push button on the inside to lock the door and an emergency release on the outside, with no cylinder and no key involved. If you need a key on the outside, this is the wrong model. For a hall, closet or pantry door that never needs to lock, a passage set is the right choice instead.

Handing is required on this one, right hand or left hand. It matters for the lever versions in particular, since the lever has to swing the correct way for the door. Stand on the outside of the door: if the hinges are on your right it is right hand, hinges on the left is left hand. Get this wrong and the lever points the wrong direction on an installed door.

The Emtek 7807 is a non-keyed privacy/bed/bath tubular lockset, so it push-button locks from inside and has no cylinder for an exterior opening. For a keyed sideplate opening, the Omnia D12036A is a single cylinder deadbolt lever lockset in solid brass - key outside, thumbturn inside. If the door has glass beside or within it and you want key operation from both faces, the Omnia D12036AC is the double cylinder version of the same sideplate design. Keep in mind double cylinder is restricted on egress doors in many jurisdictions, so confirm your local code before specifying it.

No - they do different jobs even though both are sideplate-style trim. The Emtek 7807 is a tubular privacy lockset in sandcast bronze, non-keyed, ordered with a 2-3/8 or 2-3/4 inch backset latch into a single 2-1/8 inch bore. The Omnia D12036A is a single cylinder deadbolt lever lockset in solid brass, so it carries a keyed deadbolt above the lever and is intended for an entry opening. Swapping one for the other means a different door prep and a different lock function, so match the function to the opening rather than treating them as interchangeable.

It ships as a complete set: knob or lever trim, latch, and strike plate. Nothing else is required for a standard 2-1/8 inch bored door beyond screws and a chisel for the latch mortise. You do choose the latch faceplate style, round corner or square corner, to match the existing mortise in the door edge.

Any Sandcast Bronze knob or lever pairs with it, and the inside trim is a required pick. Levers run Aurora, Bryce, Cimarron, Cody, Durango, Lariat, Mariposa, Montrose, Teton and Yuma. Knobs include Butte, Egg, Round, Winchester, Bristol, Hampton, Lowell, Windsor, Astoria, Diamond, Georgetown, Modern Disc, Modern Square, Old Town and Providence. That lets you standardize one sideplate across a house while varying trim room to room.

Three finishes: Flat Black Bronze (FB), Medium Bronze (MB) and Tumbled White Bronze (TWB). These are live sandcast bronze finishes, so if you are matching existing Emtek Sandcast Bronze door hardware in a house, order the same finish code across the fleet rather than eyeballing it. The body is bronze, not plated steel.

It is a residential product. The 7807 is a tubular bored lockset built for homes, rustic and lodge style interiors in particular. For a commercial opening with real traffic, look at a Grade 1 or Grade 2 cylindrical lockset instead of a decorative sandcast sideplate set.

The 7807 is non-keyed privacy only. If you need a locking exterior function on a sideplate style set, Omnia makes the D12036A single cylinder deadbolt lever lockset and the D12036AC double cylinder version with sideplate design, both solid brass. For a non-functioning pair on a false or closet door, the Omnia D12036PD is a double dummy deadbolt lever lockset with plates at 5-1/2 inch center to center.

Yes, that is the normal way to lay out a rustic package. Use the Emtek 7807 sandcast bronze sideplate privacy set on bedrooms and baths, where you want a push-button lock and no cylinder, choosing your lever or knob style and one of the three bronze finishes - Flat Black Bronze, Medium Bronze or Tumbled White Bronze. At the entry door the Omnia D12036A gives you a keyed single cylinder deadbolt lever lockset in solid brass on a sideplate, and closets or French doors can take the Omnia D12036PD double dummy with plates. The two brands are separate finish programs, so request finish samples before committing if an exact color match across doors matters to the client.
