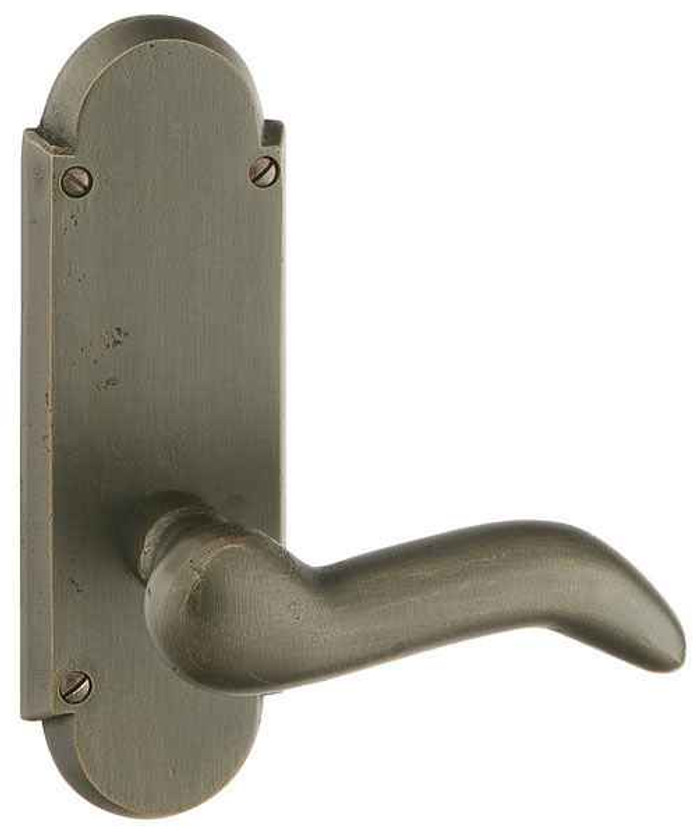

Emtek 7207 Sandcast Bronze #5 7-1/4" Non-Keyed Sideplate Tubular Lockset, Privacy

Yes. The 7207 uses one standard 2-1/8 inch cross bore, so it drops onto a door already prepped for a normal tubular knob or lever set. The backset is adjustable for 2-3/8 or 2-3/4 inches, and it covers doors from 1-3/8 to 1-3/4 inches thick, which takes in both older interior doors and standard modern ones. The 7-1/4 inch sideplate is longer than a round rose, so on a retrofit check that the existing door face is clean where the plate lands.

Handing is required on the order, right hand or left hand. It genuinely matters on a leverset, since the lever has to point toward the hinge side when the door is closed; the description calls out handing specifically for leversets. Stand on the outside of the door, and if the hinges are on your right it is a right hand door.

It is a non-keyed privacy function, the bed and bath lock. It pushes or turns to lock from the inside for a bedroom or bathroom door, with no cylinder and no key. If you need a keyed entry or a deadbolt for an exterior opening, this is not the right function.

No. The Emtek 7207 is a non-keyed privacy/bed/bath tubular lockset, so it locks from inside the room with no key involved. The Omnia D12036A is a single cylinder deadbolt lever lockset in solid brass, which is a keyed function intended for an entry opening. For a bedroom or bathroom where the occupant needs to lock from within and nobody should need a key, the 7207 is the correct function; the D12036A would put a keyed cylinder on an interior door.

Use a dummy set rather than a privacy set. The Omnia D12036PD is a solid brass dummy deadbolt lever lockset with plates on 5-1/2 inch centers, which mounts as trim with no latching or locking mechanism. The Emtek 7207 is a privacy/bed/bath tubular lockset supplied as a complete set with lever or knob, latch and strike plate, and it requires a 2-1/8 inch cross bore and a 2-3/8 or 2-3/4 inch backset bore in the door. On a closet or pantry leaf that is held shut by a ball catch or a magnet, the dummy trim avoids boring the door for a latch.

It ships as a complete set: the knob or lever you selected, the latch, and the strike plate. The latch faceplate is available with round or square corners, so match it to the mortise already cut in the door edge. No cylinder is included because it is a non-keyed privacy set.

The 7207 is residential hardware. It is a sandcast bronze tubular privacy set for houses, apartments, and light-duty interior openings. For a commercial corridor, a school, or anywhere with heavy daily traffic, spec a commercial-duty bored or mortise lock instead.

Yes, within the Sandcast Bronze line. The 7207 takes any Sandcast Bronze knob or lever style, so the same trim design and the same finish can run across privacy doors, passage doors, and keyed openings in the collection. Order every door in the same finish and the same knob or lever style and the set reads as one suite.

The 7207 is privacy only, no cylinder. For a keyed sideplate opening, Omnia's D12036A is a single cylinder deadbolt lever lockset in solid brass, and the D12036AC is the double cylinder version with a sideplate design, keyed on both sides for a door with glass nearby. If you want the sideplate look on a door that does not latch at all, such as a closet or a French door slave leaf, the Omnia D12036PD is a double dummy with plates.

The Omnia D12036A is a single cylinder deadbolt lever lockset, keyed on the outside with a thumbturn inside. The Omnia D12036AC is a double cylinder deadbolt lever lockset with a sideplate design, keyed on both faces, which removes the inside thumbturn on an opening where glass sits within reach of the lock. Neither is the same function as the Emtek 7207, which is a non-keyed privacy set with no cylinder at all. Confirm the double cylinder against the egress code for the building before specifying it.

Yes, by pairing functions rather than reusing one part. The Emtek 7207 covers the non-keyed privacy openings as a 7-1/4 inch sandcast bronze sideplate tubular lockset in Flat Black Bronze, Medium Bronze or Tumbled White Bronze. For the entry, a keyed sideplate function such as the Omnia D12036A single cylinder deadbolt lever lockset in solid brass carries a comparable plate-and-lever arrangement. The two are different manufacturers and different base materials, so order a sample of each finish before committing the whole house.

The trim is sandcast bronze, part of Emtek's Sandcast Bronze collection, with a brass latch and strike. Sandcast pieces carry visible casting texture, which is why the finishes are named the way they are: Flat Black Bronze, Medium Bronze, and Tumbled White Bronze. Those are living bronze finishes, so they change tone with handling over time rather than staying uniform.

It is an alternative to the standard latch, ordered in its place. The standard latch is supplied for a 2-3/8 inch backset unless you specify 2-3/4 inches, and the rotation latch is the second latch choice offered on the same set. Pick it only if your trim or opening calls for it; otherwise the standard latch is what ships.
