Emtek 8014 Modern 5-1/2" Keyed Sideplate Lockset, Dummy (Pair) - Brass Tubular

That's exactly what it's for. The 8014 Modern sideplate set is surface mount, so no door prep is required. There's no latch and no bore to drill, which makes it the set to use on a closet or pantry door, a French door leaf that's held by a roller catch, or the inactive leaf of a pair. It fits doors 1-3/8 inch to 1-3/4 inch thick.

No. It's a dummy, non-keyed, with no latch and no working mechanism. The knob or lever is fixed and pulls the door, nothing more. If you need the door to stay shut you'll need a separate catch or a ball catch, and if you need it to lock you want a keyed or privacy sideplate set instead.

It ships as a pair, one dummy assembly for each face of the door, and the set is complete with the knobs or levers included. So a single 8014 order dresses both sides of one door. If you're doing a set of French doors and want both leaves trimmed, that's two orders.

Yes, and it's a required choice: right hand or left hand. Handing is called out for leversets, since a lever has to point back toward the hinge side to look and feel right. Stand outside the door; if the hinges are on your right it's right hand. Get it backwards and the levers point the wrong way, which on a fixed dummy you cannot correct at install.

Yes, and that's the usual reason to buy it. The 8014 takes any Emtek brass knob or lever design, so you order the same trim style and the same finish as the functioning sideplate sets elsewhere in the house and the dummy doors read identically. The sideplate is the 5-1/2 inch Modern plate, so plate size matches too.

The Omnia D12036PD is the nearest peer: a solid brass dummy deadbolt lever lockset with plates on 5-1/2 inch center to center spacing, and its function is listed as double dummy. The Emtek 8014 is also a dummy function set sold as a pair on a 5-1/2 inch sideplate, in brass. Both are non-operating trim, so neither one latches or locks. The practical difference is trim selection: the 8014 takes any Emtek brass knob or lever style for the inside trim, while the Omnia comes as a lever set.

No. It looks like a match across the door because it uses the same 5-1/2 inch sideplate format and brass construction, but the 8014 is a dummy set: fixed trim, non-keyed, surface mounted with no door prep required. A deadbolt lever lockset such as the Omnia D12036A single cylinder or D12036AC double cylinder throws a bolt and accepts a key. Use the 8014 where the opening only needs a pull and matching trim, such as an inactive leaf, a closet, or a French door slab held by a roller catch.

Three things. Finish, which comes in six: Oil Rubbed Bronze (US10B), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL) and Satin Brass (US4). The knob or lever style, which is required and can be any Emtek brass knob or lever design. And handing. Door thickness is an optional note on the order if your door is out of the ordinary.

It's a residential-rated product in solid brass, aimed at homes, model units and hospitality-style interiors. For a commercial opening under an MRO or institutional spec, look at Grade-rated bored or mortise hardware instead. Where it does earn its place in a multi-family or hospitality job is on non-functioning doors: closets, double-door inactive leaves, and decorative pantry doors.

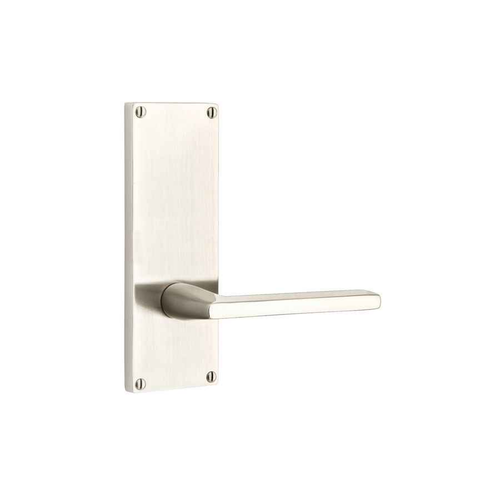

A sideplate set puts the knob or lever on a long vertical plate rather than a small round rose. The 8014 uses a 5-1/2 inch Modern plate. Practically, that plate covers more of the door face, which is useful over old hardware scars, and it gives the entry-style vertical look that pairs with a deadbolt above. Since this one is surface mount with no prep, the plate is doing all the work of holding the trim.

The Omnia D12036PD is the closest cross-brand equivalent we carry: a solid brass double dummy lever lockset with plates, 5-1/2 inch center to center, the same plate spacing as the Emtek 8014. Like the Emtek it is non-functioning trim for both faces of a door. The choice between them comes down to lever and plate styling rather than function.

Yes. The stated range is 1-3/8 inch to 1-3/4 inch, which covers both the standard 1-3/4 inch solid core slab and the lighter 1-3/8 inch interior door. Because it's surface mounted with no bore, thickness only affects the through-fixings, not any latch or spindle length.

The Emtek 8014 requires handing when a lever is selected for the inside trim, and it is ordered right hand or left hand. The Omnia D12036PD is listed as a double dummy lever lockset with plates on 5-1/2 inch centers. Handing matters on levers because the lever has to sweep down toward the latch edge; on a knob it does not apply. If a set of doors is being ordered mixed, confirm the swing at each opening before the order goes in, since dummy trim is fixed and cannot be reversed on site the way some latching sets can.

The Emtek 8014 is ordered with any Emtek brass knob or lever style for the inside trim, which covers lever families such as Stuttgart, Athena, Luzern and Poseidon as well as knobs including Orb, Round, Square and several crystal designs, in Oil Rubbed Bronze US10B, Satin Nickel US15, Flat Black US19, Polished Chrome US26, Unlacquered Brass US3NL and Satin Brass US4. The Omnia D12036PD is a double dummy lever lockset with plates on 5-1/2 inch centers, so it arrives as a lever configuration. If the existing hardware in the building is a knob, the 8014 path is the one that can be specified as a knob on the same 5-1/2 inch plate.

All six are on solid brass. Unlacquered Brass (US3NL) is the one to understand before ordering: it has no clear coat, so it darkens and patinas with handling. If you want the look to stay put, Satin Brass (US4), Satin Nickel (US15), Polished Chrome (US26), Oil Rubbed Bronze (US10B) or Flat Black (US19) are the stable choices. On a rental or a fleet of units, consistency usually wins.

Yes. The trim choice is open across the Emtek brass range, including knurled options like the Ace Knurled Knob (ACEKN), the L-Square Knurled (LS.KN) and T-Bar Knurled (TA.KN), white marble tops such as the L-Square White Marble (LS.MRWH), and crystal knobs like the Modern Square Crystal (MSC). Whatever style you choose, the knob or lever comes with the set.
