Emtek 8114 Modern 5-1/2" Keyed...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$363.00
$289.40

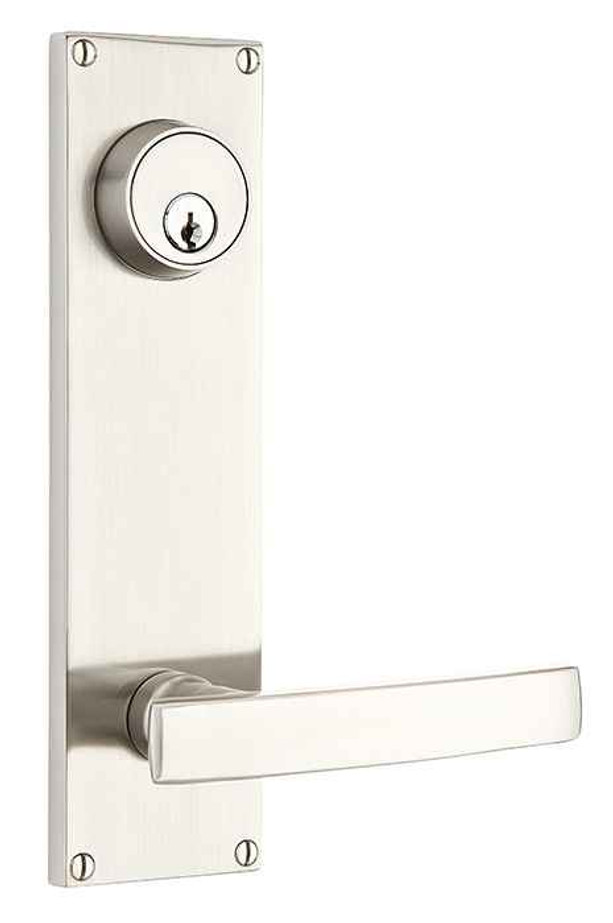

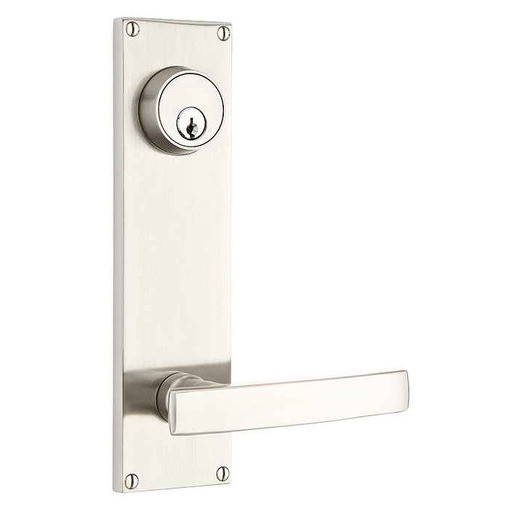

Emtek 8114 Modern 5-1/2" Keyed Sideplate Lockset with lever handle in Satin Nickel (US15) finish, single cylinder, brass tubular

Emtek 8114 Modern 5-1/2" Keyed Entry Sideplate Lockset - Brass Tubular

(No reviews yet) Write a Review

Model: 8114-US26
From the Brass Collection
$363.00
$289.40
Selected Finish is
Selected Knob or Lever Style for Inside Trim is
Selected Handing is
Selected Backset is
Selected FREE KEYING Options is
  • Emtek Emtek 443 Interconnect Device EMTEK-443

In Stock (leaves warehouse same day if ordered before 3pm ET)

$363.00
$289.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Emtek 8114 Modern Keyed Sideplate Lockset: Brass Tubular

The Emtek 8114 is a complete keyed entry sideplate lockset in the Modern series, built on a solid brass tubular chassis. The 5-1/2" center-to-center sideplate pairs with your choice of any Emtek brass knob or lever style, ships as a complete set (knob or lever, latch, and strike plate), and accommodates a wide range of door thicknesses - including extended and extra-long configurations for thicker commercial and multi-family doors.

Sideplate & Hardware

  • Sideplate: 9" tall x 2-3/8" wide, 5-1/2" center-to-center
  • Compatible with any Emtek brass knob or lever style
  • Complete set: knob or lever, latch, and strike plate included
  • Latch faceplate: round or square corner
  • Handing required when ordering a leverset

Specifications

  • Backset: adjustable 2-3/8" or 2-3/4" (standard latch is 2-3/8"; specify 2-3/4" if required)
  • Cross bore: 2-1/8" standard door prep
  • Door thickness - Standard: 1-3/8" to 1-3/4" (standard hardware included)
  • Door thickness - Extended: 1-3/4" to 2-1/4" (extended hardware required)
  • Door thickness - Extra-Long: 2-1/4" to 2-3/4" (extra-long hardware required)
  • Material: brass tubular
  • Keyway options: Schlage (SC1) or Weiser (WR5)

Product Specs

Subcategory:
Keyed Sideplate Locksets
Collection:
Brass
Product Type:
Sideplate Locksets
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Commercial/Residential:
Residential
Keyed Function:
Single Cylinder
Lock Type:
Tubular
Keyed:
Yes
Lock Function:
Entry
Series:
Modern
Theme:
Contemporary
Electronic:
No
MAP Policy:
Yes
Product Model:
8114
Product Function:
Entry
Product Style:
Contemporary
Product Material:
Brass
Product Category:
Mechanical Locks
Product Substrate:
Brass
Department:
Door Hardware

Emtek 8114-US26 – Frequently Asked Questions

1) Will the Emtek 8114 sideplate lockset fit my existing door prep?
The 8114 goes into a standard 2-1/8 inch cross bore with either a 2-3/8 or 2-3/4 inch backset, so it drops onto normal bored-door prep. The latch ships 2-3/8 inch as standard; call out 2-3/4 inch on the order if that is what your doors are bored for. What is different from a plain knobset is the sideplate itself: 9 inches tall by 2-3/8 inches wide, so the face of the door needs that much clear flat area and you will be drilling for the plate screws even if the bore is already there.
2) Do I have to specify handing on an Emtek 8114 sideplate lockset?
Handing is required, right hand or left hand, and the description calls it out specifically for leversets. Stand outside the door: if the hinges are on your right it is right hand. Get it wrong on a lever and the handle points the wrong way. Knob styles are symmetrical, but the order form still asks for handing, so answer it either way.
3) Can I key the Emtek 8114 to my existing Schlage keys?
Yes, if your building is on SC1. The 8114 is offered in a Schlage (SC1) keyway or a Weiser (WR5) keyway, and there is a keying-to-code field on the order, so you can hand over your bitting code and receive it cut to your existing key. Multiple units can also be ordered keyed alike as a group. It is a single cylinder entry function, so key outside, thumbturn inside.
4) What comes in the box with the Emtek 8114, and what else do I need to buy?
It ships complete: the sideplate, your chosen knob or lever, the latch, and the strike plate. You are not buying a rose or a latch separately. What you do choose at order time is the handle style, the finish, the keyway, the handing, the backset, and the thickness hardware if the door is over 1-3/4 inches. A deadbolt is not part of it, so if the opening needs one, that is a separate order.
5) What is the closest equivalent to the Emtek 8114 keyed sideplate lockset from another brand?
The Omnia D12036A Single Cylinder Deadbolt Lever Lockset with Solid Brass Construction is the nearest peer. Both are solid brass sideplate-style lever locksets keyed on one side only: the Emtek 8114 is a single cylinder entry lockset on a brass tubular chassis, and the Omnia D12036A carries a single cylinder function as well, so both take a key outside and turn free inside. The Emtek 8114 uses a tubular latch chassis with an adjustable 2-3/8 inch or 2-3/4 inch backset into a 2-1/8 inch cross bore, and the Omnia is built as a deadbolt lever lockset, so confirm the door prep matches the one you choose before ordering.
6) I need a key on both sides of the door - what do I use instead of the Emtek 8114?
The Emtek 8114 is a single cylinder lockset, so it is keyed outside and thumbturn or free-turning inside. For a door that must be keyed from both sides - a glass-front entry, a rear service door, or a unit where you do not want the door opened from inside without a key - the Omnia D12036AC is a double cylinder deadbolt lever lockset with a sideplate design in solid brass. Before specifying double cylinder, check the egress rules for the occupancy: many jurisdictions restrict double cylinder hardware on required exit doors.
7) Can I match the Emtek 8114 to the knobs and levers already on my other doors?
The 8114 sideplate takes any Emtek brass knob or lever style, and the order list runs to nearly ninety of them, from the Modern series shapes like the Stuttgart and Helios levers and the Ace knob through traditional patterns like the Rope, Ribbon and Reed, and Victoria knobs, plus crystal options. Six finishes are offered: Oil Rubbed Bronze (US10B), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL), and Satin Brass (US4), and each is available in both keyways. So a property manager standardizing a building can keep one handle shape and finish across passage, privacy, and keyed openings.
8) Can I combine the Emtek 8114 entry set with a deadbolt so one motion retracts both?
Yes, using the Emtek 443 interconnect device, which is offered as an add-on with the 8114. That is the piece that ties a sideplate entry lockset to a deadbolt above it so the inside lever retracts both together, which is what a lot of multi-family and rental code situations want for egress. The deadbolt itself is a separate order.
9) Is the Emtek 8114 sideplate lockset rated for a commercial entrance?
Emtek classes the 8114 as residential hardware. It is solid brass with a tubular chassis and it will handle thicker doors, up to 2-3/4 inches with the extra-long hardware, which is why it turns up on multi-family and boutique hospitality entries. For a high-traffic commercial opening running on a specified cycle count or a graded lock schedule, spec a Grade 1 or Grade 2 commercial lockset instead.
10) What is a simpler option than the Emtek 8114 for a door that does not need to lock?
The Emtek 8114 is a keyed entry lockset with a working latch and cylinder, which is more hardware than a non-latching opening needs. For a closet pair, a French door, or an inactive leaf that only needs matching sideplate trim, the Omnia D12036PD is a solid brass dummy deadbolt lever lockset with plates on a 5-1/2 inch center-to-center layout - the same center-to-center spacing as the Emtek 8114 sideplate. A double dummy has no latch and no cylinder; it surface-mounts as a pull only, so it does not need the 2-1/8 inch cross bore the 8114 requires.
11) Which sideplate lockset should I standardize on across a building where some doors lock and some do not?
The three functions in the 5-1/2 inch center-to-center sideplate format let one look run through a building. Keyed entry doors take the Emtek 8114, a single cylinder brass tubular entry lockset that accepts any Emtek brass knob or lever style so the trim stays consistent door to door. Doors needing a key on both sides take the Omnia D12036AC double cylinder. Closet and French door pairs take the Omnia D12036PD double dummy on a 5-1/2 inch center-to-center layout. Note the Emtek 8114 is specified for residential use, so verify it against the requirements for any commercial opening in the package.
12) Is the Emtek 8114 solid brass all the way through or plated?
Brass is the substrate, not just the plating, on both the sideplate and the tubular chassis, and the handle options that pair with it are Emtek's brass line. The Unlacquered Brass (US3NL) finish is the one to know about: it is left bare so it darkens and patinas with handling. If you need it to stay bright and even across a building, go with Satin Brass (US4) or one of the plated finishes like Satin Nickel (US15) or Polished Chrome (US26).
