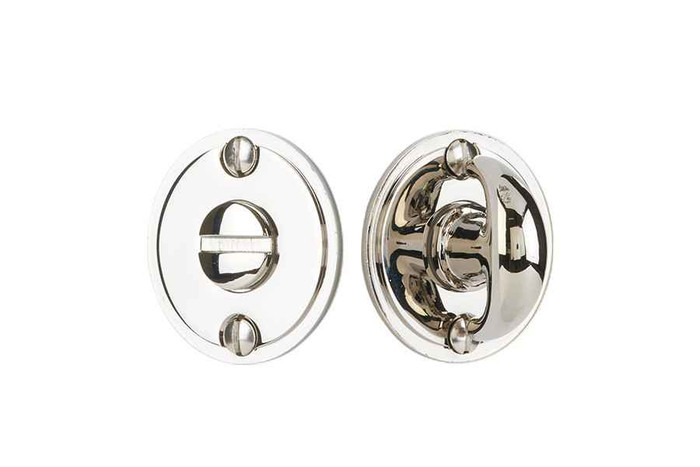

Emtek 828TP Classic Thumbturn Privacy Bolt
The Emtek 828TP is a tubular privacy bolt designed for interior bed and bath doors. It pairs with any Emtek brass passage set to deliver one-sided privacy locking: a thumbturn on the interior side engages the bolt, while an emergency release tool allows access from the exterior. Handing is required for leversets; the knob or lever lockset is sold separately.
Mix & Match Design System
Emtek's Classic series lets you coordinate thumbturn and rosette styles independently across 10 finishes — so the privacy hardware matches your passage set exactly, even when mixing styles room to room.
- 4 thumbturn designs available in 10 finishes
- 4 rosette designs available in 10 finishes
- Compatible with any Emtek brass passage set
- Complete set includes privacy latch, strike plate, and emergency release tool
Specifications
- Backset: Adjustable 2-3/8" or 2-3/4" (specify 2-3/4" if required)
- Cross Bore: 2-1/8"
- Door Thickness: 1-3/8" to 1-3/4" (specify if thicker)
- Latch Faceplate: Round or Square Corner
- Material: Brass
- Lock Type: Tubular
- Function: Privacy / Bed / Bath (Non-Keyed)
Manufacturer Resources
Emtek Knobsets and Leversets Designs
Product Specs
- Subcategory:
- Thumbturn Privacy Bolts
- Collection:
- Brass
- Product Type:
- Thumbturn Privacy Bolts
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Bored Locksets
- Commercial/Residential:
- Residential
- Lock Function:
- Privacy/Bed/Bath
- Lock Type:
- Tubular
- Series:
- Classic
- Theme:
- American Classic
- Electronic:
- No
- Keyed:
- No
- Keyed Function:
- Non-Keyed
- MAP Policy:
- Yes
- Product Model:
- 828TP
- Product Function:
- Privacy/Bed/Bath
- Product Style:
- American Classic
- Product Material:
- Brass
- Product Category:
- Mechanical Locks
- Product Substrate:
- Brass
- Department:
- Door Hardware
Emtek 828TP-US7 – Frequently Asked Questions
1) Does the Emtek 828TP privacy bolt come with the knob or lever, or do I have to buy that separately?
The 828TP is the privacy bolt on its own. It ships with the privacy latch, strike plate and emergency release tool, and it pairs with any Emtek brass passage set, which is ordered separately. So a finished bed or bath door is two line items: the 828TP thumbturn bolt, plus the passage knob or lever set that actually retracts the latch and lets you work the door. Buying the bolt alone leaves you with a way to lock the door and nothing to open it with.
2) What door prep does the Emtek 828TP thumbturn privacy bolt need?
A 2-1/8 inch cross bore, a 2-3/8 or 2-3/4 inch backset, and a door 1-3/8 to 1-3/4 inches thick. That is the standard residential bore and thickness prep, so on a typical interior bed or bath door the hole is usually already the right size. The latch faceplate is available round corner or square corner so it drops into the mortise already cut in the door edge, and the strike plate comes with the set.
3) How do I know whether to order the Emtek 828TP with a 2-3/8 or 2-3/4 inch backset?
Measure from the edge of the door to the center of the bore hole. That distance is the backset: 2-3/8 inches is the usual residential figure, 2-3/4 inches is the other standard and turns up on heavier or older doors. The 828TP is adjustable between the two, but the backset is a required selection when you order, so take the measurement off the actual door before you place it rather than assuming the whole house is the same.
4) Can I use the Emtek 828TP privacy bolt on a door thicker than 1-3/4 inches?
The standard 828TP covers 1-3/8 to 1-3/4 inch doors. Anything thicker has to be called out when you order, and there is a door thickness field on the order form for exactly that. If you are working on solid core or custom doors that run past 1-3/4 inches, put the actual thickness in that field instead of ordering the standard build and hoping the spindle reaches.
5) If a child locks the bathroom door from the inside, how do I get in?
There is an emergency release tool in the box with the 828TP. The bolt locks one side only: the thumbturn on the room side throws it, and the outside face has no keyway at all, so the release tool is the way back in. Tape it inside a nearby cabinet or the linen closet, because the day you need it is not the day you want to be hunting for it. If you are specifying these across a rental or hotel property, order a spare tool location plan the same way you would spare keys.
6) Can the Emtek 828TP be keyed so I can get into a unit from the hallway?
No. The 828TP is a non-keyed privacy function, bed and bath only. There is no cylinder in it and no keyway to key, so it cannot be brought into a master key system and it has no business on an entry door, a mechanical room, or anything you need key control over. For those openings you want a keyed entry lockset or a deadbolt with a cylinder. Where the 828TP earns its place is interior doors where you want privacy without adding another key to the ring.
7) Is the Emtek 828TP privacy bolt right for a commercial restroom or office corridor?
Emtek specifies the 828TP as residential hardware. It is a brass tubular privacy bolt built for interior bed and bath doors in homes and residential units, not for the cycle counts a public restroom or an office corridor puts on a lock. For a commercial opening, look instead for a commercial-grade cylindrical or mortise privacy lock rated for that traffic. The 828TP does fit multi-family unit interiors, where the doors behind the entry are residential in every practical sense.
8) What finishes does the Emtek 828TP come in, and will it match the Emtek knobs already on my other doors?
Ten finishes: Polished Brass Lifetime (US3), Unlacquered Brass (US3NL), Satin Brass (US4), French Antique (US7), Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Pewter (US15A), Flat Black (US19) and Polished Chrome (US26). Match the US code on your existing Emtek hardware and the finishes line up. Beyond finish, the Classic thumbturn is one of four thumbturn designs and there are four rosette designs, chosen independently, so you can match the rosette shape to the passage sets already hung and still pick the thumbturn you want.
9) Can I add an Emtek 828TP privacy bolt to a door that only has a passage knob on it now?
Yes, but plan on drilling. The 828TP is separate hardware from the passage set and carries its own latch and strike, so it needs its own 2-1/8 inch cross bore at a 2-3/8 or 2-3/4 inch backset, plus a latch mortise in the door edge and a strike mortise in the jamb. The passage knob stays where it is and keeps doing the latching. If the door is already prepped for a two-hole setup, you are just filling the empty bore.
10) Round corner or square corner latch faceplate, which one do I order?
Match whatever is already cut into the edge of the door. A prep drilled with a lock boring jig leaves radiused corners and takes the round corner faceplate; a mortise chiseled square takes the square corner plate. On new construction you can pick either, but on a retrofit the existing mortise decides it, and putting a square plate into a round-corner pocket means chiseling out the corners by hand. The 828TP is offered with both.
11) What is the Emtek part number for the 828TP privacy bolt in a specific finish?
The number is 828TP plus the finish code: 828TPUS19 for Flat Black, 828TPUS10B for Oil Rubbed Bronze, 828TPUS15 for Satin Nickel, 828TPUS3 for Polished Brass Lifetime, and so on through the ten finishes. The finish code is the only thing that changes in the number, so backset and door thickness are not carried in the MPN, they are specified on the order. Quote both alongside the part number or the line comes through as the default build.
12) Will the Unlacquered Brass 828TP stay bright, or does it darken over time?
Unlacquered Brass (US3NL) is a living finish. With no clear coat over the brass it oxidizes and darkens with handling, unevenly at first, and settles into a patina over months. That is the intended look, and it is not a defect. If you want it to stay bright you polish it, and if you want it to stay put with no maintenance, order Polished Brass Lifetime (US3) instead, which is the coated version of the same look.
