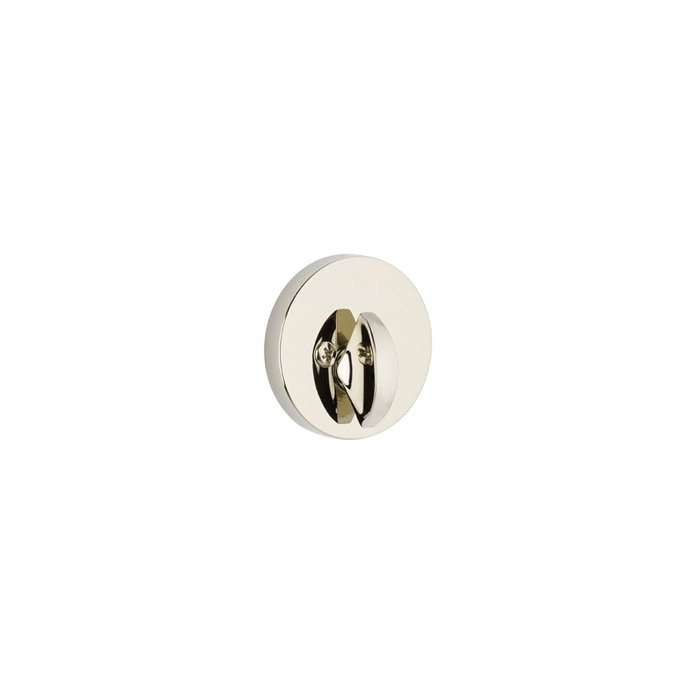

Emtek 8567 Modern Single Sided Deadbolt - Brass

It covers 1-3/8 inch through 2 inch doors. Emtek builds it standard for a 1-3/4 inch door, which is the usual commercial and exterior thickness, so if your door is thicker than that you have to call it out on the order. There is a door thickness field at order time for exactly that reason.

Yes, if your door is bored to the standard tubular pattern: 2-1/8 inch cross bore, 1 inch edge bore, with either a 2-3/8 or 2-3/4 inch backset. Backset is a required choice when you order, so measure from the door edge to the center of the bore before you pick. Because it is single sided, the outside face of an existing through-bore will be left open, so it suits a door where the exterior hole was never drilled or where you are covering it.

For a keyed exterior with a thumbturn inside, look at a cylinder x thumbturn deadbolt in a contemporary trim, such as the Bravura 310SC Elite Grade 2 contemporary square deadbolt or the Bravura 310RC Elite Grade 2 contemporary round deadbolt. Both are cylinder x thumbturn. The Emtek 8567 is a non-keyed single sided deadbolt in the Modern series, thumbturn only from inside, with no cylinder or collar on the opposite face.

For a rated opening, look at units that state a fire rating: the Hager 3215 single cylinder deadbolt with a 1 inch throw is a Grade 2 commercial lock listed as fire rated for doors 1-3/8 inch to 1-3/4 inch, and the Cal-Royal CRB800 is a Grade 1 heavy duty single cylinder deadbolt with a UL 3-hour fire rated latch. The Emtek 8567 is a residential single sided deadbolt in the Modern series intended for interior installation and appearance.

The Callan Model 205S is a one-sided half-bore deadbolt, so the outside face is not bored through. The Emtek 8567 is a single sided deadbolt operated by thumbturn from inside only, with no cylinder or collar, and it uses a 2-1/8 inch cross bore and 1 inch edge bore. If the door face needs to stay closed on the exterior side, the 205S half-bore approach is the one to look at; if a standard 2-1/8 inch bore is already in the door, the 8567 fits it.

The Emtek 8567 is a residential tubular deadbolt in the Modern series. Where a project calls out an ANSI/BHMA grade, the graded alternatives include the Cal-Royal CB160 Grade 2 single cylinder deadbolt with tamper-resistant cylinder guard, the Dexter DB1000 Series Grade 1 single cylinder deadbolt for doors 1-3/8 inch to 1-7/8 inch, and the Design Hardware D1 Series Grade 1 double cylinder deadbolt for 1-3/4 inch doors.

They serve a similar idea from different sides. The Arrow E60 is a Grade 2 non-keyed exit deadlock with a blank plate on the outside and a thumbturn inside, for doors 1-3/8 inch to 1-3/4 inch. The Emtek 8567 is a residential single sided deadbolt with no cylinder or collar at all on the outside face, thumbturn inside only, and it covers door thicknesses from 1-3/8 inch to 2 inch with a 2-3/8 inch or 2-3/4 inch backset. Choose the E60 when a blank outside plate is wanted, the 8567 when the outside face should carry no trim.

Interior openings where you only ever need to throw the bolt from one side: a home office, a storage or utility room, a bedroom suite door, or a secondary door you want secured from inside with no exterior hardware breaking up the face. Emtek lists it for interior installation and appearance. On an entry door where someone has to get in from outside, use a keyed deadbolt instead.

Not this one. The 8567 is the non-keyed single sided version, so there is no cylinder to key. If you are standardizing a house on Schlage C, the keyed deadbolts to look at are the Hager 3115 or Hager 3215, both listed with a Schlage C keyway.

Both throw from one side only, but the bore differs. The Emtek 8567 uses a full 2-1/8 inch cross bore, so it drops into a door already prepped for a standard deadbolt. A half-bore version like the Callan 205S is made for a door that was never drilled all the way through. Pick based on what is already in the door.

The Emtek 8567 lists a door thickness range of 1-3/8 inch to 2 inch. Other options in that thicker range include the Deltana 7312KA2 Grade 3 double cylinder deadbolt at 1-3/8 inch to 2 inch and the Corbin Russwin DL3011 Grade 1 cylindrical deadlock at 1-3/4 inch to 2-1/4 inch. Note the DL3011 is cylinder x blank, not a thumbturn function.

The Hager 3115 is a Grade 2 cylinder x thumbturn deadbolt with a Schlage C keyway for doors 1-3/8 inch to 1-3/4 inch, and the Hager 3118 is a Grade 1 classroom deadbolt with a Schlage C keyway and 6-pin cylinder in the same door thickness range. The Emtek 8567 references the Schlage C keyway family but is supplied non-keyed with no cylinder, so if the opening needs to key into an existing Schlage C system, one of the Hager units carries the cylinder.

No. The Baldwin Reserve Contemporary Square Deadbolt is a double cylinder function, meaning a key is required on both sides. The Emtek 8567 is a single sided deadbolt with a thumbturn inside and no cylinder, so nothing operates it from the other face. Double cylinder is typically specified where glass is near the lock; the 8567 suits an interior door where key control on the far side is not wanted.

The Cal-Royal LSD is a Grade 3 single cylinder deadbolt with an ADA ergonomic thumbturn, for doors 1-3/8 inch to 1-3/4 inch. The Emtek 8567 uses a Modern series thumbturn on the inside face with no cylinder on the other side, so where an ergonomic turn is specified the LSD is the one that states it.

Seven: Oil Rubbed Bronze (US10B), Polished Nickel Lifetime (US14), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26), Unlacquered Brass (US3NL), and Satin Brass (US4). Unlacquered brass will patina over time rather than hold its out-of-box look, which is the point of it; if you want the brass tone to stay put, take US4 satin brass.

It sits in Emtek's Modern series with a contemporary style, and is offered in the same US finish codes Emtek runs across its brass collection, so it lines up with modern Emtek trim on adjacent openings. Compare finish codes side by side when you are mixing an older Emtek order with a new one.

No. The BEST 8T T Series item is a tubular deadbolt tube component, the latch body alone rather than a complete deadbolt with trim. The Emtek 8567 is a finished brass single sided deadbolt with the inside thumbturn, offered in a 2-3/8 inch or 2-3/4 inch backset. Order the 8T only when replacing the internal tube of an existing T Series lock.

The Codelocks CL200 is a surface deadbolt with key override, a light duty unit that mounts to the door face rather than into a 2-1/8 inch cross bore. The Emtek 8567 is a tubular deadbolt requiring a 2-1/8 inch cross bore and 1 inch edge bore with a 2-3/8 inch or 2-3/4 inch backset, so it suits a door already prepped for standard boring.
