Emtek Lost Wax Cast Bronze Petal Push & Pull Plates

Separately. The Petal pull plate (86182) is drilled to accept an 8 inch pull, but the pull itself is a separate order. The push plate (86181) is a solid plate with no pull. Both plates ship with matching screws, so you are not sourcing fasteners, just the pull.

1-3/4 inches is the standard thickness these plates are built for, and that is the commercial and most common exterior door thickness. If your door is thicker than 1-3/4 inches, that has to be specified on the order so the screws suit the door. The plates are surface mounted, so no mortising or through-bore prep is involved.

Each plate measures 3-1/2 x 15 inches. That needs at least 3-1/2 inches of flat stile face plus clearance from the glass stop and the lock edge, so on a narrow aluminum stile door it is tight to impossible. Wood and solid stile doors take it without trouble.

These are classed as residential hardware, aimed at homes, boutique and hospitality style openings. For a school corridor, hospital or office entrance running thousands of cycles a day, go with a heavy duty commercial plate instead: the Ives 8302 pull plate mounts through-bolted, and the Trimco 1010 Series is a cast heavy duty plate. Both are built for that duty level; the Petal is chosen for its cast bronze appearance.

Only if it is an 8 inch pull. The 86182 plate is drilled for an 8 inch pull, so a pull with different mounting hole spacing will not line up with the existing holes. If your existing pull is a different center-to-center, you would be looking at a plate drilled to match instead, such as the Trimco 1014 Series at 6 inch CTC or the Ives 8303, which is offered in 8 inch or 10 inch center-to-center.

The Delaney 3-1/2" x 15" Push Plate covers the same 3-1/2 by 15 inch plate footprint as the Emtek Petal push plate, so it drops onto a door already prepped for that size. The Emtek Petal push plate is lost wax cast bronze in Flat Black Bronze or Medium Bronze and comes with matching screws.

The Delaney 3-1/2" x 15" Door Pull Plate is a pull plate in the same 3-1/2 by 15 inch size as the Emtek Petal pull plate. The Emtek Petal pull plate is drilled to accept an 8 inch pull, and the pull is ordered separately from the plate.

For a bigger footprint, Delaney makes a 4" x 16" Push Plate and a 4" x 16" Door Pull Plate, both larger than the 3-1/2 by 15 inch Emtek Petal plates in width and height.

The Emtek Petal pull plate is drilled to accept an 8 inch pull. For other spacings, the Trimco 1010 Series cast pull plate uses a 5 inch center-to-center pull, the Trimco 1012 and Trimco 1013 use a 5.5 inch center-to-center pull, and the Trimco 1014 Series half-round uses a 6 inch center-to-center pull. The Ives 8303 is offered with 8 inch or 10 inch center-to-center mounting.

Two finishes: Flat Black Bronze (FB) and Medium Bronze (MB). Both the push plate and the pull plate are offered in each, so a pair of doors matches across the push and pull side. The plates belong to Emtek's Tuscany Bronze collection, so they are finished to sit with the rest of that bronze line rather than with plated brass hardware.

Bronze, cast by the lost wax process, which is what gives the petal relief its depth and slight variation piece to piece. The substrate is solid bronze throughout rather than a plated finish, so wear at the push point does not expose a different colored base metal.

Delaney makes plates in the same 3-1/2 x 15 inch size, a push plate (4905 series) and a matching pull plate (4900 series), so the door prep and screw pattern footprint stays in the same size class as the Petal. If you want a larger plate to cover more of an existing scarred door face, Delaney also does a 4 x 16 inch push and pull plate.

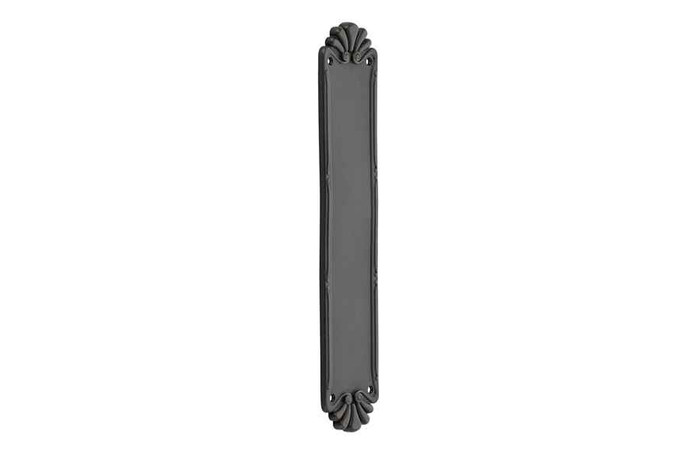

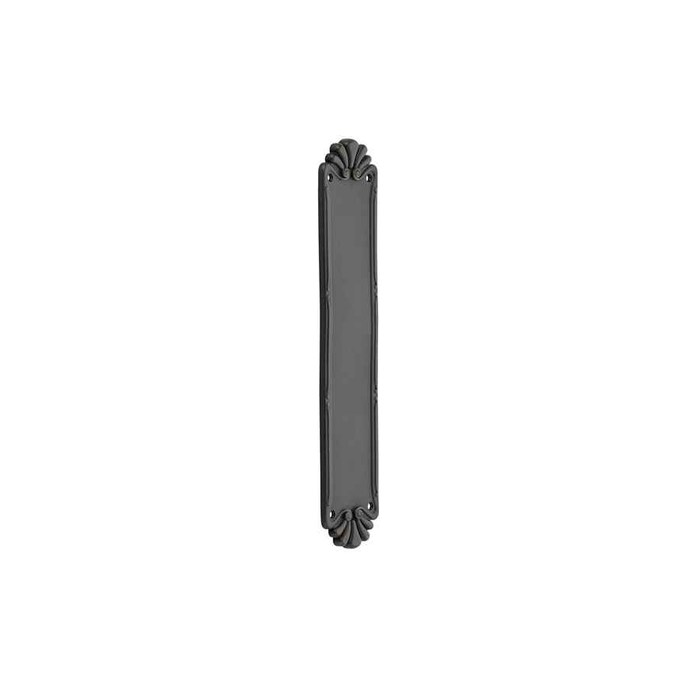

86181 is the push plate, a blank face for the swing side of the door. 86182 is the pull plate, the same 3-1/2 x 15 inch plate but drilled for an 8 inch pull on the pull side. A typical single door uses one of each, 86181 on the push face and 86182 plus a pull on the other.

No. These are surface mounted decorative plates with no cutout or prep for exit device trim. For a door with a panic bar you want a pull plate made for that device, such as the Detex P/PN Series pull plate for Value Series exit devices, which is built to mount with the device rather than around it.

The Emtek Petal plates are lost wax cast bronze in the Tuscany Bronze collection. For an undecorated plate in the same 3-1/2 by 15 inch size, Delaney offers a 3-1/2" x 15" Push Plate and a 3-1/2" x 15" Door Pull Plate. Trimco's 1013 is a round pull plate and the 1014 is a half-round, both different plate shapes.

Emtek's Petal plates come as a push plate and as a pull plate drilled for an 8 inch pull, both in Flat Black Bronze and Medium Bronze. Delaney also offers matched pairs at both sizes: a 3-1/2" x 15" Push Plate with a 3-1/2" x 15" Door Pull Plate, and a 4" x 16" Push Plate with a 4" x 16" Door Pull Plate.

The Emtek Petal plates are built for a standard 1-3/4 inch door thickness, with thicker doors specified at the time of order. Where a through-bolted assembly is wanted instead, the Ives 8302 is a heavy duty pull plate with through bolt mounting.
