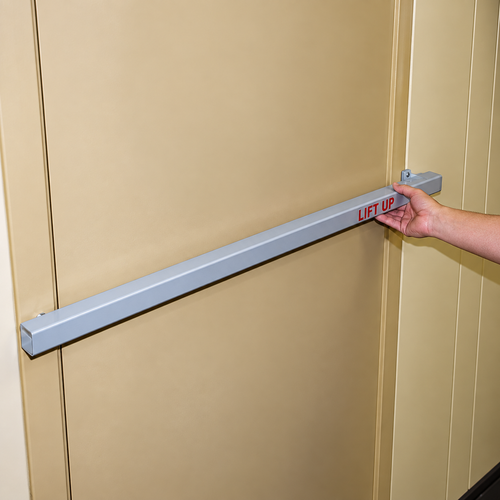

Exit Security 07-UV48 Heavy-Duty Door Security Bar for Single Inswing Wood Doors, 48"
Model: SB-07-UV48
Exit Security
Exit Security P1-1015 Pair of Extra Long L-Bolts for Deep Door Frames
The Exit Security P1-1015 Pair of Extra Long L-Bolts is engineered as a replacement component for door bar security systems installed on single and double outswing doors with extra wide jambs. Factory-installed "L" bolts measure 6-1/2" in length, which is often insufficient when the jamb dimension [D] measured on the door frame exceeds 5". These extra long L-bolts provide the additional length required to properly secure the door bar assembly in deep door frame applications, and they are designed to be trimmed to the exact length needed during installation using a "STEEL GRIP" cutting tool. As part of the Exit Security Door Bars series within the Door Trim and Latch Protection subgroup, this pair of bolts restores full function to security bar hardware where standard-length bolts fall short.
Key Features
- Extra Long Bolt Length: Replaces the factory 6-1/2" "L" bolts with a longer bolt designed for situations where jamb dimension [D] exceeds 5".
- Deep Door Frame Application: Specifically designed for single and double outswing doors with extra wide jambs that require additional bolt length beyond the standard factory specification.
- Trim-to-Fit Installation: Bolts are installed with the bar in the locked position on the door, then cut to the exact length needed using a "STEEL GRIP", leaving 1/2" for the red end caps.
- Sold as a Matched Pair: Provided as a pair of L-bolts to complete a full door bar replacement on a single installation.
- Door Bars Series Compatibility: Part of the Exit Security Door Bars series, designed for Door Trim and Latch Protection applications within the Door Hardware department.
- Measurement Guide Support: A manufacturer measurement guide is available to confirm jamb dimension [D] before ordering to help ensure the correct bolt length is selected.
Technical Specifications
- Product Group: Door Trim and Accessories
- Product Subgroup: Door Trim and Latch Protection
- Application: Deep Door Frames
- Series: Door Bars
- Product Function: Door Bar
- Department: Door Hardware
Typical Applications
- Commercial Office Buildings
- Educational Facilities
- Healthcare Institutions
- Retail Establishments
- Industrial and Warehouse Facilities
- Multi-Tenant Residential Properties
- Government and Municipal Buildings
Why Exit Security P1-1015?
Exit Security door bar components are built to restore proper fit and function to security bar installations on doors with deep, extra wide jambs. The trim-to-fit design of the P1-1015 L-bolts, combined with the "STEEL GRIP" cutting method and red end cap finish, allows installers to achieve a precise, secure fit rather than relying on an ill-fitting standard-length bolt. Engineered for Door Trim and Latch Protection applications, this pair of extra long L-bolts helps maintain reliable door bar security in demanding commercial and institutional settings.
Manufacturer Resources
Exit Security Product Brochure
Product Specs
- Product Group:
- Door Trim and Accessories
- Product Subgroup:
- Door Trim and Latch Protection
- Application:
- Deep Door Frames
- Series:
- Door Bars
- Product Function:
- Door Bar
- Department:
- Door Hardware
