EXP INS NYL RING TERM, 18-14, No10,
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Nylon Insulated Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 18-14 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Blue
- Product Material:
- Copper

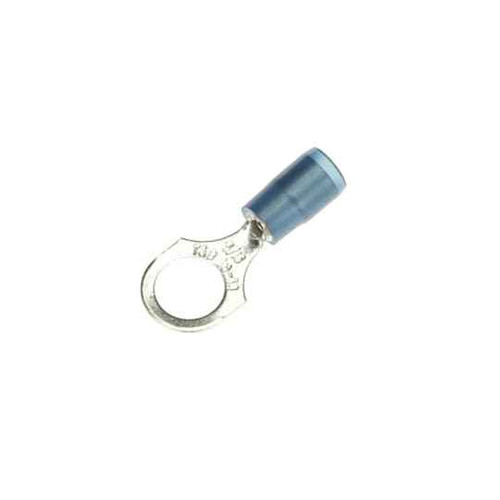

Sta-Kon RB14-10X – Frequently Asked Questions
1) What wire sizes does the Sta-Kon RB14-10X ring terminal crimp onto?
The RB14-10X accepts 18 to 14 AWG stranded copper conductor. The blue insulation is the standard color code for that range, so on a panel you can tell the 18-14 terminals from the red 22-16 and yellow 12-10 at a glance.
2) Is this ring terminal UL listed for inspected work?
It carries UL file E9809. That is the detail an electrical inspector or an institutional spec reviewer looks for on terminations inside a listed enclosure.
3) Ring terminal or fork (spade) terminal for a grounding screw?
Use the ring. A ring terminal like the RB14-10X is a closed barrel over the No. 10 screw, so it cannot vibrate off if the screw backs out slightly, which is why ring terminals are required on grounding and motor connections. A fork terminal only makes sense where you need to pull the wire off without fully removing the screw.
4) Is the barrel on this Sta-Kon terminal copper or aluminum?
Copper. That means it is for copper conductor only, not aluminum building wire, which needs an AL/CU rated connector.
5) What does the nylon insulation on the RB14-10X give me over a vinyl terminal?
Nylon insulation on this ring terminal is tougher and takes more heat and abrasion than vinyl, and it flexes without splitting when the barrel is crimped. It also has an expanded insulation entry, so thicker-jacketed 18-14 wire feeds into the barrel without stripping back extra insulation.
6) Is the Sta-Kon RB14-10X made in the USA?
Yes, country of origin is the United States, which matters if you are filling a government or institutional order with domestic sourcing requirements.
