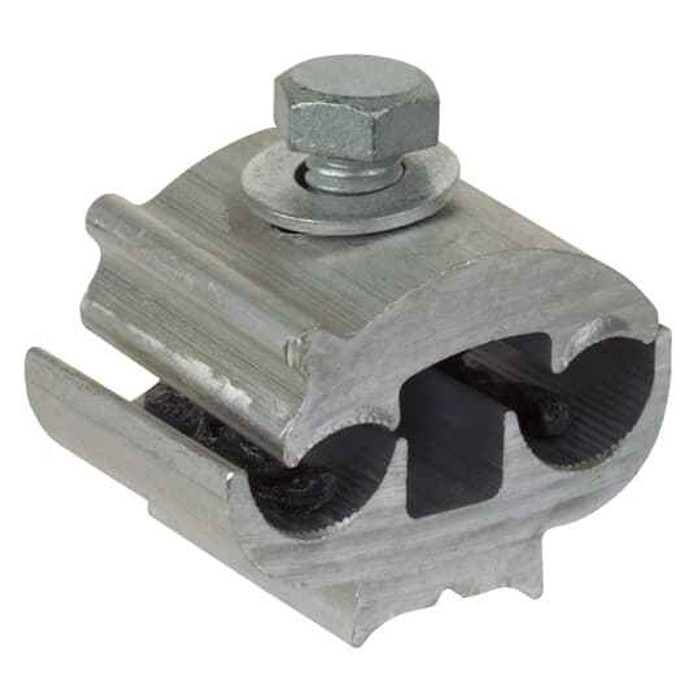

EXT PAR GRV CLAMP
Manufacturer Resources
Product Specs
- Connection Type:
- Bolted
- Country Of Origin:
- Mexico (MX)
- Insulation Material:
- None
- Number Of Conductors:
- 2
- Product Group:
- Grounding & Bonding
- Product Type:
- Parallel-Groove Clamp
- Selling Unit Of Measure:
- each
- Type2:
- Wire or cable compression splice
- Department:
- Electrical
- Product Subgroup:
- Ground Clamps
- Product Size:
- Height 2 X Length 1-3/8 X Width 2 inch, Bolt 3/8 inch
- Installation Category:
- None
- Product Material:
- Aluminum
Blackburn PAE4141-9-P-7 – Frequently Asked Questions
1) How many conductors does the Blackburn PAE4141-9-P-7 parallel groove clamp take?
Two. The PAE4141-9-P-7 is a two-conductor parallel groove clamp, so it joins one run conductor to one tap running alongside it. If you need to land three or more cables at one point, this is the wrong clamp body and you want a multi-groove or multi-tap version instead.
2) Can I use the Blackburn PAE4141-9-P-7 aluminum clamp on copper conductors?
The body is aluminum. Aluminum-bodied parallel groove clamps are commonly listed for aluminum-to-aluminum and aluminum-to-copper service, but the dual-rating is not something to assume from the material alone, so match the clamp to the conductor combination called out on your drawing. Where the connection is copper to copper, specify a copper or bronze bodied clamp instead.
3) Is the Blackburn PAE4141-9-P-7 clamp bolted or compression?
It is a bolted connector, tightened with a 3/8 inch bolt. No crimp tool or die set is needed, which is why these get used for field taps and temporary or re-enterable connections where a compression sleeve would have to be cut out to change anything.
4) Does the Blackburn PAE4141-9-P-7 come insulated?
No insulation. It ships as a bare metal clamp, so any covering over the finished splice, tape, a mastic pad, or a heat shrink boot, is a separate line item on your order.
5) What is a parallel groove clamp actually used for on a grounding job?
It splices two conductors that run side by side, clamping them into machined grooves under bolt pressure rather than crimping or welding them. On grounding and bonding work that means tapping a ground conductor off a running counterpoise, bonding to a grounding electrode conductor, or joining two cable ends without a hydraulic tool on site. The PAE4141-9-P-7 does that job as a two-conductor bolted wire or cable splice.
6) Is the Blackburn PAE4141-9-P-7 sold individually or in a bag?
Sold each. Order one clamp per splice point and count your taps accordingly; there is no bagged or boxed multiple on this part number.
7) Where is the Blackburn PAE4141-9-P-7 made?
Mexico. That matters on public work where country of origin has to be documented for the submittal package, so keep it with your product data sheet for the closeout binder.
