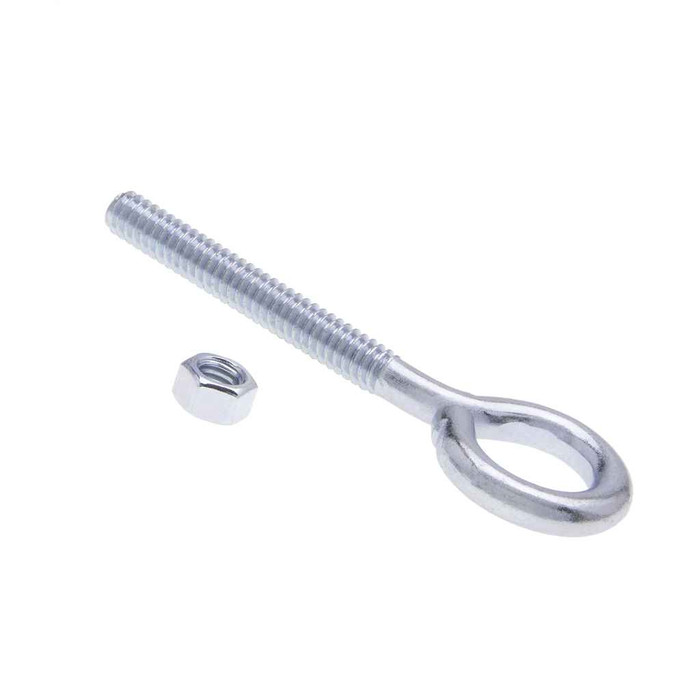

Metallics JEB24 Eye Bolt 10-24 X 3 Eye Blt & Nt St-zn (50)

Nuts are included. The JEB24 ships as an eye bolt and nut set, so you do not need to source a separate 10-24 nut to land it.

It is a 10-24 thread by 3 inch eye bolt. The 10-24 is a coarse machine screw thread, so it mates with standard 10-24 tapped holes and nuts, and the 3 inch length gives you room to pass through a bracket or channel and still take the nut on the back side.

Fifty pieces per jar. Metallics packs the JEB24 in a jar rather than a loose bag, which is how most electrical contractors want small fasteners on the van or the shop shelf.

They are steel with a zinc plating. Zinc plating handles dry indoor and protected work, but it is not a stainless or hot dip galvanized part, so for wet exterior or corrosive settings pick a fastener specified for that exposure.

That is the intent. The JEB24 is an electrical fastener, and the eye gives you an anchor point for support wire, hanger wire, or a small tie-off through the eye while the 10-24 threaded shank and nut fasten it to a bracket, strut, or drilled member. It is a light machine thread fastener, not a rated lifting eye, so use it for support and routing rather than load rigging.

Yes, if the hole is tapped 10-24 and the material is thick enough to hold the threads. The 3 inch shank leaves plenty of engagement. Where you are going through sheet metal, unistrut, or a punched bracket, use the supplied nut on the back side instead.
