Falcon 25-R-EO Series 48" Rim ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,533.00
$791.48

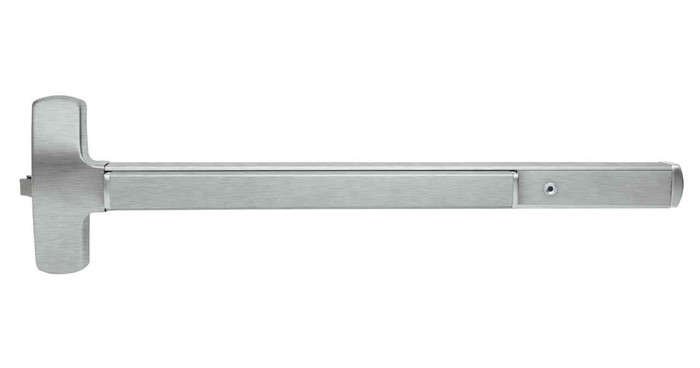

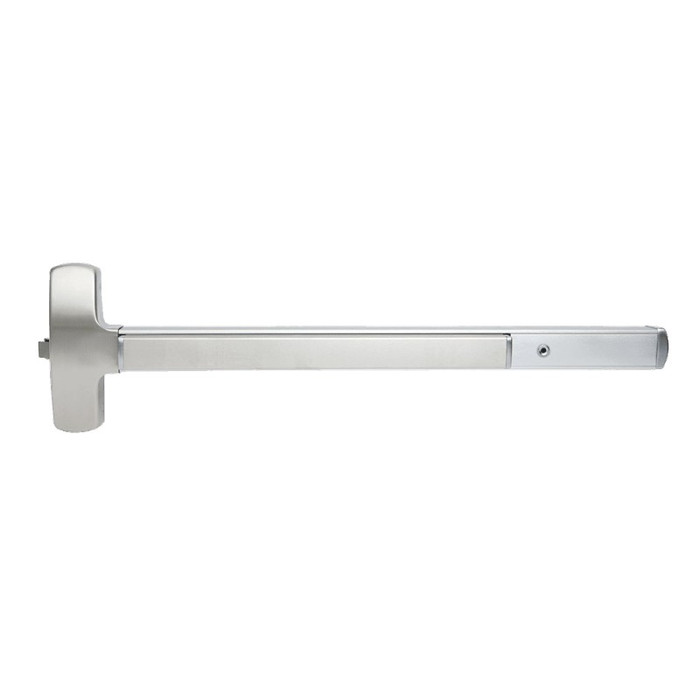

Falcon Falcon 25-R-EO Series - Exit Only (No Trim) - Rim Exit Device - 4 FT FAL-25-R-EO-4FT

Falcon 25-R-EO Series 48" Rim Exit Device - Exit Only - Grade 1 Commercial

(No reviews yet) Write a Review

Model: 25-R-EO 4 US26D
From the 25 R series Collection
$1,533.00
$791.48
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,533.00
$791.48
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Falcon 25-R-EO Series 48" Rim Exit Device - Exit Only - Grade 1 Commercial

Heavy-Duty Architectural Push Pad Exit Device for High-Traffic Applications

The Falcon 25-R-EO Series rim exit device delivers professional-grade egress control for demanding commercial installations. This 48" exit-only device features extruded aluminum construction with a streamlined touch bar design, engineered for 1-3/4" door thickness with 3/4" latch throw. ANSI/BHMA Grade 1 certified and UL listed, this rim-mounted device provides reliable single-point latching for high-traffic applications including offices, retail stores, and commercial buildings.

Professional Features & Benefits

  • 48" Device Length: Designed for standard commercial door widths with wide stile compatibility for versatile installation options.
  • Grade 1 Durability: ANSI/BHMA Grade 1 certification ensures heavy-duty performance suitable for high-traffic commercial applications.
  • Extruded Aluminum Construction: Delivers greater strength and impact resistance compared to standard materials for long-term reliability.
  • Streamlined Design: No exposed screws or rivets on the back of the device provides clean lines and attractive installation appearance.
  • Stainless Steel Push Pad: Scratch-resistant pushing surface withstands continuous use and maintains professional appearance.
  • Single-Point Rim Latch: 3/4" latch throw with 299 strike standard provides secure latching with reliable egress operation.
  • UL Listed Fire Rating: UL listed panic exit device with A or B label fire rating for code compliance in fire-rated applications.
  • Exit-Only Function: No trim configuration eliminates exterior access while maintaining emergency egress capability.

Technical Specifications

  • ANSI/BHMA: ANSI A156.3-2001
  • Collection: 25 R series
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Door Hand Direction: Non-Handed
  • Door Strike: 299 Strike standard
  • Door Thickness Range: 1-3/4"
  • Fasteners: Sheet metal screws and machine screws standard
  • Grade: Grade 1
  • Latch Throw: 3/4"
  • Lock Function: Exit Only
  • Product Category: Exit Devices and Trim
  • Product Function: Exit Only
  • Product Group: Exit Devices and Trim
  • Product Model: 25-R-EO-4FT
  • Product Projection: 2-3/4"
  • Product Size: 48"
  • Product Subgroup: Exit Devices - Rim
  • Product Type: Exit Devices - Rim
  • Series: 25 Series
  • Stile Type: Wide Stile
  • Subcategory: Rim Exit Devices
  • Trim Hardware: Less Trim
  • Wood Door Compatible: No

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness of 1-3/4", stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Falcon Quality?

Falcon 25-R Series exit devices deliver professional-grade reliability with extruded aluminum construction and ANSI/BHMA Grade 1 certification for demanding commercial applications. UL listed panic exit and fire exit hardware ensures code compliance while the streamlined design provides attractive installation appearance. Engineered for high-traffic environments where dependable egress performance is essential.

Product Specs

Product Group:
Exit Devices and Trim
Series:
25 Series
Fasteners:
Sheet metal screws and machine screws standard
ANSI/BHMA:
ANSI A156.3-2001
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Subcategory:
Rim Exit Devices
Latch Throw:
3/4"
Commercial/Residential:
Commercial
Grade:
Grade 1
Stile Type:
Wide Stile
Lock Function:
Exit Only
Wood Door Compatible:
No
Product Model:
25-R-EO-4FT
Collection:
25 R series
Product Function:
Exit Only
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/4"
Product Size:
48"
Product Projection:
2-3/4"
Trim Hardware:
Less Trim
Door Strike:
299 Strike standard
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Falcon 25-R-EO 4 US26D – Frequently Asked Questions

1) What door thickness does the Falcon 25-R rim exit device fit?
1-3/4 inches, and only that. It is a single-thickness device, which matches standard commercial door thickness, so it drops onto typical hollow metal and aluminum openings. If your doors are thicker, a device with a stated range fits better: the DORMA 9300 Series covers 1-3/4 to 2-1/4 inches, and the SDC S6000 Series covers 1-3/4 to 2 inches.
2) Do I need to order the Falcon 25-R exit device left hand or right hand?
Handing is not part of the order. The 25-R is non-handed, so one device covers both left and right hand openings. For a property manager stocking spares across a building, that means a single part number sits on the shelf for every door.
3) Will a rim exit device latch a pair of doors with no mullion?
No. A rim device like the Falcon 25-R latches into a strike on the frame at a single point, using a 3/4 inch latch throw and the 299 strike. On a pair of doors with no center mullion there is no frame to strike into, so you either add a removable mullion or switch to a vertical rod device that latches at the head and sill. The Hager 4501 Series is a wide stile concealed vertical rod device built for that condition.
4) Can you get into the building from outside with the Falcon 25-R-EO?
Not with the EO function. Exit only means no trim on the outside, so the door is egress out and nothing in. If you need key access from the exterior side, order the NL-OP option instead, which is night latch with an optional pull. The two functions are the same device, so you pick the one that matches how the opening is used.
5) How wide a door does the 48 inch Falcon 25 rim device cover, and will it fit a narrow stile aluminum door?
The 48 inch size is the wide stile version, sized for standard commercial door widths, and it projects 2-3/4 inches off the face of the door once mounted. It will not work on a narrow stile aluminum storefront door, where the vertical rail is too narrow to carry a wide stile chassis. For narrow stile openings, look at the TownSteel ED3700 or the Corbin Russwin ED4200, both narrow stile Grade 1 rim devices.
6) What do I have to specify when ordering a Falcon 25-R exit device?
Six choices go on the order beyond finish and function. Rating (non rated or fire rated), dogging (hex dogging, cylinder dogging, or less dogging), electric locking (none, FSA fail safe, or FSE fail secure), whether you want an RX request to exit switch, a device option (none, DM or LM latchbolt monitoring switch, MEL motorized electric latch retraction, or EA exit alarm), and whether it is an AX accessible device. Miss one and the order will not build.
7) Is the Falcon 25 rim device fire rated, and can I dog it open?
Fire rated is an option you select, and it changes what dogging you can order. On a fire rated opening the device must latch every time, so mechanical dogging is not permitted, which means less dogging on a fire rated build. On a non rated opening, hex dogging or cylinder dogging holds the pushpad down and lets the door push free during business hours. Cylinder dogging is the pick where you do not want maintenance staff carrying a hex key.
8) Will the Falcon 25-R latch into the strike that is already on my frame?
Only if that strike matches the 299. The 25-R ships with the 299 strike as standard and throws its latchbolt 3/4 inch. If the existing frame is prepped for a different rim strike, the pocket and the strike lip will not line up with the 3/4 inch throw and you will be cutting the frame. Plan to install the 299 strike that comes with the device rather than reusing what is there.
9) I need the exit device tied into the access control system. What options does the Falcon 25 offer?
Several, and they stack. Electric locking comes as FSA fail safe (unlocks on power loss) or FSE fail secure (stays locked on power loss), which is the decision your fire and security plan drives. Add RX request to exit to signal the panel when someone pushes the bar, DM or LM latchbolt monitoring to report whether the latch is actually thrown, or MEL motorized electric latch retraction to hold the latch back for scheduled free access. EA exit alarm is the option when you want a local horn on a door that should not be used routinely.
10) What is the closest Grade 1 wide stile rim exit device to the Falcon 25-R-EO in a 48 inch length?
The Von Duprin 22 Series rim device is the nearest wide stile Grade 1 match in family, though the 22-3FT is built for a 36 inch door. For a 48 inch opening, the Dormakaba 9300 Series is a Grade 1 heavy duty wide stile rim device in 48 inch, and the Corbin Russwin ED3000 Series ED3200 is a Grade 1 wide stile 48 inch rim device with a crossbar actuator rather than a push pad. The Falcon 25-R-EO is a 48 inch Grade 1 wide stile rim device with a stainless steel push pad, 3/4 inch latch throw and 299 strike, non-handed, for 1-3/4 inch doors.
11) My door is an aluminum storefront with a narrow stile. What rim exit device should I use instead of the Falcon 25-R-EO?
The Falcon 25-R-EO is a wide stile device, so a narrow stile aluminum storefront needs a different rim bar. Narrow stile Grade 1 rim options include the Corbin Russwin ED4200, the TownSteel ED3700 and ED8900, the Detex 40 Advantex Series, and the Adams Rite 8800 Series, which also carries a 1-3/4 inch to 2-1/4 inch door thickness range. The Adams Rite 3700 Series is the narrow stile choice when the opening is fire rated.
12) Which 48 inch rim exit devices are fire rated if I need a labeled opening?
The Marks USA M9900F is a fire rated 48 inch rim panic exit device in an exit only function with a panic protector end cap. For fire rated at 36 inch, the Marks USA M9900F-36, the Orca Hardware OED85 Series and the Dexter ED1000 Series fire rated rim device all carry a fire rating. The Falcon 25-R-EO is UL listed for panic and fire exit hardware with A or B label rating and is ordered with the rating selected as non rated or fire rated.
13) Is a Securitron EMB or an SDC pressure sense bar a substitute for the Falcon 25-R-EO?
They are different devices. The Falcon 25-R-EO is a mechanical rim latching exit device with a 3/4 inch latch throw and a 299 strike, so the door latches on its own. The SDC PSB560 SureExit is a pressure sense bar and the SDC MSB550 is a mechanical switch bar that releases an electromagnetic lock, so both depend on a separate mag lock to secure the door. The Securitron EMB is an electromechanical exit bar built for 2-1/4 inch door thickness. If the opening needs a latching panic device on a 1-3/4 inch door, those are not drop-in replacements.
14) Which competing rim exit devices handle doors thicker than 1-3/4 inch?
The Falcon 25-R-EO is built for 1-3/4 inch door thickness. If the leaf is thicker, the Dormakaba 9300 Series covers 1-3/4 inch to 2-1/4 inch as a Grade 1 heavy duty wide stile rim device, the Adams Rite 8800 Series covers the same 1-3/4 inch to 2-1/4 inch range in narrow stile, and the SDC S6000 Series S6136 electrified wide stile rim device covers 1-3/4 inch to 2 inch.
15) If I need electric latch retraction or request to exit, do I have to switch brands from Falcon?
No. The Falcon 25-R-EO is configured with fail safe or fail secure electric locking, an RX request to exit switch, and MEL motorized electric latch retraction, along with latchbolt monitoring and exit alarm options. Peer electrified rim hardware includes the SDC S6000 Series S6136 electrified architectural rim device with a 4 inch wide stile, the Sargent 12-8810-LTRIM with RX and MELR, and the Dormakaba electrified 36 inch rim device with 4908A trim.
16) Is the Falcon 25 series exit device Grade 1, and what standard is that under?
Grade 1 under ANSI/BHMA A156.3-2001, the standard that covers exit devices. That is the top durability grade in that standard and it is the level normally specified for schools, hospitals, and government buildings where the door cycles all day. For a facility standardizing on Grade 1 rim devices from a single manufacturer, the 25 series covers that spec.
17) What is the difference between the Falcon 25-R and a Von Duprin 22 rim device?
They cover the same job with different sizing. The Von Duprin 22 Series in the comparable set is a 36 inch wide stile pushpad rim device, Grade 1, non-handed, for 1-3/4 inch doors and not wood door rated. The Falcon 25-R here is the 48 inch wide stile version, also Grade 1 and non-handed at 1-3/4 inches. If the door is a standard 3 foot leaf, the 36 inch device is the size match; the 48 inch device suits wider leaves.
18) What else could I put on a 48 inch door instead of the Falcon 25-R rim device?
A few 48 inch wide stile rim devices cover the same opening. The Dexter ED1000 Series comes in a 4FT Grade 1 rim version, the DORMA 9300 Series is a 48 inch Grade 1 wide stile exit only device rated 1-3/4 to 2-1/4 inch doors, and the Corbin Russwin ED3000 Series is a 48 inch Grade 1 wide stile device with a crossbar instead of a pushpad. The Marks USA M9900F 48 inch is the fire rated route. Crossbar versus pushpad is mostly a look and a cleaning question; the pushpad has no gap to catch a cart.
19) Do I need to buy mounting screws separately for the Falcon 25 exit device?
No. Sheet metal screws and machine screws come standard with the device, along with the 299 strike. What is not in the box is exterior trim, since the EO function is supplied less trim. If the door needs a pull on the outside, that is a separate line on the order or the NL-OP function instead.
20) Is there a Grade 1 alternative to the Falcon 25 if I am comparing against a Grade 2 device?
Grade matters here. The Falcon 25 series is Grade 1 under ANSI A156.3-2001. Some rim devices sold at similar sizes are Grade 2 chassis, including the Cal-Royal 5500 48 inch push bar device and the Cal-Royal A9820 48 inch exit only device, both listed as Grade 2. On a high traffic opening in a school or a hospital, a spec that calls for Grade 1 rules those out.
21) I want a crossbar or paddle instead of a push pad. What rim panic device gives me that?
The Falcon 25-R-EO uses a stainless steel push pad touch bar. If the specification calls for a crossbar, the Corbin Russwin ED3200 is a Grade 1 48 inch wide stile crossbar rim device and the CRL Jackson 1095 Series is a 48 inch wide stile crossbar rim panic device in an exit only function. The CRL Jackson 1095P is the paddle version of that same wide stile exit only rim panic device.
22) What Grade 1 rim exit device should I look at for a 36 inch door if the Falcon 25-R-EO is sized for 48 inch?
The Falcon 25-R-EO in question covers a 48 inch device. At 36 inch, wide stile Grade 1 exit only rim devices include the Corbin Russwin ED2200, the TownSteel ED1100 and ED9700, and the Imperial USA ED-501. The Von Duprin 22-3FT is a 36 inch non-handed wide stile Grade 1 pushpad rim device for 1-3/4 inch doors, matching the Falcon's 1-3/4 inch thickness and non-handed operation.
23) I need a night latch rim device with outside key access. Does the Falcon 25-R-EO cover that, or is there another option?
The Falcon 25-R-EO is ordered less trim in an exit only function, and it is also offered in an NL-OP night latch with optional pull configuration across the same finish range. Comparable night latch rim hardware includes the Sargent 8504, a Grade 1 narrow stile rim device in a night latch function, and the Detex V40 Series V4003A/03AN, a Grade 1 wide stile rim device supplied with night latch trim.
24) What is the difference between the Falcon 25-R-EO and the Detex Advantex 00 Series or the Sargent 12-8810-LTRIM?
Function, not size. The Falcon 25-R-EO is an exit only latching rim device with a 3/4 inch latch throw. The Detex Advantex 00 Series is a wide stile dummy exit device, and the Sargent 12-8810-LTRIM is a fire rated wide stile rim device in a dummy function with RX and MELR. Dummy devices give the push bar appearance without latching, so they belong on the inactive leaf, not on the egress door that has to latch.
25) Which Sargent rim devices are built for a 48 inch door like the Falcon 25-R-EO?
The Sargent 2828 is a Grade 1 reversible wide stile rim exit device in an exit only function for a 48 inch minimum door width, and the Sargent 3828 is the Grade 1 reversible standard push bar version for 48 inch doors. The Falcon 25-R-EO at 48 inch is non-handed rather than reversible, so it does not need a hand specified at order.
26) What finishes does the Falcon 25-R exit device come in?
Twelve, and all twelve are offered on both the exit only and the night latch functions: 313AN dark bronze anodized, 643E aged bronze, US3 bright brass, US4 satin brass, US10 satin bronze, US15 satin nickel, US19 matte black, US26 bright chrome, US26D satin chrome, US28 aluminum anodized, US32 bright stainless, and US32D satin stainless. US26D and US32D are the two that usually match existing commercial hardware in an office or school, so those are the safe picks when you are adding a door to a building that is already outfitted.
27) How much clearance does the Falcon 25 rim device need in the door swing?
2-3/4 inches of projection off the door face. That is what to check against a wall, a corridor width, or a second door leaf swinging past, and it is the number that decides whether the pushpad clears in a tight vestibule. On a pair where the doors overlap in the swing, measure the projection against the other leaf before ordering.
