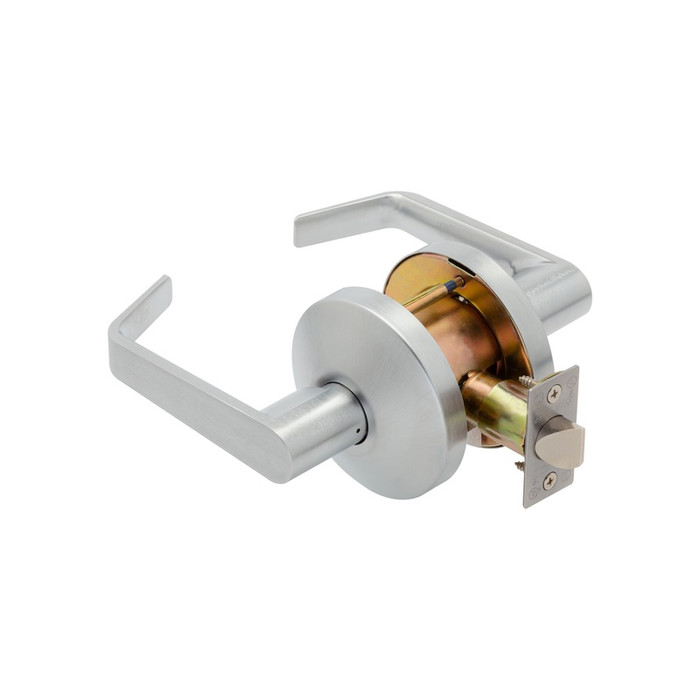

Falcon B101 Grade 2 Cylindrical Passage Lever Lock with Non-Handed Design

Falcon B101 Grade 2 Cylindrical Passage Lever Lock with Non-Handed Design

Medium-Duty Commercial Lever Lock Solution

The Falcon B101 Grade 2 cylindrical lever lock delivers reliable passage/closet function for commercial applications with adjustable door thickness from 1-3/8" to 2" and non-handed design for versatile installation. This ANSI/BHMA A156.2 Series 4000 Grade 2 certified lock features through-bolted construction with thread sealant coating and individual heavy-duty springs for lever return. UL listed with 3-hour A label fire rating and ADA compliant design ensures code compliance for professional installations.

Professional Features & Benefits

• Adjustable Door Compatibility: Accommodates door thickness from 1-3/8" to 2" for versatile installation across common door specifications.
• Grade 2 Durability: ANSI/BHMA A156.2 Series 4000 Grade 2 certification exceeds standard requirements for medium-duty commercial applications.
• Heavy-Duty Construction: Through-bolted trim with thread sealant coated screws and individual heavy-duty springs prevent lever sag and loosening.
• Non-Handed Design: Field installation without disassembly for re-handing allows easy installation and maintenance flexibility.
• Fire Rating Compliance: UL listed with 3-hour A label fire rating for code-compliant installations in fire-rated openings.
• Interchangeable Core Compatibility: SFIC compatible cores allow quick re-keying and work with cores from other manufacturers for master key system integration.
• ADA Compliance: Meets ADA standards with lever designs suitable for accessible applications.
• Manufacturer Warranty: 10-year warranty provides long-term protection and confidence in commercial installations.

Technical Specifications

• Backset (Distance): 2-3/4"
• Collection: B Series
• Commercial/Residential: Commercial
• Department: Door Hardware
• Door Hand Direction: Non-Handed
• Duty Level: Medium Duty
• Electronic: No
• Grade: Grade 2
• Handle Type: Lever
• Keyed: No
• Keyed Function: Non-Keyed
• Lock Function: Passage/Closet
• Lock Type: Cylindrical
• Product Attribute: Cylindrical Locks
• Product Category: Mechanical Locks
• Product Function: Passage/Hall/Closet
• Product Group: Mechanical Locks
• Product Model: B101
• Product Subgroup: Bored Locksets
• Product Type: Leversets
• Rose Diameter: 3-1/2"
• Series: B Series
• Standard Latch: 1-1/8" x 2-1/4", Square corner faceplate, 1" housing diameter, 1/2" Throw, 2-3/4" backset
• Standard Strike: 1-1/4" x 4-7/8", ANSI, Square corner, no box
• Subcategory: Cylindrical Locks

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness between 1-3/8" and 2", and confirm 2-3/4" backset compatibility.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces for the 3-1/2" rose diameter.
3. Prepare door by drilling required holes per manufacturer specifications for cylindrical lock installation.
4. Install latch assembly with 1-1/8" x 2-1/4" square corner faceplate and secure strike plate to frame using provided hardware.
5. Mount lever trim assemblies ensuring through-bolted connections are properly tightened to manufacturer torque specifications.
6. Test lever operation to verify proper function, spring return, and smooth operation throughout the full range of motion. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Family Residential Properties
• Government and Military Buildings

Manufacturer Resources

• Falcon Locks Catalog
• Falcon Cylindrical Lock Guide

Why Choose Falcon Quality?

Falcon B Series lever locks deliver professional-grade reliability with through-bolted construction and individual heavy-duty springs rated to exceed ANSI/BHMA Grade 2 standards. The 10-year warranty and UL 3-hour fire rating provide added confidence for demanding commercial applications. Engineered for new construction and retrofit projects where cost-effective security and reliable performance are essential.
