Bussmann GMA-1-R Fast-Acting Fuse

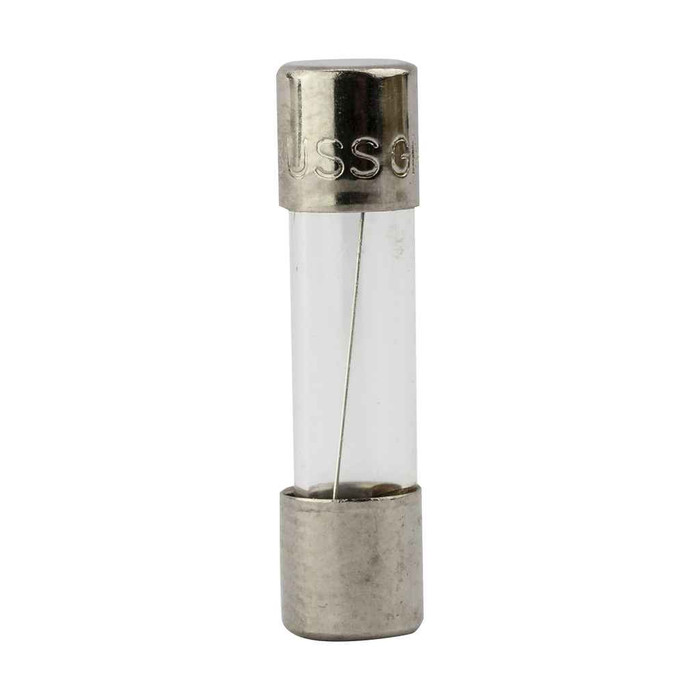

Bussmann 1A Fast-Acting Electronic Fuse 250VAC Glass Tube with Nickel-Plated Brass Endcaps

(No reviews yet) Write a Review

Model: GMA-1-R
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$51.71
$1.71
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bussmann 1A Fast-Acting Electronic Fuse 250VAC Glass Tube with Nickel-Plated Brass Endcaps

Professional Circuit Protection for Electronic Applications

The Bussmann 1A fast-acting electronic fuse delivers reliable overcurrent protection for sensitive electronic circuits with 250VAC/32VDC voltage rating and precise response characteristics. Featuring a durable glass tube construction with nickel-plated brass endcaps and ferrule end connections, this compact .25" x .75" fuse provides professional-grade protection with RoHS compliance and CE marking for global applications.

Professional Features & Benefits

  • 1A Amperage Rating: Provides precise overcurrent protection for sensitive electronic circuits and components
  • Fast-Acting Response: Quick interruption capability protects against short circuits and overloads with 60 min maximum at 135% and 2 min maximum at 200%
  • High Interrupt Rating: 35A at 250VAC and 10 kAIC at 125VAC ensures reliable fault clearing in demanding applications
  • Dual Voltage Rating: 250VAC and 32VDC compatibility provides versatility for AC and DC electronic circuits
  • Glass Tube Construction: Durable glass body with nickel-plated brass endcaps ensures reliable performance and corrosion resistance
  • Compact Dimensions: Small .25" x .75" profile fits tight spaces in electronic equipment and control panels
  • Global Compliance: RoHS compliant and CE marked for international regulatory requirements

Technical Specifications

  • Amperage Rating: 1A
  • Application: Electronic circuits
  • Connection: Ferrule end X ferrule end
  • Fuse Indicator: Non Indicating
  • Interrupt Rating: 35A at 250 Vac (p.f.=.7-.8), 10 kAIC at 125 Vac (p.f.=.7-.8)
  • Packaging Type: Standard
  • Product Height: .25 IN
  • Product Length: .75 IN
  • Product Material: Glass tube, nickel-plated brass endcaps
  • Product Type: Electronic- small dimension
  • Product Weight: .002 LB
  • Product Width: .25 IN
  • Response Time: 60 min maximum at 135%, 2 min maximum at 200%
  • Voltage Rating: 250 Vac, 32 Vdc (self certified)

Installation & Operation

  1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
  4. Configure any available load management or control features as supported by the provided specifications.
  5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

  • Electronic Control Circuits
  • Instrumentation and Measurement Equipment
  • Power Supply Protection
  • Industrial Control Panels
  • Telecommunications Equipment
  • Computer and Data Processing Systems
  • Laboratory and Test Equipment

Why Choose Bussmann Quality?

Bussmann delivers proven reliability in circuit protection with RoHS compliant and CE marked products that meet international standards. The precision-engineered glass tube construction with nickel-plated brass endcaps ensures consistent performance and long service life in demanding electronic applications.

Manufacturer Resources

Product Specs

Amperage Rating:
1A
Application:
Electronic circuits
Connection:
Ferrule end X ferrule end
Fuse Indicator:
Non Indicating
Interrupt Rating:
35A at 250 Vac (p.f.=.7-.8), 10 kAIC at 125 Vac (p.f.=.7-.8)
Packaging Type:
Standard
Product Height:
.25 IN
Product Length:
.75 IN
Product Material:
Glass tube, nickel-plated brass endcaps
Product Type:
Electronic- small dimension
Product Weight:
.002 LB
Product Width:
.25 IN
Response Time:
60 min maximum at 135%, 2 min maximum at 200%
Voltage Rating:
250 Vac, 32 Vdc (self certified)
Department:
Electrical
