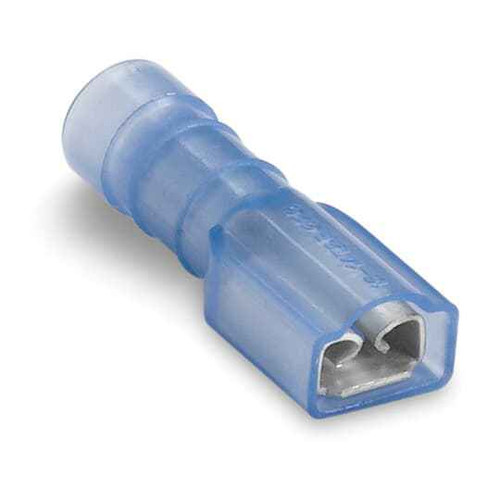

FLLY INS NYL FEM 187 DSC 22-18 BELT
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Insulation Material:
- Nylon/Polyamide
- Product Subgroup:
- Disconnects
- Product Type:
- Nylon Insulated Female Disconnect
- Standards:
- UL E66716
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Red
- Product Material:
- Brass
Sta-Kon RAD18277M – Frequently Asked Questions
1) What wire gauge does the Sta-Kon RAD18277M female disconnect take?
The RAD18277M is sized for 22 to 18 AWG stranded wire, which is what the red insulation color signals on a crimp terminal. Strip, insert to the barrel stop, and crimp with the red die or nest on your insulated-terminal tool. If you are terminating 16 to 14 AWG, you need the blue-coded size instead, not this one.
2) Are these disconnects UL listed for electrical work that gets inspected?
The RAD18277M carries UL file E66716. For MRO and institutional work where terminations have to be listed components, that file number is what you cite on the submittal. The terminals are also made in the United States, which matters on Buy American and government-funded jobs.
3) Is the Sta-Kon RAD18277M fully insulated, and can I use it in a control panel where terminals are close together?
It is a fully insulated terminal, with a nylon/polyamide sleeve covering the barrel and the receptacle body. That full insulation is what lets you crowd terminations in a control panel or junction box without heat shrink or tape, and nylon holds up better to abrasion and flexing than vinyl does.
4) How are these Sta-Kon 22-18 AWG disconnects packaged?
The RAD18277M ships belted, meaning the terminals come on a carrier strip rather than loose in a bag. Belted terminals feed a bench or pneumatic applicator for production crimping. If you are doing hand crimping in the field, loose-pack is easier to work from; belted parts have to be broken off the strip first.
5) Should I use a female disconnect like this or a ring terminal on my connection?
Use the .187 female disconnect when the device has a male blade tab and you want the wire to pull off for service, such as a switch, thermostat or appliance control you expect to swap. Use a ring or fork terminal instead when the connection is a screw stud on a terminal block or ground point. A disconnect cannot be screwed down, and a ring terminal cannot slide onto a blade.
6) What metal is the terminal itself, and does that matter for the connection?
The conductor barrel and receptacle are brass. Brass gives you a solid crimp and good conductivity for low-current control and appliance circuits, and it is the standard choice on .187 disconnects. Crimp it with a tool rated for insulated terminals, not pliers, or the barrel deforms and the contact resistance climbs.
