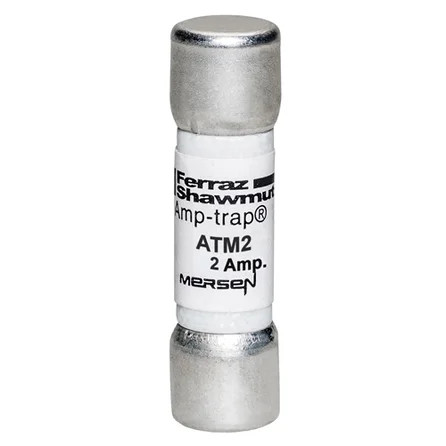

Mersen ATM2 Midget Fast-Acting Fuse 2A 600VAC/600VDC Ferrule Terminal

Mersen ATM2 Midget Fast-Acting Fuse 2A 600VAC/600VDC Ferrule Terminal

Professional Fast-Acting Circuit Protection for AC/DC Applications

The Mersen ATM2 delivers reliable fast-acting circuit protection with 2A rating and dual 600VAC/600VDC voltage capability. This midget class fuse features ferrule terminals with tin-plated copper construction and GMG body insulating material for dependable performance in professional electrical applications. With 100 kA AC breaking capacity and clip mounting design, this compact 1.5-inch fuse provides versatile protection for both AC and DC circuits.

Professional Features & Benefits

• 2A Current Rating: Provides precise overcurrent protection for sensitive circuits and equipment applications.
• 600VAC/600VDC Dual Voltage: Versatile protection capability for both alternating and direct current systems up to 600V.
• 100 kA Breaking Capacity: High interrupting rating ensures reliable fault current interruption in demanding electrical environments.
• Fast-Acting Response: Quick response time protects sensitive electronic components and circuits from overcurrent damage.
• Ferrule Terminal Design: Tin-plated copper terminals provide secure, corrosion-resistant connections for reliable performance.
• Midget Class Construction: Compact 1.5-inch length fits standard midget fuse holders and clips for space-efficient installation.
• RoHS Compliant: Meets environmental compliance standards for professional electrical installations.

Technical Specifications

• Ac Max I R Breaking Capacity I1: 100 kA
• Ac Or Dc: AC/DC
• Ampere Rating: 2:00 AM
• Body Insulating Material: GMG
• Connection Terminal Material: Tin-Plated Copper
• Connection Terminal Type: Ferrule
• Frequency Hz : 50/60 Hz
• Fuse Class: Midget
• Mounting Method: Clip
• Product Length: 1.5 in
• Product Weight: 0.017 lb
• Rated Voltage Ac Ul: 600 V
• Rated Voltage Dc Ul: 600 V
• Rohs Compliant: Yes
• Speed Characteristic: Fast-Acting

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Control Panels and Motor Control Centers
• Commercial Electrical Distribution Systems
• Electronic Equipment and Instrumentation Protection
• DC Power Supply and Battery System Protection
• Telecommunications and Data Center Applications
• Process Control and Automation Systems
• Laboratory and Testing Equipment Protection

Why Choose Mersen Quality?

Mersen ATM2 fuses deliver professional-grade circuit protection with RoHS compliant construction and proven reliability. The combination of high breaking capacity, dual voltage rating, and fast-acting response ensures dependable performance in critical electrical applications where circuit protection integrity is essential.
