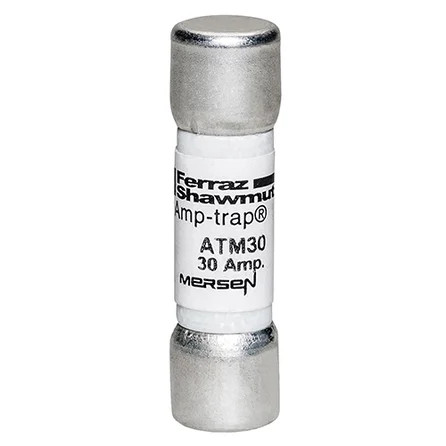

Mersen ATM30 Midget Fast-Acting Fuse 600VAC/600VDC 30A Ferrule Terminal

Mersen ATM30 Midget Fast-Acting Fuse 600VAC/600VDC 30A Ferrule Terminal

Professional Fast-Acting Circuit Protection for AC/DC Applications

The Mersen ATM30 delivers reliable fast-acting circuit protection with 30A rating and dual 600VAC/600VDC voltage capability. This midget fuse features ferrule terminals with tin-plated copper construction and GMG body insulating material for dependable performance in professional electrical applications. With 100 kA breaking capacity and clip mounting design, it provides comprehensive protection in a compact 1.5-inch form factor.

Professional Features & Benefits

• 30A Current Rating: Provides precise overcurrent protection for medium-load circuits and equipment applications.
• 600VAC/600VDC Dual Voltage: Versatile compatibility for both AC and DC electrical systems with consistent protection performance.
• 100 kA Breaking Capacity: High interrupting capability ensures reliable fault current interruption in demanding electrical environments.
• Fast-Acting Response: Quick fault detection and interruption minimizes equipment damage and system downtime.
• Ferrule Terminal Design: Tin-plated copper terminals provide secure connections and excellent conductivity for reliable operation.
• Midget Class Construction: Compact 1.5-inch length enables space-efficient installation in tight panel configurations.
• RoHS Compliant: Meets environmental standards for responsible electrical component selection and installation.

Technical Specifications

• Ac Max I R Breaking Capacity I1: 100 kA
• Ac Or Dc: AC/DC
• Ampere Rating: 30 A
• Body Insulating Material: GMG
• Connection Terminal Material: Tin-Plated Copper
• Connection Terminal Type: Ferrule
• Frequency Hz : 50/60 Hz
• Fuse Class: Midget
• Mounting Method: Clip
• Product Length: 1.5 in
• Product Weight: 0.017 lb
• Rated Voltage Ac Ul: 600 V
• Rated Voltage Dc Ul: 600 V
• Rohs Compliant: Yes
• Speed Characteristic: Fast-Acting

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Control Panels and Motor Control Centers
• Commercial Electrical Distribution Systems
• Power Supply and Converter Protection
• HVAC Equipment Circuit Protection
• Instrumentation and Control Circuit Applications
• DC Power System Protection
• Emergency Power and UPS Systems

Why Choose Mersen Quality?

Mersen delivers proven reliability through precision engineering and quality construction. The ATM30 fuse combines fast-acting protection with dual voltage capability and RoHS compliance, ensuring dependable circuit protection for professional electrical installations. The compact midget design and clip mounting system provide versatile installation options while maintaining consistent protection performance.
