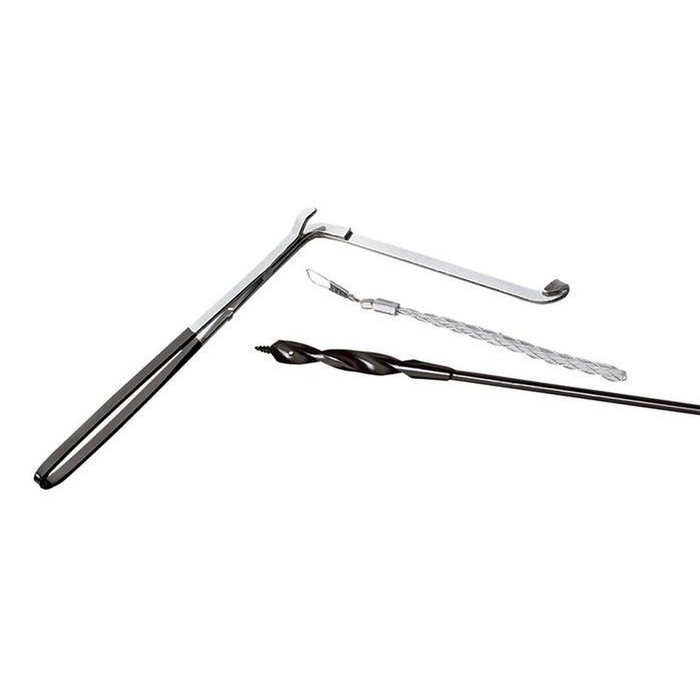

Greenlee DBITKIT D'VersiBIT Kit with 9/16" Bit, Placement Tool and Pulling Grip

Greenlee DBITKIT D'VersiBIT Kit with 9/16" Bit, Placement Tool and Pulling Grip

(No reviews yet) Write a Review

Model: DBITKIT

In Stock (leaves warehouse same day if ordered before 3pm ET)

$112.61
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Greenlee DBITKIT D'VersiBIT Kit with 9/16" Bit, Placement Tool and Pulling Grip

The Greenlee D'VersiBIT Kit is a complete wire-pulling and drilling solution built for electricians tackling atypical wiring jobs inside existing walls. This kit bundles the 09-03-54B 9/16" bit, the 712P placement tool, and the 150 pulling grip, giving installers everything needed to drill between studs and joists and then pull 1/2" OD wire or cable through the same access path without swapping tools. The D'VersiBIT system delivers all the flexibility and versatility of a traditional flexible drill bit while simplifying the frustrating, time-consuming process of fishing wire through finished walls.

Key Features

  • Complete Kit: Includes the 09-03-54B 9/16" bit, 712P placement tool, and 150 pulling grip so every tool needed to complete an atypical wiring job is in one package.
  • Bit Size: 9/16" bit sized for drilling clean access holes between studs and joists ahead of wire pulls.
  • Pulling Capacity: Pulling grip is configured for pulling 1/2" OD wire or cable once the hole is drilled.
  • Interchangeable Bit System: Works with any bit featuring a 1/4" quick-change hex shank, including spade bits, auger bits, or standard drill bits, so users can adapt the system to the job at hand.
  • Economical Replacement: Replace only the bit as it wears rather than replacing the entire bit and shaft assembly, reducing long-term tooling costs.
  • Quick-Change Pulling Grip: Switch quickly and easily from drilling mode to pulling mode using the quick-change pulling grip, cutting downtime between steps.
  • Versatile Application: Designed for use when drilling between studs and joists in existing wall cavities, ideal for renovation and remodel wiring work.

Technical Specifications

  • Sub Brand: D'VersiBIT
  • Kit Contents: 09-03-54B bit, 712P placement tool, 150 pulling grip
  • Bit Size: 9/16"
  • Wire Pulling Capacity: 1/2" OD

Typical Applications

  • Fishing Wire or Cable Through Existing Finished Walls
  • Drilling Between Studs and Joists
  • Residential and Commercial Renovation Wiring
  • Retrofit Electrical Installations
  • Combination Drilling and Pulling Jobs in Tight Wall Cavities

Why Greenlee?

Greenlee engineers the D'VersiBIT system to give electricians a single, versatile solution for drilling and pulling in confined wall cavities, cutting down the number of separate tools needed on the job. By allowing the bit to be replaced independently of the shaft and pulling grip, Greenlee helps professionals keep tooling costs down while maintaining reliable performance across atypical wiring tasks. Choose Greenlee for dependable, professional-grade tooling built for the realities of retrofit and renovation electrical work.

Manufacturer Resources

Product Specs

list_batch:
GREE-20260923
Product Type:
Fishing Tool
Series:
D'VersiBIT
Department:
Electrical
Product Subgroup:
Installation Aids
Product Size:
9/16"
Product Group:
Electrical Installation Tools

Greenlee DBITKIT – Frequently Asked Questions

1) What comes in the Greenlee DBITKIT D'VersiBIT kit?
Three pieces: the 09-03-54B 9/16 inch bit, the 712P placement tool, and the 150 pulling grip. That covers drilling the access hole between studs or joists and then pulling the wire back through the same path without changing out tools.
2) What size wire can the D'VersiBIT pulling grip handle?
The 150 pulling grip in the kit is set up for wire or cable up to 1/2 inch OD. Anything larger than that needs a different grip, so check the jacket diameter of your cable before you commit to pulling it through with this kit.
3) Can I use other drill bits with the Greenlee D'VersiBIT shaft, or only the 9/16 inch bit it comes with?
The shaft takes any bit with a 1/4 inch quick-change hex shank, so spade bits, auger bits and standard drill bits all go in. The kit ships with a 9/16 inch bit, and as that bit dulls you replace just the bit rather than the whole bit and shaft assembly.
4) Will a 9/16 inch hole be big enough for the cable I'm pulling with this Greenlee kit?
The bit bores 9/16 inch and the grip is rated for 1/2 inch OD cable, so the two are matched: 1/2 inch cable passes through a 9/16 inch hole. If your cable measures over 1/2 inch across the jacket, you need a larger bit on the 1/4 inch hex shank and a grip sized for it.
5) What does the 712P placement tool in the D'VersiBIT kit actually do?
It steers the flexible bit where you want it inside a closed wall cavity, so you can aim the drill between studs and joists instead of guessing from the access hole. That is the part of fishing wire through finished walls that normally eats the most time on a retrofit.
6) Is a flexible bit kit like the D'VersiBIT better than a fish tape for running cable in a finished wall?
They solve different halves of the job. A fish tape only moves wire through a path that already exists; the D'VersiBIT drills the path through studs and joists inside the closed cavity and then pulls the cable back through the same hole using the quick-change pulling grip. On remodel and retrofit work where you have to get through framing you cannot see, the flexible bit kit is the tool. If the pathway is already clear, a fish tape is simpler.
7) How do you switch from drilling to pulling wire with the Greenlee DBITKIT?
The 150 grip is a quick-change design, so once the hole is bored you pull the bit off the shaft and attach the grip in its place, then draw the cable back along the same path. No second access hole and no second tool run.
8) What part number do I order for the complete Greenlee D'VersiBIT wire pulling kit?
Order Greenlee DBITKIT. That is the complete D'VersiBIT kit with the 9/16 inch bit, placement tool and pulling grip; the individual pieces inside it carry their own numbers (09-03-54B bit, 712P placement tool, 150 grip).
9) Is the Greenlee DBITKIT a one-time-use tool, or can I keep it in the van long term?
It is built to be re-bitted. The bit wears first, and Greenlee sells the bit separately from the shaft and pulling grip, so you keep the 712P placement tool and the 150 grip and swap in a fresh bit. For a crew doing steady renovation wiring, that keeps the running cost down to bits.
