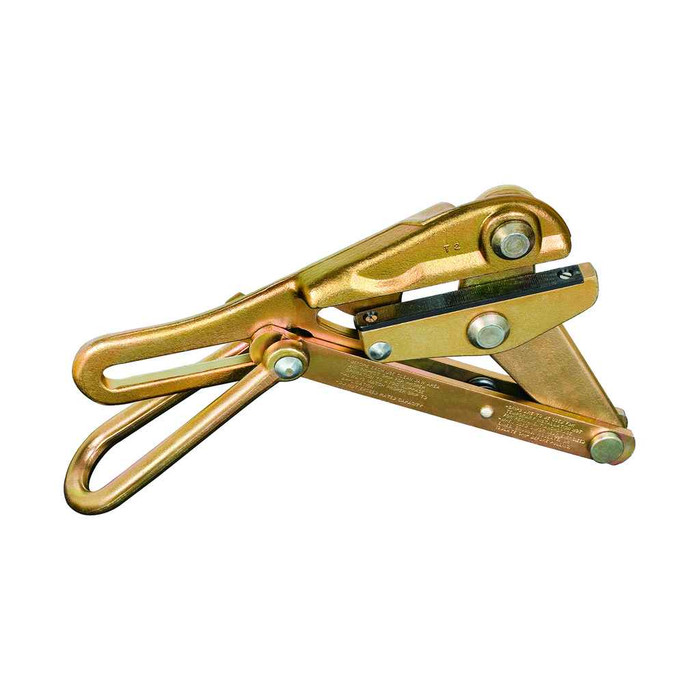

Grip for High Strength Cable
1684-5F - spec sheet
Warnings
- Always match proper size and type of grip to application.
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- Grips are to be used for temporary installation, not for permanent anchorage.
- Do not exceed rated capacity.
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
Features
- Removeable file (Replacement file Cat. No. 578 and screws Cat. No. 573)
- For larger conductors, see our grips with round inside-jaw contour
- Similar to Cat. No. 1684-5 except with a file inserted in jaw for extra gripping power. Replacement file No. 578 and screws No. 573 are also available
- Double V grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
- Locking handle keeps jaw open while grip is placed on cable with a hot stick
- Designed for cable sizes from 0.16-Inch (4.06 mm) to 0.55-Inch (13.97 mm)
- Made in USA
1684-5F - spec sheet
Manufacturer Resources
Product Specs
- Cable Diameter:
- 0.16" to 0.55" (4.06 to 13.97 mm)
- Cable Type:
- Aircraft, EHS, Messenger, Guy Strand
- Depth:
- 9.2500 in
- Height:
- 1.7600 in
- Hot Latch:
- No
- Jaw Length:
- 5" (12.7 cm)
- Jaw Type:
- Single V with File Insert
- Locking Handle:
- Yes
- Maximum Safe Load:
- 8000 lb (3629 kg)
- Spring:
- Yes
- Swing Latch:
- No
- Type:
- Chicago Grip
- Weight:
- 6.3750 lbs
- Width:
- 6.5000 in
