Klein Tools S-6H Grip-It® Strap Wrench, 1-1/2 to 5-Inch, 6-Inch L
Model: KLN-S-6H
Grip-It® Strap Wrench, 1-1/2 to 5-Inch, 6-Inch L
Warnings
Do NOT extend handle length.
Always wear approved eye protection.
Do NOT push or hammer wrench.
Features
Under normal conditions, will...
Klein Tools
$83.89
$24.84

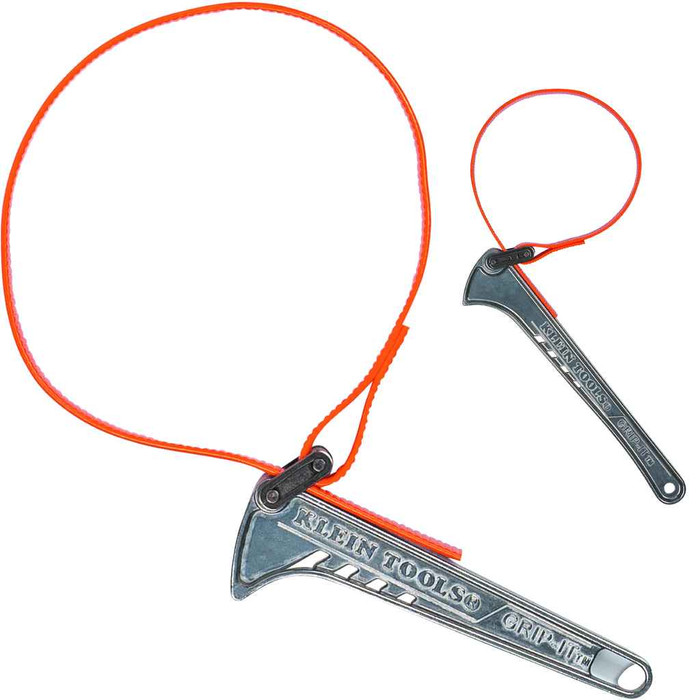

Grip-It™ Strap Wrench Kit, 6-Inch and 12-Inch Handles, 2-Piece
SHBKIT - spec sheet
Features
- Works in the tightest quarters
- Cam-action design permits uniform, high-torque application
- Also works on alternator belts, flywheels, and propeller assemblies
- Adjustability, Grip Strength
- Urethane-covered, high-strength belting attached to lightweight I-beam handle
- Strap Wrench is completely adjustable
- Under normal conditions, will not scratch, damage or deform polished pipe and fittings, plastic pipe and fittings, oil and water filters, glass pipe, PVC conduit, and polished shafts
- 6-Inch Strap Wrench adjusts from 1-1/2 to 4-Inch capacity and 12-Inch Strap Wrench adjusts from 1-1/2 to 5-Inch capacity
Warnings
- Do NOT extend handle length.
- Do NOT push or hammer wrench.
- Always wear approved eye protection.
SHBKIT - spec sheet
Manufacturer Resources
Spec Sheet
Product Specs
- Handle Length:
- S6HB - 6" (15.2 cm); S12HB - 12" (30.5 cm)
- Handle Material:
- Aluminum Die Cast
- Overall Height:
- S6HB - 1.74" (4.4 cm); S12HB - 2.4" (6.1 cm)
- Overall Length:
- S6HB - 6" (15.2 cm); S12HB - 12" (30.5 cm)
- Overall Width:
- S6HB - 0.93" (2.4 cm); S12HB - 1.51" (3.8 cm)
- Strap Length:
- S6HB - 21.25" (54 cm); S12HB - 22.25" (57 cm)
- Strap Material:
- Urethane Coated Nylon
- Strap Width:
- S6HB - 0.63" (1.6 cm); S12HB - 1" (2.5 cm)
- Department:
- Electrical
- Product Group:
- Hand Tools
- Product Subgroup:
- Hammers & Wrenches
- Product Type:
- Strap Wrench
- Product Details:
- Strap Wrench
- Product Color:
- Orange
- Product Height:
- 2.0000 in
- Product Weight:
- 1.1000 lbs
- Product Width:
- 4.2500 in
- Product Depth:
- 12.5000 in
- Country of Origin:
- China
Klein Tools SHBKIT – Frequently Asked Questions
1) What pipe diameters will the Klein SHBKIT strap wrenches grip?
Two wrenches in the kit cover different ranges. The 6-inch S6HB grips 1.5 to 4 inches OD (3.8 to 10.2 cm), and the 12-inch S12HB grips 1.5 to 5 inches OD (3.8 to 12.7 cm). Both start at 1-1/2 inches, so the shorter handle is the one to reach for in tight quarters and the longer one is what you need above 4 inches.
2) Will a strap wrench mar chrome or plastic pipe the way a pipe wrench does?
No. The Grip-It strap is urethane-coated nylon rather than serrated steel jaws, and under normal conditions it won't scratch, damage or deform polished pipe and fittings, plastic pipe and fittings, oil and water filters, glass pipe, PVC conduit, or polished shafts. That is the reason to choose a strap wrench over a pipe wrench on finished trim, chrome traps, and PVC conduit.
3) Is the Klein SHBKIT a two-piece kit, and which sizes come in it?
It ships as a 2-piece set: the S6HB with a 6-inch handle and the S12HB with a 12-inch handle. Order the SHBKIT part number and you get both, so there is nothing to add for the two capacity ranges.
4) Can I use a cheater bar on the handle for more torque on a stuck filter?
No. Klein's instructions are explicit: do not extend the handle length, and do not push or hammer the wrench. The cam-action design is what builds torque, applying it uniformly as you pull, and the aluminum die cast I-beam handle is not meant to be lengthened. Wear approved eye protection when you're leaning on it.
5) How much strap length do I have to wrap around a large-diameter part?
The 6-inch wrench carries a 21.25-inch strap (54 cm) that is 0.63 inch wide, and the 12-inch wrench a 22.25-inch strap (57 cm) at 1 inch wide. Both are fully adjustable, so you take up only the length the part needs. The wider strap on the 12-inch spreads the load over more surface, which helps on thin-wall plastic.
6) Is this only for plumbing, or will it work on automotive and shop jobs?
Beyond pipe and conduit, the Grip-It wrenches also work on alternator belts, flywheels, and propeller assemblies, plus oil and water filters. Fleet shops and maintenance techs use the same two wrenches for all of it.
7) How heavy is the Klein SHBKIT kit to carry on a tool belt?
The kit weighs 1.1 lbs total with both wrenches, since the handles are lightweight die cast aluminum I-beams rather than steel. Easy to keep in a pouch, and the orange handles make them easy to spot in a bag.
