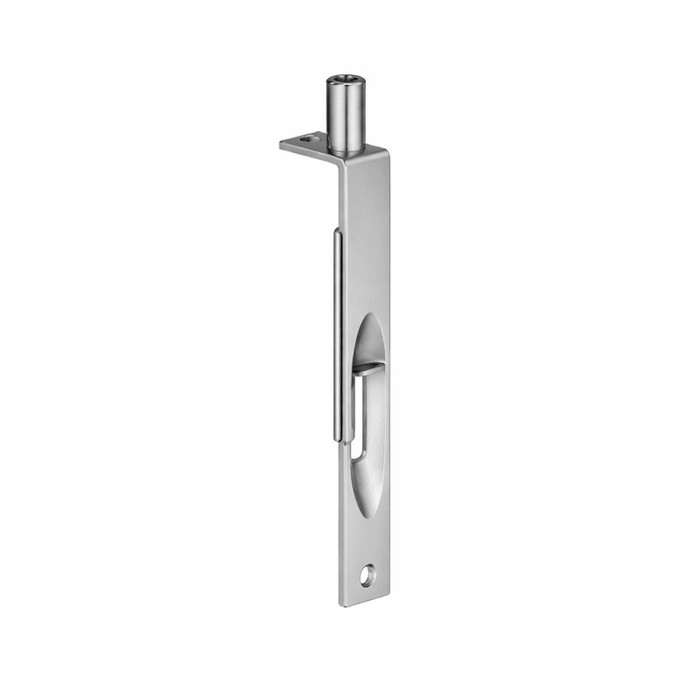

HAGER 1413 Flush Bolt - Square Corners

Hager 1413 Flush Bolt with Square Corners - Commercial Grade Door Hardware

(No reviews yet) Write a Review

Model: 1413 US15A
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$19.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hager 1413 Flush Bolt with Square Corners - Commercial Grade Door Hardware

Professional Square Corner Flush Bolt Solution

The Hager 1413 Flush Bolt delivers reliable door securing performance with square corner design for commercial applications. This flush bolt features a 1/2" bolt diameter with 15/16" throw and 3/4" x 6" brass faceplate construction. Built with brass faceplate and steel components, this flush bolt provides dependable operation with 7/16" backset and includes a 7/8" x 1-3/4" strike for complete installation.

Professional Features & Benefits

  • Precision Bolt Operation: 1/2" diameter bolt with 15/16" throw provides secure engagement for reliable door positioning.
  • Commercial-Grade Construction: Brass faceplate with steel components delivers durability for demanding commercial applications.
  • Compact Profile Design: 3/4" x 6" faceplate dimensions with 7/16" backset accommodate standard door preparations.
  • Complete Hardware Package: Includes four #6 x 3/4" FPHWS fasteners and 7/8" x 1-3/4" strike for ready installation.
  • Square Corner Design: Clean square corner profile provides professional appearance for modern architectural applications.
  • Multiple Finish Options: Available in US3, US4, 10A, 10R, US15, and US26D finishes to match existing hardware.
  • Standard Door Compatibility: Designed for flush mounting in standard door preparations with minimal modification required.

Technical Specifications

  • Bolt Diameter: 1/2" (13 mm)
  • Bolt Throw: 15/16" (24 mm)
  • Commercial/Residential: Commercial
  • Faceplate: 3/4" x 6" (19 mm x 181 mm)
  • Fasteners: Four #6 x 3/4" FPHWS
  • Finishes: US3, US4, 10A, 10R, US15, US26D
  • Material: Brass faceplate with steel components
  • Notes: Backset: 7/16" (11 mm)
  • Strike Dimension: 7/8" x 1-3/4"
  • Strike Size: 7/8" x 1-3/4" (22 mm x 45 mm)
  • Subcategory: Door Thresholds

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness and proper routing for the 3/4" x 6" faceplate with 7/16" backset.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surface for flush bolt and strike positioning.
  3. Prepare door by routing the flush bolt pocket and drilling required holes for the four #6 x 3/4" FPHWS fasteners per manufacturer specifications.
  4. Install flush bolt hardware and secure the device to door using provided fasteners per manufacturer torque specifications.
  5. Install the 7/8" x 1-3/4" strike in the corresponding door frame or adjacent door leaf ensuring proper alignment with bolt throw.
  6. Test flush bolt operation to verify proper function, smooth bolt extension and retraction, and secure engagement with strike. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Hager Quality?

Hager flush bolt products deliver professional-grade reliability with brass faceplate and steel component construction engineered for commercial applications. The 1413 model provides precise 1/2" bolt operation with 15/16" throw for dependable door securing performance. Engineered for demanding commercial applications where consistent operation and durable construction are essential.

Manufacturer Resources

Product Template

Product Specs

Fasteners:
Four #6 x 3/4" FPHWS
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Thresholds
Commercial/Residential:
Commercial
Product Type:
Flush Bolts
Subcategory:
Door Thresholds
Product Model:
1413
Face Plate:
3/4" x 6"
Strike Dimension:
7/8" x 1-3/4"
Product Substrate:
Brass
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Hager 1413 US15A – Frequently Asked Questions

1) Will the Hager 1413 flush bolt work on my inactive door leaf, and what strike do I need in the frame?
The 1413 is a manual flush bolt for the inactive leaf of a pair. It throws a 1/2 inch diameter bolt 15/16 inch, and it ships with its own 7/8 x 1-3/4 inch strike, so you are not sourcing a strike separately. Route the head or sill for that strike and line it up with the bolt throw. Four #6 x 3/4 inch flat phillips head wood screws come in the box.
2) What size mortise pocket does the Hager 1413 flush bolt need in the door edge?
Prep for a 3/4 x 6 inch faceplate with a 7/16 inch backset. That backset is shallow compared with most flush bolts, so the bolt case sits close to the door face. Check the edge of the leaf you are cutting before you rout, because a pocket cut for a deeper backset bolt will leave this one sitting proud of the mortise.
3) Will the 15/16 inch throw on the Hager 1413 reach my existing strike?
15/16 inch of throw off a 7/16 inch backset gives you more reach than most manual bolts in this class, which helps where the head frame sits slightly off the door face or the floor prep is deep. If you are replacing a bolt with a shorter throw, the old strike pocket may be too shallow for the extra travel, so deepen it. The Ives FB358 and the ABH 1855S single both throw 3/4 inch, and the IDC FB-1202 throws 5/8 inch, so none of those strike preps will be deeper than what the 1413 needs.
4) How many Hager 1413 flush bolts do I need per pair of doors?
Two per pair in most cases, one at the head and one at the sill of the inactive leaf, since the 1413 is a single bolt with one 3/4 x 6 inch faceplate, one 7/8 x 1-3/4 inch strike, and one set of four screws per unit. Order two if you are bolting top and bottom. If you only need the head, one is enough, but a single top bolt leaves the bottom of the leaf free to flex.
5) Square corner or radius corner flush bolt, does it matter which I order?
It has to match the mortise already cut in the door edge. The Hager 1413 has square corners, so it drops into a square cut pocket, which is what a router with a chisel cleanup or a factory metal door prep usually leaves. A radius corner plate sits in a pocket left round by a router bit alone. The Trimco 3999SE is a 6 inch square end corner mount and the Trimco 3999 is the same 6 inch corner mount with a rounded end, so on a retrofit, look at the old plate before you pick.
6) The doors are hollow metal, not wood - which flush bolt fits?
Several in the set are called out for metal doors. The ABH 1855S is a manual flush bolt single for metal doors with a 3/4 inch throw, the ABH 1854 Series is a manual flush bolt set with fire bolt for metal doors, and the Ives FB457 is a manual flush bolt with a 12 inch rod length for metal doors. Rod-style bolts like the FB457 mount in the leaf channel of a hollow metal door rather than in a routed edge pocket, which is the distinction to check against the door construction before you order.
7) Is there a flush bolt that can be locked or released with a key?
Yes, but not the Hager 1413, which is a manually operated flush bolt. For key control, the Adams Rite 1870 Series is a cylinder-operated flushbolt with key control, and the Adams Rite 1877 is a cylinder-operated flushbolt for paired wood doors. A cylinder-operated bolt lets you throw or retract the inactive leaf from outside the opening without opening the active leaf, which is what a locksmith specifies when the inactive leaf needs to stay under key control rather than being set by hand from the door edge.
8) What is the closest square-end flush bolt to the Hager 1413?
The Trimco 3999SE is the nearest match in form. It is a 6 inch corner mount flushbolt with a square end, the same square corner profile and 6 inch faceplate length as the Hager 1413, which carries a 3/4 inch x 6 inch faceplate. Both are manual flush bolts intended for the inactive leaf of a pair. The Hager 1413 comes with a 7/8 inch x 1-3/4 inch strike and four #6 x 3/4 inch FPHWS fasteners, and is offered in 605 bright brass, 609 antique brass, 620 antique nickel, 625 bright chrome and 626 satin chrome.
9) I need a flush bolt with rounded corners instead of square - what should I order?
Two rounded-end options cover that. The Trimco 3999 is a 6 inch corner mount flushbolt with a rounded end, and the Orca Hardware 86SQ is a 6 inch flush bolt with radius corners. Both share the 6 inch faceplate length of the Hager 1413, which has a 3/4 inch x 6 inch faceplate with a square corner profile. Match the corner shape to the door edge prep already cut - a square corner bolt will not seat cleanly in a radiused pocket and the reverse leaves a gap.
10) How does the backset on the Hager 1413 compare to other flush bolts?
The Hager 1413 has a 7/16 inch backset. The International Door Closers FB-1202 is a square end flush bolt with a 7/8 inch backset, a 5/8 inch throw, 1/8 inch offset, a positive U joint actuator and a guide. Backset sets where the bolt centerline falls relative to the door face, so a 7/16 inch and a 7/8 inch bolt land in different positions in the frame or sill - the strike prep has to follow whichever you install, and the two are not interchangeable in an existing prep.
11) Manual flush bolt or automatic flush bolt for a pair of doors, which should I order?
Manual, like the Hager 1413, means someone slides the bolt by hand to secure the inactive leaf, and slides it back to open both leaves. It is simpler and there is less to fail. Automatic sets throw the bolt when the inactive leaf closes, which is what you want where the public or staff will not reliably operate a bolt. The Ives FB41 set for wood doors and the ABH 1860P/1862P pair are the automatic route. Cylinder operated is a third option: the Adams Rite 1877 for paired wood doors lets you key the inactive leaf.
12) What finishes does the Hager 1413 flush bolt come in, and will it match my existing door hardware?
Five finishes: 605 bright brass, 609 antique brass, 620 antique nickel, 625 bright chrome, and 626 satin chrome. For a building standardized on satin chrome, which is the usual commercial default, 626 is your match. The faceplate is brass, so the finish sits on brass rather than plated steel, and the visible part of the bolt is the 3/4 x 6 inch plate on the door edge.
13) What is the closest substitute if the Hager 1413 is not the right shape for my door prep?
Stay with a 6 inch square end bolt and the plate lines up the same way: the Trimco 3999SE is a 6 inch corner mount square end flushbolt, and the Delaney 4108 is a 6 inch square end solid brass flush bolt. If the existing pocket is radiused, the Orca 86SQ is a 6 inch flush bolt with radius corners and the Trimco 3999 is the 6 inch rounded end. For a longer plate, the Delaney 4101 is a 7 inch slide type mortise bolt.
14) Which flush bolt gives the same 1/2 inch bolt diameter as the Hager 1413?
The Ives FB358 manual flush bolt has a 1/2 inch bolt diameter, matching the Hager 1413, and a 3/4 inch throw against the 1413's 15/16 inch throw. The extra throw on the Hager engages deeper into the strike, which matters where the head frame or threshold prep is cut deep or where the leaves run slightly out of alignment. Both are manually operated.
15) What if I need the top and bottom bolts to throw together as one unit?
The Hager 1413 is a single flush bolt, one per location, mounted with four #6 x 3/4 inch FPHWS fasteners and its own 7/8 inch x 1-3/4 inch strike. For a single operation that throws both points, the Adams Rite MS1880/MS1881 are two-point flushbolts with an interlock mechanism, and the Adams Rite MS2180 Series is an auto-release two-point flushbolt with a Smartlock mechanism. Two-point sets secure head and sill from one control, which is the difference to weigh when a hand set at each end of the leaf is not acceptable.
16) Is the ABH 1858 a substitute for the Hager 1413?
No, they do different jobs. The ABH 1858 is a universal bottom fire bolt, manually operated - a bottom-specific fire bolt. The Hager 1413 is a general purpose manual flush bolt with a 3/4 inch x 6 inch faceplate, 1/2 inch bolt and 15/16 inch throw, supplied with its own strike. Ordering the 1858 expecting a plain top or bottom flush bolt gets you a bottom fire bolt, so confirm what the opening actually calls for before substituting.
17) What is a solid brass alternative to the Hager 1413?
The Delaney 4108 is a 6 inch square end solid brass flush bolt - same 6 inch length and square end as the Hager 1413, which uses a brass faceplate with steel components and carries a 3/4 inch x 6 inch faceplate. The Delaney is solid brass throughout rather than a brass faceplate over steel working parts. Emtek also offers flush bolts if you are matching a decorative hardware suite across the opening.
18) I need a longer flush bolt than 6 inches - what are the options?
The Hager 1413 faceplate is 3/4 inch x 6 inch. For a longer plate, the Delaney 4101 is a 7 inch slide type mortise-in flush bolt and the Delaney 4363 is a 7 inch mortise extension flush bolt. Where the reach rather than the plate is the constraint, the Ives FB457 uses a 12 inch rod for metal doors. Longer plates and rods put the operating lever within easier reach when the bolt sits high on the leaf.
19) Do I need an automatic flush bolt or will a manual one like the Hager 1413 do?
The Hager 1413 is manual - the bolt is thrown and retracted by hand at the door edge. Automatic bolts release when the active leaf closes against them: the ABH 1860P/1862P is an automatic flush bolt pair, the Ives FB41 is an automatic flush bolt set for wood doors, and the Ives FB42 is a top automatic flush bolt for wood doors. Manual bolts suit an inactive leaf that stays latched most of the time; automatic bolts suit a pair where both leaves get used and no one will reach down to set a bolt each cycle.
20) Is the Hager 1413 flush bolt heavy enough for a commercial building, or is it a residential part?
Hager lists the 1413 as commercial. The plate is brass with steel internal components, and at 3/4 x 6 inches it is a compact bolt rather than a long extension type. For MRO buyers standardizing across a facility, note that it is a single bolt with a fixed 7/16 inch backset and 3/4 x 6 inch plate, so once you spec it, every opening in the program takes the same prep and the same 7/8 x 1-3/4 inch strike.
