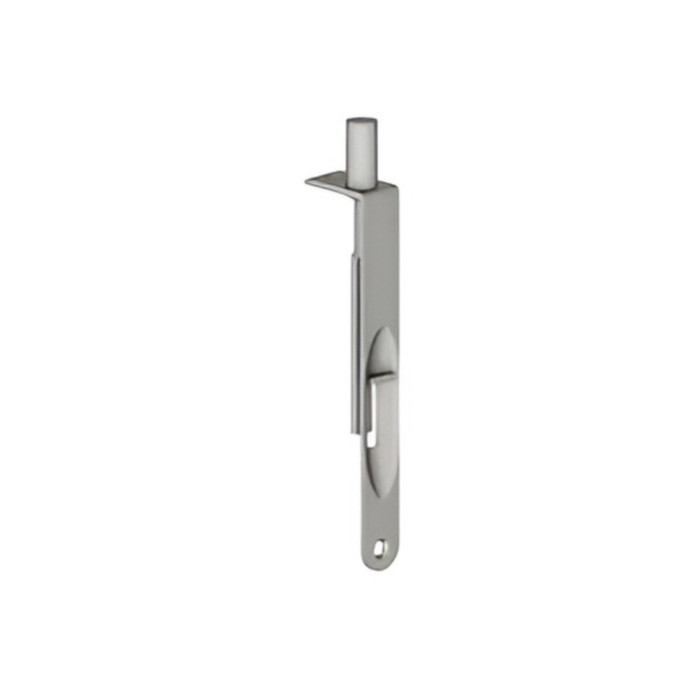

Hager 1414 Round Corner Residential Flushbolt HAG-1414

Hager 1414 Round Corner Residential Flush Bolt with Brass Faceplate

(No reviews yet) Write a Review

Model: 1414 26D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$10.96
$10.64
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hager 1414 Round Corner Residential Flush Bolt with Brass Faceplate

Professional Surface Bolt Solution for Residential Applications

The Hager 1414 Round Corner Residential Flush Bolt delivers reliable door securing functionality with a 1/2" bolt diameter and 15/16" throw distance. This surface-mounted bolt features a brass faceplate measuring 3/4" x 6" with steel internal components for durability. The unit includes a 7/8" x 1-3/4" strike and mounts with four #6 x 3/4" fasteners for secure installation.

Professional Features & Benefits

  • Robust Bolt Operation: 1/2" diameter bolt with 15/16" throw provides secure engagement for reliable door positioning.
  • Durable Construction: Brass faceplate with steel internal components ensures long-lasting performance in residential applications.
  • Compact Faceplate Design: 3/4" x 6" faceplate dimensions provide low-profile installation while maintaining operational strength.
  • Complete Strike System: Includes 7/8" x 1-3/4" strike for proper bolt engagement and alignment.
  • Secure Mounting: Four #6 x 3/4" flat head Phillips wood screws provide reliable attachment to door surfaces.
  • Precise Backset: 7/16" backset allows for accurate positioning relative to door edge for optimal operation.
  • Round Corner Design: Rounded corner profile reduces snag points and provides clean aesthetic appearance.

Technical Specifications

  • Bolt Diameter: 1/2" (13 mm)
  • Bolt Throw: 15/16" (24 mm)
  • Commercial/Residential: Residential
  • Door Strike: 7/8" x 1-3/4" (22 mm x 45 mm)
  • Faceplate: 3/4" x 6" (19 mm x 181 mm)
  • Fasteners: Four #6 x 3/4" FPHWS;
  • Material: Brass faceplate with steel components
  • Notes: Backset: 7/16" (11 mm)
  • Strike Size: 7/8" x 1-3/4" (22 mm x 45 mm)
  • Subcategory: Flush Bolts

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness and mounting surface suitability for this flush bolt application.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surface and corresponding strike location on frame.
  3. Prepare door by drilling required pilot holes for the four #6 x 3/4" mounting screws at marked locations.
  4. Install the flush bolt to door surface using provided fasteners and secure strike to frame per manufacturer specifications.
  5. Adjust bolt alignment for proper engagement with strike and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Residential Entry Doors
  • Interior Door Security
  • Multi-Family Housing Units
  • Apartment and Condominium Buildings
  • Single-Family Home Applications
  • Residential Security Enhancement
  • Door Positioning and Control

Why Choose Hager Quality?

Hager flush bolt products deliver professional-grade reliability with brass and steel construction engineered for consistent residential performance. The 1414 model combines durable materials with precise manufacturing to ensure dependable door securing functionality. Designed for demanding residential applications where reliable door control and security are essential.

Manufacturer Resources

Product Template

Product Specs

Subcategory:
Flush Bolts
Product Group:
Door Trim and Accessories
Product Subgroup:
Surface, Barrel and Dutch Door Bolts
Product Type:
Surface Bolts
Commercial/Residential:
Residential
Product Model:
1414
Face Plate:
3/4" x 6" (19 mm x 181 mm)
Door Strike:
7/8" x 1-3/4" (22 mm x 45 mm)
Product Category:
Door Trim and Accessories
Product Substrate:
Brass and Steel
Department:
Door Hardware

Hager 1414 26D – Frequently Asked Questions

1) How deep does the Hager 1414 bolt throw, and will it reach a standard frame strike?
The bolt is 1/2 inch in diameter and throws 15/16 inch, and it ships with its own 7/8 x 1-3/4 inch strike. Because the throw is under an inch, the strike has to sit close to the bolt: the 7/16 inch backset positions the bolt relative to the door edge, so the frame or sill strike needs to line up within that geometry. If you need a longer reach into a header or threshold, the Ives SB360 throws 1-1/4 inches and the Ives SB1600 throws 3-1/2 inches.
2) How much room do I need on the door stile for the Hager 1414?
The faceplate measures 3/4 x 6 inches, so you need a flat run of at least 6 inches along the stile or rail and 3/4 inch of width for the plate. Mounting is on the surface, not mortised, with a 7/16 inch backset off the door edge. On a narrow glass-front or French door stile, measure the flat before you order.
3) The Hager 1414 is residential duty - what surface bolt should I use on a fire rated door instead?
The Hager 1414 is a residential flush bolt with a brass faceplate and steel components, and it carries no fire rating. For a fire rated opening, look at the Ives SB1600 heavy duty steel surface bolt, which has a 3-1/2 inch throw and is fire rated, or the Ives SB1640 surface bolt, a fire rated brass unit with a 1 inch throw. The Ives SB1630 is listed at a 3-hour UL fire rating with a 1 inch throw. Any of the three answers the fire door requirement that the 1414 does not address.
4) I need more than the 15/16 inch throw the Hager 1414 gives me - what has a longer bolt?
The Hager 1414 throws 15/16 inch from a 1/2 inch diameter bolt, which suits a residential inactive leaf with a tight frame reveal. For deeper engagement, the Ives SB1600 heavy duty steel surface bolt throws 3-1/2 inch, and the Ives SB360 heavy-duty steel surface bolt throws 1-1/4 inch and comes in a 12 inch length. The Ives SB1630 and SB1640 each throw 1 inch. Confirm your strike pocket depth before moving up in throw.
5) Is there a surface bolt that locks or latches on its own, unlike the Hager 1414?
The Hager 1414 is a manually thrown bolt - you slide it into the 7/8 inch by 1-3/4 inch strike and it stays where you set it. If you want the bolt to hold itself, the ABH HD1805 heavy duty surface bolt uses an auto-locking 3/4 inch stainless steel bar. If you need a key to release it, the Ives SB1630 is a heavy duty steel locking surface bolt with keyed security and a 1 inch throw.
6) What comes in the box with the Hager 1414 surface bolt, and do I need anything else?
Bolt, faceplate, the 7/8 x 1-3/4 inch strike, and four #6 x 3/4 inch flat head Phillips wood screws. Nothing else is required for a standard wood door and frame beyond a drill for pilot holes. Since the screws are wood screws, a metal door or frame means sourcing your own fasteners.
7) What finishes does the Hager 1414 flush bolt come in for matching other hardware in a unit?
Six finishes: 605 Bright Brass, 609 Antique Brass, 619 Satin Nickel, 620 Antique Nickel, 626 Satin Chrome, and 641 Satin Bronze Blackened. Those are standard BHMA finish codes, so matching them to lever sets and hinges already in an apartment or condo is a straight code-to-code comparison.
8) Is the Hager 1414 solid brass all the way through?
No. The faceplate is brass; the internal components are steel. So the visible finish is brass, but the working parts are not. If you want solid brass throughout, the Emtek 8511 and the Delaney solid brass surface bolt are both built that way.
9) Can I use the Hager 1414 to hold the inactive leaf of a French door pair?
Yes, that is the common use. It surface mounts on the inactive leaf and throws into the supplied strike at the head or the sill, holding that leaf fixed while the active leaf swings. Two bolts, one top and one bottom, is the usual setup. Note the 15/16 inch throw is short, so the head and sill strikes need accurate layout.
10) Does the Hager 1414 lock, or is it just a holding bolt?
It is a manually operated holding bolt with no key cylinder. It keeps a leaf in position but there is no keyed security. If you need a bolt that locks with a key, the Ives SB1630 is a locking surface bolt with keyed security and a 1 inch throw.
11) For a visible surface bolt on a decorative door, what looks better than the Hager 1414?
The Hager 1414 has a 3/4 inch by 6 inch brass faceplate with a round corner profile and comes in 605 bright brass, 609 antique brass, 619 satin nickel, 620 antique nickel, 626 satin chrome and 641 satin bronze blackened. If you want a heavier decorative look, the Emtek 8511 is a solid brass surface bolt in a 6 inch length, and Delaney offers a solid brass surface bolt as well as a decorative solid brass surface bolt. Those are solid brass throughout rather than a brass faceplate over steel internals.
12) We spec Trimco on our commercial jobs - what is their equivalent to the Hager 1414?
Trimco's counterpart is the 4800 Series surface bolt. The Hager 1414 is the residential grade option, with a 3/4 inch by 6 inch brass faceplate, 1/2 inch bolt and 15/16 inch throw, mounting with four #6 by 3/4 inch flat head Phillips wood screws. If your specification calls out a commercial line, the Trimco 4800 Series is the direct swap in the same surface bolt family.
13) Will a Hager 1414 hold up on an apartment building's inactive door leaf, or do I need heavy duty?
The Hager 1414 is rated residential and is built as a brass faceplate over steel components, which suits apartment and condominium interior leaves and residential entry doors. For a high-traffic or abused opening, the heavy duty options are the ABH HD1805, the Ives SB1600, the Ives SB1630 and the Ives SB360, all of which are listed as heavy duty. Match the choice to the traffic rather than the door type alone.
