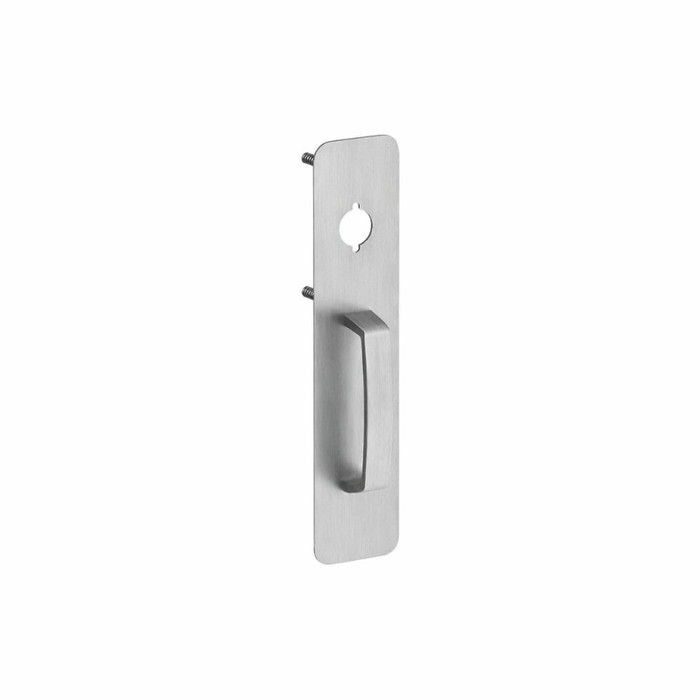

Hager 45PN Grade 1 Dummy Exit Device Trim, Nightlatch Pull, Non-Handed

Hager 45PN Grade 1 Dummy Exit Device Trim with Nightlatch Pull

(No reviews yet) Write a Review

Model: 45PN US26D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$196.31
$142.15
Adding to cart… The item has been added
Bulk Pricing:
Buy in bulk and save

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 79 - 118 and get 7% off
  • Buy 119 - 157 and get 15% off
  • Buy 158 - 236 and get 22% off
  • Buy 237 or above and get 31% off
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hager 45PN Grade 1 Dummy Exit Device Trim with Nightlatch Pull

Professional Grade 1 Exit Device Trim Solution

The Hager 45PN Grade 1 Dummy Exit Device Trim provides professional nightlatch pull functionality for commercial applications. This non-handed trim features a 3" x 14" escutcheon with 1-3/4" projection and 5-1/2" pull center-to-center spacing. Compatible with 4500 series rim, SVR, LBR, and CLB devices, this Grade 1 rated trim requires a rim cylinder for operation and includes a retaining cup for 161 door preparation. Backed by a lifetime warranty for reliable commercial performance.

Professional Features & Benefits

  • Grade 1 Commercial Rating: BHMA Grade 1 certification ensures heavy-duty performance for high-traffic commercial applications.
  • Precise Dimensions: 3" x 14" escutcheon with 1-3/4" projection and 5-1/2" pull CTC for consistent installation requirements.
  • Series Compatibility: Designed for use with 4500 rim, SVR, LBR, and CLB devices for versatile installation options.
  • Professional Construction: Zinc, stainless steel, and aluminum substrate materials provide exceptional durability for commercial environments.
  • ADA Compliant Design: Meets accessibility requirements for commercial building compliance.
  • Key Retraction Function: Function 03 operation allows key to retract latchbolt for secure access control.
  • Complete Installation Kit: Supplied with retaining cup for use with 161 door preparation for streamlined installation.
  • Lifetime Warranty: Manufacturer lifetime warranty provides long-term protection and confidence.

Technical Specifications

  • ADA Compliant: Yes
  • Applications: For use with 4500 Rim, SVR, LBR, CLB devices (not for use with CVR)
  • Commercial/Residential: Commercial
  • Cylinder and Keyways: Requires the use of a Rim cylinder (sold separately)
  • Door Thickness: 1-3/4"
  • Escutcheons: 3" x 14" (76mm x 356mm)
  • Finishes: US3, US4, US10B, US26, US26D, US32D, BLK
  • Functions: 03 - Key retracts latchbolt
  • Notes: Supplied with retaining cup for use with 161 door prep
  • Plate Size: 3" x 14"
  • Projection: 1-3/4" (45 mm)
  • Pull CTC: 5-1/2" (140 mm)
  • Subcategory: Exit Devices and Trim
  • Warranty: Lifetime

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including 1-3/4" door thickness and compatibility with 4500 series exit devices.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surface for 161 door preparation.
  3. Prepare door by drilling required holes and routing as specified in manufacturer instructions, utilizing the included retaining cup.
  4. Install rim cylinder (3901 series) and all mounting hardware, securing the trim to door per manufacturer torque specifications.
  5. Adjust operational components for proper alignment and smooth key operation with Function 03 latchbolt retraction.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Hager Quality?

Hager exit device trim products deliver professional-grade reliability with zinc, stainless steel, and aluminum construction rated for Grade 1 commercial performance. Lifetime warranty coverage provides added confidence and long-term protection. Engineered for demanding commercial applications where dependable access control and ADA compliance are essential.

Product Specs

ADA Compliant:
Yes
Product Group:
Exit Devices Trims
Product Subgroup:
Exit Devices - Trim
Product Type:
Exit Device Trims
Subcategory:
Exit Devices and Trim
Commercial/Residential:
Commercial
Pull CTC:
5-1/2"
Plate Size:
3” x 14”
Cylinder and Keyways:
Requires 3901 Rim Cylinder
Product Model:
45PN
Product Function:
Night Latch
Door Thickness Range:
1-3/4"
Product Projection:
1-3/4"
Product Substrate:
Zinc, Stainless Steel, Aluminum
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Hager 45PN US26D – Frequently Asked Questions

1) Will the Hager 45PN nightlatch pull trim work with a concealed vertical rod exit device?
No. The 45PN is built for Hager 4500 series rim, SVR, LBR and CLB devices, and it is specifically not for use with CVR devices. If your opening has concealed vertical rods, you need the trim Hager specifies for CVR, not this one.
2) Does the Hager 45PN trim come with a cylinder?
No cylinder is included. The 45PN takes a rim cylinder, and Hager calls out the 3901 rim cylinder for it. Order the cylinder separately in the keyway and keying you need so the key retracts the latchbolt as intended.
3) Will the 45PN cover an existing 161 cylinder prep in the door?
Yes, it ships with a retaining cup for 161 door prep, so the standard 161 cylinder hole is handled without extra parts. The escutcheon itself is 3 x 14 inches, which gives you coverage over the prep area.
4) Do I have to specify handing when ordering the 45PN pull trim?
No handing to call out. The 45PN nightlatch pull is non-handed, so one part covers left and right hand openings. What you do need to specify is finish and the rim cylinder.
5) What does Function 03 mean on this Hager exit trim?
Function 03 is nightlatch: the key retracts the latchbolt, so the door stays locked from outside and is entered by key only. There is no lever or thumbpiece to operate the device, just the pull and the cylinder. Egress is always free from the inside through the exit device itself.
6) How far does the Hager 45PN pull stick out from the door, and will it clear a wall or adjacent door?
Projection is 1-3/4 inches (45 mm) off the face of the door, with 5-1/2 inches center to center on the pull. On a pair of doors or a door next to a return wall, use the 1-3/4 inch figure to check swing clearance before you set the stop.
7) Is the Hager 45PN trim rated for high traffic institutional openings?
It carries a BHMA Grade 1 rating and is a commercial-duty part, built from zinc, stainless steel and aluminum. Grade 1 is the heaviest duty level in the BHMA scale, which is what schools, hospitals and municipal buildings typically spec.
8) Is the Hager 45PN ADA compliant for an accessible entry?
Yes, the 45PN is listed as ADA compliant. Worth noting the operation: it is a pull with key retraction only, so the accessible opening still depends on how the door is used from the exterior side.
9) What finishes can I get the Hager 45PN nightlatch trim in to match other doors in my building?
Six finishes are offered: 605 bright brass, 606 satin brass, 613 oil-rubbed satin bronze, 625 bright chrome, 626 satin chrome, and 630 satin stainless steel. For most commercial openings 626 or 630 is what matches existing hardware.
10) Can I add a tactile warning or antimicrobial coating to the Hager 45PN trim?
Both are available as options when you order. Tactile warning is the knurled surface used to flag hazardous-area doors, and antimicrobial coating is the usual add for healthcare and food service openings.
