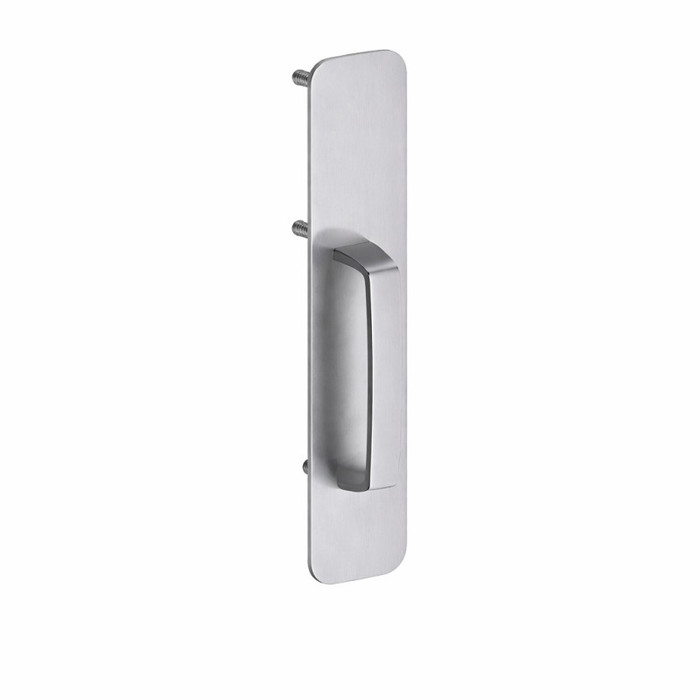

Hager 45PD Grade 1 Dummy Exit Device Trim with Non-Handed Pull

Professional Grade 1 Exit Device Trim Solution

The Hager 45PD Grade 1 Dummy Exit Device Trim provides professional-grade dummy pull functionality for commercial exit device applications. This non-handed trim features a 3" x 14" escutcheon with 1-3/4" projection and 5-1/2" pull center-to-center spacing. Compatible with 4500 Series Rim, SVR, LBR, and CLB devices, this Grade 1 rated trim is constructed from zinc, stainless steel, and aluminum for commercial durability.

Professional Features & Benefits

  • Grade 1 Commercial Rating: BHMA Grade 1 certification ensures superior durability and performance for high-traffic commercial applications.
  • Universal Compatibility: Designed for use with 4500 Series Rim, SVR, LBR, and CLB exit devices for versatile installation options.
  • Standard Escutcheon Size: 3" x 14" (76mm x 356mm) escutcheon provides professional appearance and proper coverage.
  • Optimal Pull Dimensions: 1-3/4" (45mm) projection with 5-1/2" (140mm) center-to-center spacing for comfortable operation.
  • Multi-Material Construction: Zinc, stainless steel, and aluminum construction provides exceptional durability for demanding commercial environments.
  • ADA Compliant Design: Meets ADA accessibility requirements for barrier-free operation in commercial facilities.
  • Non-Handed Configuration: Universal design eliminates handing concerns for simplified ordering and installation.
  • Lifetime Warranty: Comprehensive lifetime warranty coverage provides long-term confidence and protection.

Technical Specifications

  • ADA Compliant: Yes
  • Applications: For use with 4500 Rim, SVR, LBR, CLB devices (not for use with CVR)
  • Commercial/Residential: Commercial
  • Door Thickness: 1-3/4"
  • Escutcheons: 3" x 14" (76mm x 356mm)
  • Finishes: US3, US4, US10B, US26, US26D, US32D, BLK
  • Functions: 02 - Pull when device is dogged down
  • Plate Size: 3" x 14"
  • Projection: 1-3/4" (45mm)
  • Pull CTC: 5-1/2" (140mm)
  • Subcategory: Exit Devices and Trim
  • Warranty: Lifetime

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Hager Quality?

Hager exit device trim products deliver professional-grade reliability with multi-material construction featuring zinc, stainless steel, and aluminum components rated for commercial applications. Lifetime warranty coverage provides added confidence and long-term protection. Engineered for demanding commercial applications where dependable performance and ADA compliance are essential.

Product Specs

ADA Compliant:
Yes
Product Group:
Exit Devices Trims
Product Subgroup:
Exit Devices - Trim
Product Type:
Exit Device Trims
Subcategory:
Exit Devices and Trim
Commercial/Residential:
Commercial
Pull CTC:
5-1/2"
Plate Size:
3” x 14”
Product Model:
45PD
Product Function:
Dummy
Door Thickness Range:
1-3/4"
Product Projection:
1-3/4"
Product Substrate:
Zinc, Stainless Steel, Aluminum
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Hager 45PD US26D – Frequently Asked Questions

1) Will the Hager 45PD dummy pull trim work with a concealed vertical rod exit device?
No. The 45PD is for Hager 4500 Series Rim, SVR (surface vertical rod), LBR (less bottom rod) and CLB devices. It is specifically not for use with CVR concealed vertical rod devices. If your opening has a CVR device, you need the trim Hager specifies for that configuration instead.
2) What does a dummy pull trim on an exit device actually do?
The 45PD is function 02: a pull only, with no latch retraction of its own. It gives you a grip on the outside of the door for when the exit device is dogged down, so the door pulls open freely. When the device is not dogged, the door stays secure and the pull does nothing. If you need outside entry with a key, you want a keyed lever or thumbpiece trim, not a dummy pull.
3) Is the Hager 45PD trim ADA compliant and rated for high traffic?
It is ADA compliant and BHMA Grade 1, the top commercial grade, which is why it holds up on school, hospital, and office entries. Construction is zinc, stainless steel, and aluminum.
4) Do I need to specify left or right hand when ordering the Hager 45PD pull trim?
No handing to specify. The 45PD is non-handed, so one part works on either a left or right hand door. The only thing you pick is finish.
5) How much room does the Hager 45PD pull stick out from the door face?
Projection is 1-3/4 inches off the escutcheon, with 5-1/2 inch center-to-center on the pull. That matters where the door swings toward a wall, a return, or another leaf in a vestibule, and it matters for the clear width at the pull side.
6) Will the 45PD escutcheon cover the old trim holes on my door?
The escutcheon plate is 3 by 14 inches (76mm x 356mm), so it covers a narrow vertical band on the door face. If you are swapping from another trim, compare that footprint against the existing prep before you pull the old plate: anything outside 3 inches wide will still show.
7) What finishes does the Hager 45PD dummy trim come in, and will it match my other exit hardware?
Six finishes are offered: 605 bright brass, 606 satin brass, 613 satin bronze oil-rubbed, 625 bright chrome, 626 satin chrome, and 630 satin stainless steel. For a building standardized on brushed stainless commercial hardware, 630 is the usual match; 626 satin chrome is the common pairing with US26D devices.
8) Can I get the 45PD pull with an antimicrobial coating or tactile warning for a healthcare job?
Yes, both are available as add-on options on the 45PD: antimicrobial coating, which is the one facilities ask for on patient-area doors, and a tactile warning surface for hazardous-door identification. Select them with the finish when you order.
