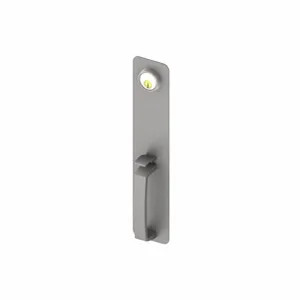

Hager 45PT Grade 1 Classroom Exit Device Trim with Auxiliary Thumbturn Control

Professional Classroom Security Solution

The Hager 45PT Grade 1 Classroom Exit Device Trim provides secure classroom lockdown functionality with auxiliary thumbturn control for 4500 Rim Exit Devices. This non-handed trim features a 3" x 14-5/8" escutcheon with 1-3/4" projection and 5-1/2" pull center-to-center spacing. Designed specifically for 1-3/4" door thickness with ADA compliant operation and lifetime warranty coverage.

Professional Features & Benefits

  • Grade 1 Construction: Commercial-grade durability with zinc, stainless steel, and aluminum substrate materials for demanding educational environments.
  • Classroom Security Function: Key locks or unlocks thumb piece (Function 05) providing controlled access for classroom lockdown applications.
  • Precise Dimensions: 3" x 14-5/8" escutcheon with 1-3/4" projection and 5-1/2" pull CTC for consistent installation requirements.
  • 4500 Series Compatibility: Designed exclusively for use with Hager 4500 Rim Exit Device systems for seamless integration.
  • ADA Compliance: Meets accessibility requirements for educational facility applications.
  • Non-Handed Design: Universal installation reduces inventory requirements and simplifies field installation.
  • Lifetime Warranty: Comprehensive manufacturer warranty coverage for long-term confidence and protection.

Technical Specifications

  • ADA Compliant: Yes
  • Applications: For use with 4500 Rim Exit Device only;
  • Commercial/Residential: Commercial
  • Cylinder and Keyways: Requires a 3902 mortise cylinder (1-1/8" or 1-3/8") with standard cam, sold separately
  • Door Thickness: 1-3/4"
  • Escutcheons: 3” x 14-5/8” (76mm x 372mm)
  • Finishes: US32D
  • Functions: 05 - Key locks or unlocks thumb piece
  • Notes: NOT for use with vertical rod devices
  • Plate Size: 3" x 14-5/8"
  • Projection: 1-3/4" (45mm)
  • Pull CTC: 5-1/2"
  • Subcategory: Exit Devices and Trim
  • Warranty: Lifetime

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including 1-3/4" door thickness and compatibility with 4500 Rim Exit Device.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces for 3" x 14-5/8" escutcheon placement.
  3. Prepare door by drilling required holes and routing as specified in manufacturer instructions for 1-3/4" projection clearance.
  4. Install 3902 mortise cylinder (1-1/8" or 1-3/8") with standard cam in trim assembly before mounting to door.
  5. Install all mounting hardware and secure the trim to door per manufacturer torque specifications ensuring proper alignment with exit device.
  6. Test thumbturn and key operation to verify proper function of classroom security features and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Educational Facility Classroom Security
  • School Administrative Offices
  • Training and Conference Rooms
  • Healthcare Patient Areas
  • Commercial Office Spaces
  • Government Building Secure Areas
  • Multi-Tenant Building Common Areas

Why Choose Hager Quality?

Hager exit device trim products deliver professional-grade reliability with zinc, stainless steel, and aluminum construction engineered for demanding commercial applications. Lifetime warranty coverage provides added confidence for educational and commercial installations. Grade 1 certification ensures dependable performance where classroom security and accessibility compliance are essential.

Product Specs

ADA Compliant:
Yes
Product Group:
Exit Devices Trims
Product Subgroup:
Exit Devices - Trim
Product Type:
Exit Device Trims
Subcategory:
Exit Devices and Trim
Commercial/Residential:
Commercial
Pull CTC:
5-1/2"
Plate Size:
3” x 14-5/8”
Product Model:
45PT
Product Function:
Exit Device Only
Door Thickness Range:
1-3/4"
Product Projection:
1-3/4"
Product Substrate:
Zinc, Stainless Steel, Aluminum
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Hager 45PT 32D – Frequently Asked Questions

1) Will the Hager 45PT trim work on a vertical rod exit device?
No. The 45PT classroom trim is built for the Hager 4500 rim exit device only, and Hager states outright it is not for use with vertical rod devices. If you're trimming a surface or concealed vertical rod opening, you need the trim specified for that device family, not this one. Put it on a 4500 rim device and the thumbpiece retracts the rim latch the way it should; put it on a vertical rod device and the prep and actuation don't line up.
2) Does the Hager 45PT classroom trim come with a cylinder?
No cylinder is included. The 45PT takes a Hager 3902 mortise cylinder in either 1-1/8 inch or 1-3/8 inch length with a standard cam, ordered separately. Budget for it on every opening, and if you're keying a school into an existing master system, get the cylinders keyed to that system rather than keyed alike out of the box. Without the cylinder the key side of the classroom function does nothing.
3) What does the classroom function on the Hager 45PT actually do during a lockdown?
Function 05: the key locks or unlocks the thumbpiece, and this version adds an auxiliary thumbturn so the room can be secured from the inside without anyone stepping into the corridor with a key. When the thumbpiece is locked, outside entry is blocked; the exit device inside always allows free egress. That inside-secure capability is why this trim gets specified for classrooms and offices rather than a plain key-in-thumbpiece trim.
4) Will the Hager 45PT fit a 1-3/8 inch door?
No. The 45PT is a single-thickness trim rated for 1-3/4 inch doors, which is the standard commercial thickness. On a thinner 1-3/8 inch door the through-bolt lengths and cylinder engagement won't be right. Confirm the leaf is a true 1-3/4 before ordering, particularly on older interior openings in a school where 1-3/8 inch doors are still common.
5) Do I need to order the Hager 45PT handed?
Non-handed. One 45PT covers left and right hand openings, so a property manager or school district stocking spares only needs one part number on the shelf. Handing is set by the 4500 rim device and the door itself, not by the trim.
6) How much of the door face does the Hager 45PT escutcheon cover, and how far does it stick out?
The escutcheon plate measures 3 x 14-5/8 inches (76 x 372 mm) with a 1-3/4 inch (45 mm) projection off the door face. Two things that matters for: the plate needs 3 inches of clear stile, so check narrow aluminum stiles before specifying, and the 1-3/4 inch projection has to clear any adjacent wall, jamb return, or door that swings past it. If you're replacing an older trim, that 3 x 14-5/8 footprint will usually cover a smaller existing plate's holes rather than leave them exposed.
7) What is the pull center-to-center on the Hager 45PT trim?
5-1/2 inches pull center-to-center. That spacing decides whether the trim lands on an existing pull prep: if the door is already bored for a different CTC, you're drilling new holes and covering the old ones under the 3 x 14-5/8 escutcheon. Worth measuring the existing prep before the crew shows up.
8) Is the Hager 45PT rated for commercial traffic or is it a residential-duty trim?
Commercial duty, Grade 1, in zinc, stainless steel, and aluminum. That is the grade level institutional and MRO buyers spec for school corridors, healthcare, and government openings where the trim gets worked hard every day. It is not a residential product.
