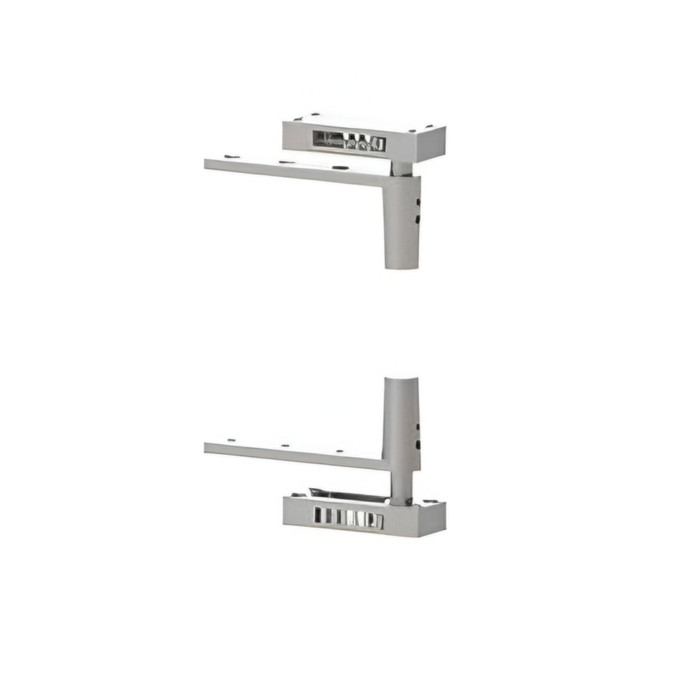

Hager 500 Full Mortise Center Hung Pivot with Rack and Pinion - Standard Weight Brass Construction

Hager 500 Full Mortise Center Hung Pivot with Rack and Pinion - Standard Weight Brass Construction

Professional Single Acting Pivot Solution

The Hager 500 Full Mortise Center Hung Pivot delivers reliable door operation for commercial applications with rack and pinion mechanism and standard weight brass construction. Designed for doors from 1-3/8" to 1-3/4" thick, this pivot supports up to 80 pounds and accommodates doors up to 3' wide by 7' high. The non-handed, concealed design provides adjustable alignment with 105-degree maximum opening capability.

Professional Features & Benefits

• Door Compatibility: Accommodates door thickness from 1-3/8" (35 mm) to 1-3/4" (44 mm) for versatile installation options.
• Weight Capacity: Supports doors up to 80 pounds with maximum dimensions of 3' (914 mm) wide by 7' (2134 mm) high for standard commercial applications.
• Rack and Pinion Mechanism: Single acting standard weight design provides smooth, reliable door operation with precise control.
• Concealed Installation: Full mortise design with both leaves mortised provides clean, professional appearance when installed.
• Adjustable Alignment: Non-handed design with adjustable alignment capability ensures proper door operation and easy installation.
• Maximum Opening Range: 105-degree maximum opening provides excellent clearance for high-traffic applications.
• Professional Construction: Brass substrate construction meets ANSI/BHMA standards for commercial door hardware applications.
• Non-handed - Concealed - Adjustable alignment;

Technical Specifications

• ANSI/BHMA: ANSI A2792
• Applications: Standard Door
• Commercial/Residential: Commercial
• Door Thickness: 1-3/8" (35 mm) thru 1-3/4" (44 mm);
• Door Weight: Up to 80 lbs
• Duty Level: Standard Duty
• Electronic: No
• Fastener Size - Machine: upon request;
• Fastener Size - Wood: 1-1/4" x 12" F.H.;
• Finishes: US26D;
• Fire Rating: No
• Lock Type: Mortise
• Maximum Door Length: 7' (2134 mm);
• Maximum Door Weight: 80 lbs.;
• Mounting Method: Center Hung
• Notes: 1-3/8" (35 mm) thru 1-3/4" (44 mm) thick doors.
• Pivot Type: Top & Bottom
• Subcategory: Pivots

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/8" to 1-3/4", maximum weight of 80 pounds, and door dimensions not exceeding 3' wide by 7' high.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces for full mortise installation.
3. Prepare door and frame by drilling required holes and routing mortise pockets as specified in manufacturer instructions for both pivot leaves.
4. Install pivot hardware ensuring frame does not have door stop at head and pivot jamb as required for proper operation.
5. Adjust pivot alignment for proper door operation and verify 105-degree maximum opening clearance throughout the full range of motion.
6. Test pivot operation to verify smooth single acting function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Hager Quality?

Hager pivot products deliver professional-grade reliability with brass construction and rack and pinion mechanism rated for up to 80 pounds and doors up to 7' high. Manufactured in accordance with ANSI/BHMA A156.1 standards, this pivot provides the precision and durability required for demanding commercial applications. Engineered for standard duty commercial use where dependable door operation and professional appearance are essential.
