Shrink-Kon HS500-1000 HVYWALL HTSHK 3:1 BLK 500-1000 9IN

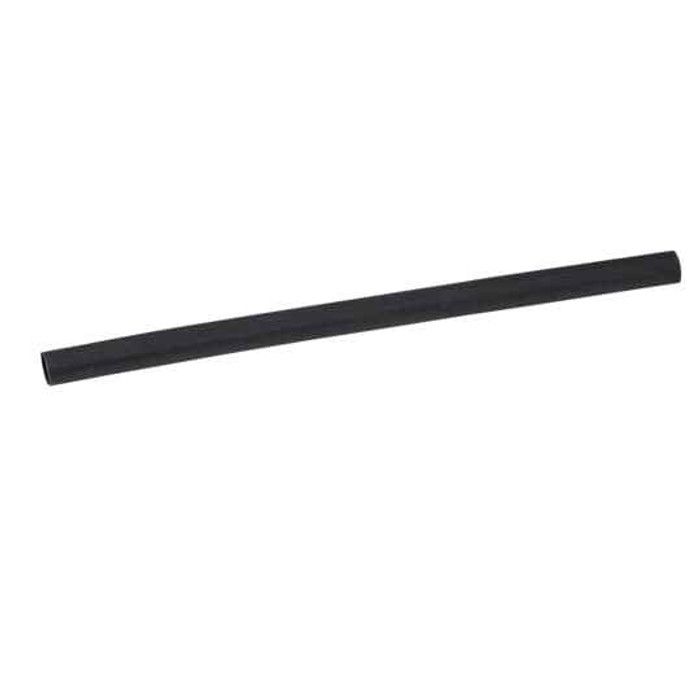

Shrink-Kon Heavy-Wall Heat Shrinkable Tubing 3:1 Ratio Black 500-1000 MCM 9 Inch 600V

(No reviews yet) Write a Review

Model: HS500-1000
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$96.94
$52.76
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Shrink-Kon Heavy-Wall Heat Shrinkable Tubing 3:1 Ratio Black 500-1000 MCM 9 Inch 600V

Professional Heavy-Wall Heat Shrink Protection for Large Cable Applications

Shrink-Kon Heavy-Wall Heat Shrinkable Tubing delivers superior cable protection and insulation for demanding electrical applications. This 3:1 shrink ratio tubing accommodates 500-1000 MCM conductors with 9-inch length coverage and 600V voltage rating. Made of thermally stabilized cross-linked polyolefin construction, this black tubing provides enhanced wall thickness after recovery for maximum protection and durability in professional installations.

Professional Features & Benefits

  • 3:1 Shrink Ratio: Accommodates wide range of cable sizes from 500-1000 MCM for versatile application compatibility
  • 600V Voltage Rating: Suitable for medium voltage applications with reliable electrical insulation performance
  • Heavy-Wall Construction: Provides superior mechanical protection and enhanced wall thickness after heat recovery
  • Thermally Stabilized Cross-Linked Polyolefin: Delivers long-term stability and resistance to environmental factors
  • 9-Inch Length: Offers extended coverage for comprehensive cable joint and termination protection
  • UL Listed (E9809): Meets rigorous safety standards for professional electrical installations
  • Black Color: Professional appearance suitable for visible installations and UV resistance

Technical Specifications

  • Brand Label: Shrink-Kon
  • Country Of Origin: Canada (CA)
  • Effective Date: 19731023
  • Idea Granular Category Code Igcc : 5073 >> Heat shrinkable tube
  • Product Color: Black
  • Product Name: PLASTIC HEAT SHRINK TUBING
  • Product Net Depth Length: 9 in228.6 mm
  • Product Type: Heavy-Wall Heat Shrinkable Tubing
  • Selling Unit Of Measure: each
  • Special Functions: Made of thermally stabilized cross-linked polyolefin, enabling a recovered wall thickenss greater t
  • Standards: UL E9809
  • Voltage Rating: 600 V
  • Weee Category: Product Not in WEEE Scope

Professional Applications

  • Large Cable Splicing and Terminations
  • Underground Distribution Systems
  • Industrial Power Distribution
  • Commercial Electrical Installations
  • Utility Infrastructure Projects
  • Heavy-Duty Cable Protection
  • Medium Voltage Applications

Why Choose Shrink-Kon Quality?

Shrink-Kon delivers proven reliability with UL Listed certification and thermally stabilized cross-linked polyolefin construction. The heavy-wall design ensures superior protection and enhanced wall thickness after recovery, providing long-term performance in demanding electrical environments. Canadian manufacturing quality ensures consistent performance and professional results.

Manufacturer Resources

Product Specs

Brand Label:
Shrink-Kon
Country Of Origin:
Canada (CA)
Effective Date:
19731023
Idea Granular Category Code Igcc :
5073 >> Heat shrinkable tube
Product Color:
Black
Product Net Depth Length:
9 in228.6 mm
Product Type:
Heavy-Wall Heat Shrinkable Tubing
Selling Unit Of Measure:
each
Special Functions:
Made of thermally stabilized cross-linked polyolefin, enabling a recovered wall thickenss greater t
Standards:
UL E9809
Voltage Rating:
600 V
Weee Category:
Product Not in WEEE Scope

Shrink-Kon HS500-1000 – Frequently Asked Questions

1) What cable sizes does Shrink-Kon HS500-1000 heat shrink tubing fit?
The HS500-1000 is sized for 500 to 1000 MCM conductors. The 3:1 shrink ratio is what lets one piece cover that whole range, so the same part works on a 500 MCM termination and on a 1000 MCM splice without stocking two sizes.
2) Is 9 inches of tubing enough to cover a large cable lug termination?
Each piece of HS500-1000 is 9 inches long (228.6 mm), and it is sold each, not by the roll. That length covers a lug barrel and runs back onto the cable jacket on a typical 500-1000 MCM termination. For a long inline splice on cable that size, plan on more than one piece or cut lengths from bulk tubing instead.
3) What voltage is this heavy-wall heat shrink rated for?
600 V. That covers service entrance, feeder, and industrial power distribution work on 500-1000 MCM conductors. It is not a medium voltage cable accessory, so for 5 kV or 15 kV terminations you need a rated MV shrink kit instead.
4) Is Shrink-Kon HS500-1000 UL Listed for inspected electrical work?
Yes, it is UL Listed under file E9809. That is the reference an inspector or spec reviewer will ask for on a 600 V insulation repair or termination.
5) What is the difference between heavy-wall and thin-wall heat shrink for large cable?
Heavy-wall tubing like the HS500-1000 recovers to a thicker wall than standard thin-wall tubing, so it adds mechanical abrasion protection on top of electrical insulation. On 500-1000 MCM cable pulled through underground duct or ganged in industrial gear, that extra wall is the point. Thin-wall is for marking, strain relief, and small-gauge insulation where there is no mechanical abuse.
6) Will this tubing hold up outdoors and underground?
The material is thermally stabilized cross-linked polyolefin, and the black pigment helps it resist UV, which is why it is used on underground distribution and outdoor industrial feeders. Black is the only color offered in this part.
7) Does this heat shrink have adhesive sealant inside?
The HS500-1000 is specified as thermally stabilized cross-linked polyolefin heavy-wall tubing rated 600 V. If your job requires a moisture-blocking seal at the cable ends, order an adhesive-lined heavy-wall tubing or add a mastic wrap under the tubing before shrinking.
8) What part number do I order for 500-1000 MCM Shrink-Kon heavy-wall shrink tubing?
Order Shrink-Kon HS500-1000. It is the black, 9 inch, 600 V heavy-wall piece covering 500 through 1000 MCM, sold as individual pieces.
9) Can a heat gun shrink this, or do I need a torch?
Heavy-wall tubing sized for 500-1000 MCM needs far more heat input than thin-wall. A high-output industrial heat gun will do it on smaller recoveries; most crews use a propane torch with a soft flame kept moving, working from the center out so air is pushed ahead of the recovery. Overheating scorches cross-linked polyolefin, so keep the flame off the surface and watch for uniform shrink down onto the conductor.
10) Where is Shrink-Kon HS500-1000 made?
Canada. That matters on projects with country-of-origin reporting or trade-agreement sourcing requirements on the submittal package.
