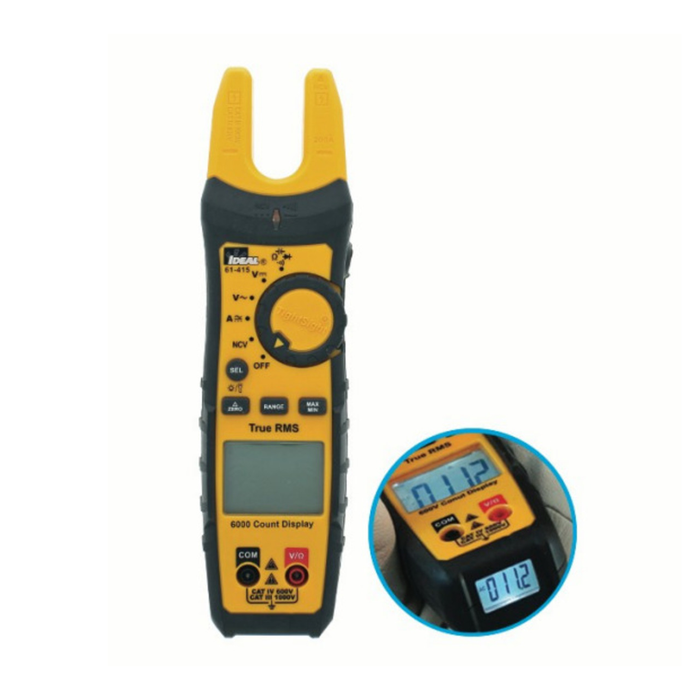

Ideal Industries 61-415 TRMS Digital Split Jaw Fork Meter, 200-Amp AC/DC, 1000-Volt, TightSight

Ideal Industries 61-415 TRMS Digital Split Jaw Fork Meter, 200-Amp AC/DC, 1000-Volt, TightSight

(No reviews yet) Write a Review

Model: 61-415

In Stock (leaves warehouse same day if ordered before 3pm ET)

$191.10
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Ideal Industries 61-415 TRMS Digital Split Jaw Fork Meter, 200-Amp AC/DC, 1000-Volt, TightSight

The Ideal Industries 61-415 is a TRMS (True RMS) digital split jaw fork meter engineered for electricians who need fast, accurate current readings in tight, congested panels and enclosures. Featuring a 3/4-Inch split jaw opening built on Ideal's TightSight design, this meter is rated for 200-Amp AC/DC current measurement and up to 1000-Volt AC/DC, making it a versatile diagnostic tool for both residential and commercial electrical troubleshooting. The split fork jaw allows technicians to slide the meter around a single conductor without disconnecting wiring, dramatically speeding up diagnostic work in crowded terminal blocks, panelboards, and junction boxes where traditional clamp meters cannot fit.

Key Features

  • TightSight Split Jaw Design: 3/4-Inch fork opening lets you take current readings on a single conductor in tight, crowded spaces without disconnecting wires or opening the circuit.
  • TRMS Accuracy: True RMS digital measurement delivers accurate readings on both linear and non-linear loads, including variable frequency drives and other distorted waveforms common in modern electrical systems.
  • 200-Amp AC/DC Current Range: Measures current up to 200 Amps on both AC and DC circuits, covering the majority of branch circuit and equipment diagnostics.
  • 1000-Volt AC/DC Voltage Rating: Rated for voltage measurement up to 1000 Volts on both AC and DC, supporting a wide range of commercial and industrial voltage systems.
  • Digital Display: Digital readout provides clear, direct current and voltage values for fast field diagnostics.
  • Fork Meter Form Factor: The split jaw fork style is purpose-built for accessing single conductors in dense panels where a standard closed-jaw clamp meter cannot be positioned.

Technical Specifications

  • Model: Ideal Industries 61-415
  • Jaw Opening: 3/4-Inch
  • Current Range: 200-Amp AC/DC
  • Voltage Range: 1000-Volt AC/DC
  • Measurement Type: TRMS (True RMS)
  • Design: Split Jaw Fork Meter with TightSight technology
  • Display: Digital

Typical Applications

  • Panelboard and Load Center Current Diagnostics
  • Congested Junction Box and Terminal Block Troubleshooting
  • Commercial and Industrial Electrical Maintenance
  • Single-Conductor Current Measurement Without Circuit Disconnection
  • Variable Frequency Drive and Non-Linear Load Diagnostics

Why Ideal Industries?

Ideal Industries builds test instruments engineered for the realities of professional electrical work, and the 61-415 TightSight fork meter is designed specifically to solve the problem of taking current readings in spaces too tight for conventional clamp meters. With TRMS accuracy, a 200-Amp AC/DC current range, and a 1000-Volt AC/DC voltage rating, this meter gives electricians a reliable, code-relevant diagnostic tool for demanding panel and equipment work. Choose the Ideal Industries 61-415 for fast, accurate, single-conductor current measurement in the tightest electrical enclosures.

Manufacturer Resources

Product Specs

list_batch:
IDL-20260924
Product Type:
Clamp Meter
Amperage Rating:
200A
Voltage Rating:
1000V AC/DC
Configuration:
Split Jaw
Department:
Electrical
Product Subgroup:
Multimeters
Product Size:
3/4-Inch
Product Group:
Test & Measurement

Ideal Industries 61-415 – Frequently Asked Questions

1) Will the Ideal 61-415 fork meter fit around a conductor in a crowded panelboard?
That is what the 61-415 is built for. The split jaw opening is 3/4 inch, and because the fork is open on one side you slide it over a single conductor instead of having to encircle it with a closed clamp. Any conductor whose outside diameter (insulation included) is under 3/4 inch will seat in the jaw. In a dense panelboard or terminal block, that means you can take a reading without pulling wires loose or de-energizing the circuit.
2) How much current can the Ideal 61-415 measure, and is it AC only?
Both AC and DC, up to 200 amps. That covers branch circuits, feeders on smaller equipment, and most motor and appliance loads an electrician checks day to day. Voltage measurement is rated to 1000V AC/DC on the same tool, so it handles 120/208, 277/480 and DC systems within that limit.
3) Should I buy a fork meter or a standard clamp meter?
Pick the fork style when access is the problem. A closed-jaw clamp has to be opened and wrapped around the conductor, which often will not happen inside a packed load center or junction box. The 61-415's split jaw slides in sideways onto one conductor, so you get a reading where a clamp physically cannot be positioned. The tradeoff is the opening size: 3/4 inch limits you to smaller conductors, so for large feeders or service entrance cable you still want a conventional clamp meter with a bigger jaw.
4) Will the Ideal 61-415 read accurately on VFD and other non-linear loads?
Yes, it is a True RMS instrument. TRMS measurement is what you need on distorted waveforms, which is what variable frequency drives, electronic ballasts, LED drivers and switching power supplies produce. An averaging meter will read those low or high; the 61-415 reports the actual RMS value on both linear and non-linear loads.
5) Can I use the 61-415 on 480V three-phase equipment?
The voltage rating is 1000V AC/DC, so 277/480V systems are inside its range, as are 208V and 240V commercial circuits. Current side, you are capped at 200 amps and a 3/4 inch conductor, so it suits branch circuit and equipment-level diagnostics on those systems rather than the main switchgear.
6) Do I have to shut the circuit down to take a reading with this meter?
No. Current measurement with the 61-415 is non-contact through the fork jaw, so you slide it over one energized conductor and read the load without breaking the circuit or disconnecting wiring. That is the main time saver on troubleshooting calls where dropping power is not an option.
7) What is the exact part number for the Ideal TightSight split jaw fork meter?
Ideal Industries 61-415. That is the manufacturer part number to specify, and the one to use when standardizing meters across a crew or a facility MRO stock so everybody is carrying the same 200A AC/DC, 1000V TightSight fork meter.
