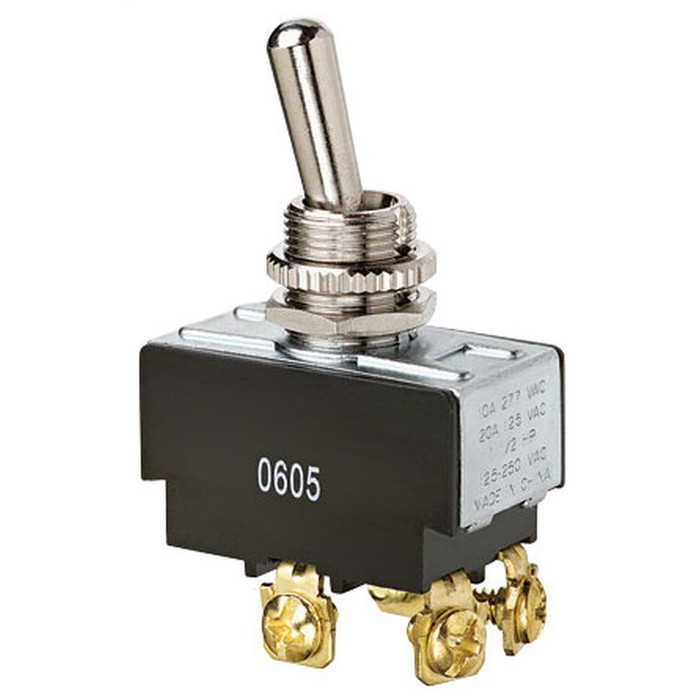

Ideal Industries 774005 Heavy-Duty DPST Toggle Switch, On-Off, Spade Terminal

Ideal Industries 774005 Heavy-Duty DPST Toggle Switch, On-Off, Spade Terminal

(No reviews yet) Write a Review

Model: 774005

In Stock (leaves warehouse same day if ordered before 3pm ET)

$27.23
Adding to cart… The item has been added
Free Shipping on orders over $199.99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Ideal Industries 774005 Heavy-Duty DPST Toggle Switch, On-Off, Spade Terminal

The Ideal Industries 774005 is a heavy-duty toggle switch built for reliable on-off control in demanding electrical, industrial, and equipment applications. Configured as a DPST (double-pole, single-throw) switch, the 774005 allows an installer to control two separate circuit poles simultaneously from a single toggle actuation, making it a practical choice for equipment requiring dual-circuit switching in one compact device. The switch is equipped with spade terminals for quick, secure wire connections, simplifying installation and reducing termination time on the bench or in the field. As a heavy-duty rated device, the 774005 is engineered to withstand frequent actuation and demanding duty cycles typical of industrial control panels, machinery, and equipment wiring applications where dependable switch performance is essential.

Key Features

  • DPST Configuration: Double-pole, single-throw switching allows simultaneous control of two circuit poles from a single toggle, ideal for dual-circuit applications requiring synchronized on-off control.
  • On-Off Operation: Simple, positive toggle action provides clear on-off switching for straightforward circuit control in equipment and panel-mount applications.
  • Spade Terminal Connections: Spade-style terminals enable fast, secure wire connections, streamlining installation and reducing assembly time compared to solder or screw-only terminations.
  • Heavy-Duty Construction: Built to withstand frequent actuation and demanding operating conditions, supporting long service life in industrial and commercial equipment applications.
  • Compact Toggle Design: Standard toggle switch form factor supports easy panel or equipment mounting in space-constrained enclosures and control panels.

Technical Specifications

  • Product Type: Toggle Switch
  • Configuration: DPST (Double-Pole, Single-Throw)
  • Switch Action: On-Off
  • Termination: Spade Terminal
  • Duty Rating: Heavy-Duty

Typical Applications

  • Industrial Equipment and Machinery Control Panels
  • Dual-Circuit On-Off Switching Applications
  • Commercial and Industrial Electrical Assemblies
  • Equipment Wiring Requiring Frequent Switch Actuation
  • Panel-Mount Toggle Switch Installations

Why Ideal Industries?

Ideal Industries is a trusted name in professional electrical tools, wiring devices, and switching components, and the 774005 heavy-duty DPST toggle switch reflects that same commitment to dependable performance. Built for demanding duty cycles with a straightforward on-off DPST configuration and convenient spade terminal connections, this switch delivers the reliable, code-compliant performance professionals expect for industrial and commercial equipment wiring. Choose Ideal Industries for switching components engineered to perform where dependable circuit control matters most.

Product Specs

list_batch:
IDL-20260924
Product Type:
Double-Pole Toggle Switch
Configuration:
2-Pole
Grade:
Heavy-Duty
Department:
Electrical
Product Subgroup:
Toggle Switches
Product Group:
Wiring Devices

Ideal Industries 774005 – Frequently Asked Questions

1) What does DPST mean on the Ideal Industries 774005 toggle switch, and when do I need it instead of a single-pole switch?
DPST means double-pole, single-throw: two separate circuit poles are opened and closed together from one toggle. The 774005 is the right pick when you need to break both legs of a circuit at once, for example both hot conductors of a 240V load or two independent circuits that must switch in sync. If you only need to make or break one conductor, a single-pole switch is the simpler and cheaper part.
2) How does the Ideal 774005 switch terminate, and do I need to solder it?
No soldering. The 774005 uses spade terminals, so you crimp mating spade connectors onto your conductors and push them on. That keeps bench or in-panel termination fast and makes the switch serviceable later without a soldering iron. Crimp terminals and the wire are not part of the switch.
3) Is the Ideal 774005 a maintained on-off switch or a momentary one?
It is maintained. The 774005 has a positive on-off toggle action, so it stays where you put it. For jog, start, or momentary-contact duty on machinery, this is the wrong switch and you need a momentary-action device.
4) Is this Ideal toggle switch rated for frequent switching in an industrial control panel?
Yes, the 774005 is a heavy-duty grade toggle built for frequent actuation and demanding duty cycles, which is why it is specified for machinery and industrial control panels and equipment wiring that gets cycled often. For an occasional-use consumer application, a standard-duty toggle would do the job.
5) Can the Ideal 774005 be panel mounted in a control enclosure?
Yes. The 774005 is a standard toggle switch form factor intended for panel or equipment mounting, including space-constrained enclosures and control panels. It is an equipment-mount switch, not a wall-box wiring device, so it goes in a panel cutout rather than a device box with a cover plate.
6) Can I use the 774005 to switch two separate circuits at the same time from one toggle?
That is exactly what the two-pole configuration does. One toggle movement makes or breaks both poles together, so two independent circuits switch simultaneously. The poles are electrically separate, so you can run two different loads through them rather than being limited to one circuit.
7) What is the exact part number to order for the Ideal Industries heavy-duty DPST toggle switch?
Order Ideal Industries 774005. That is the manufacturer part number for the heavy-duty DPST on-off toggle with spade terminals, and it is the only model in the family, so there are no finish, voltage, or termination variations to specify.
