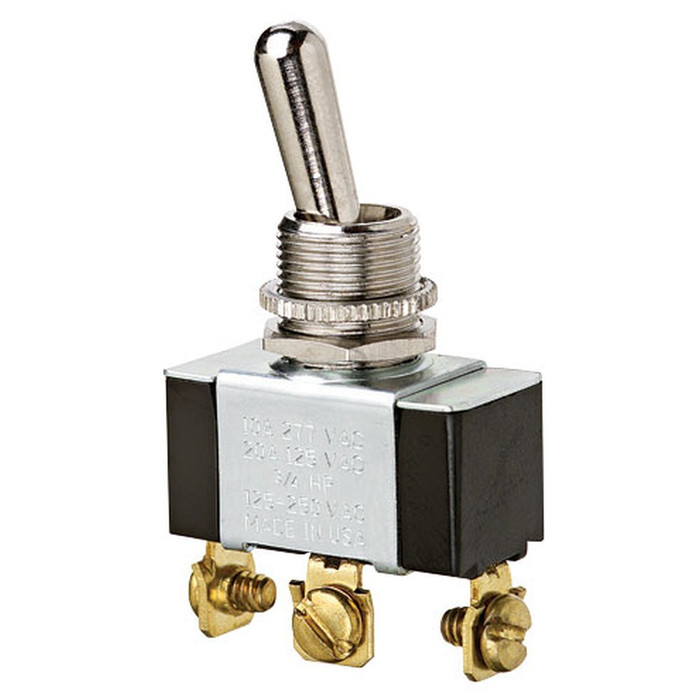

Ideal Industries 774009 SPDT Toggle Switch, (On)-Off-(On), Screw Terminal

Ideal Industries 774009 SPDT Toggle Switch, (On)-Off-(On), Screw Terminal

(No reviews yet) Write a Review

Model: 774009

In Stock (leaves warehouse same day if ordered before 3pm ET)

$24.84
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Ideal Industries 774009 SPDT Toggle Switch, (On)-Off-(On), Screw Terminal

The Ideal Industries 774009 is a single-pole, double-throw (SPDT) toggle switch configured in the momentary (On)-Off-(On) style, giving installers and panel builders a reliable manual control point that returns to center-off when released from either toggle position. Built with screw terminal connections for a secure, serviceable wire attachment, this toggle switch is designed for control circuit applications where a momentary make/break function is required on both sides of a neutral off position. The SPDT switching arrangement allows a single switch to control two separate circuit paths from one common terminal, making it a compact, versatile solution for control panels, machine interfaces, and equipment wiring where momentary dual-direction control is needed.

Key Features

  • Switching Configuration: SPDT (single-pole, double-throw) contact arrangement for controlling two circuit paths from a single switch.
  • Toggle Action: (On)-Off-(On) momentary function springs back to the center-off position from either toggle direction, ideal for jog, pulse, or momentary control applications.
  • Termination: Screw terminal connections provide a secure, serviceable wiring point for control circuit conductors.
  • Compact Toggle Design: Standard toggle switch form factor suited for panel-mount and equipment control applications.
  • Manual Control Point: Provides a straightforward, tactile means of directing control circuit signals in industrial and commercial equipment.

Technical Specifications

  • Switch Type: SPDT Toggle Switch
  • Action: (On)-Off-(On), Momentary Both Sides
  • Termination: Screw Terminal

Typical Applications

  • Control Panel and Machine Interface Wiring
  • Momentary Jog and Pulse Control Circuits
  • Equipment and Appliance Control Switching
  • Industrial and Commercial Electrical Panels
  • General-Purpose Manual Circuit Control

Why Ideal Industries?

Ideal Industries is a trusted name in electrical hand tools, testers, and control components used by professionals across residential, commercial, and industrial installations. The 774009 toggle switch reflects Ideal's focus on straightforward, dependable control hardware with secure screw terminal wiring, giving electricians and panel builders a switch they can count on for momentary control applications.

Manufacturer Resources

Product Specs

list_batch:
IDL-20260924
Product Type:
Toggle Switch
Configuration:
SPDT (On)-Off-(On)
Connection Type:
Screw Terminal
Department:
Electrical
Product Subgroup:
Toggle Switches
Product Group:
Wiring Devices

Ideal Industries 774009 – Frequently Asked Questions

1) Does the Ideal 774009 toggle switch stay in position, or does it spring back to off?
It springs back. The Ideal Industries 774009 is wired as (On)-Off-(On) momentary on both sides, so the toggle returns to center-off as soon as you release it from either direction. If you need the switch to latch and hold a circuit closed, this is the wrong part - you want a maintained On-Off-On switch instead.
2) What does SPDT mean on the 774009, and can it run two separate circuits?
SPDT is single-pole, double-throw: one common terminal feeding two selectable outputs. On the 774009 that means one toggle can direct a control signal down either of two circuit paths, one per toggle direction, with nothing energized at rest. It is a single pole, so it switches one circuit at a time, not two simultaneously - for that you need a double-pole switch.
3) How is the Ideal 774009 toggle switch wired - screw terminals or solder lugs?
Screw terminals. The 774009 uses screw terminal connections, so you land stripped control conductors directly under the screws with no soldering and no crimp terminals required. That also makes it serviceable later, which matters in a panel you expect to troubleshoot.
4) Is this the right switch for jog control on a piece of equipment?
Yes, that's exactly the application. Momentary action on both sides means the circuit is only made while you hold the toggle over, which is what jog and pulse control needs - release and the machine stops. The 774009 is used in control panel and machine interface wiring, equipment and appliance control, and general manual circuit control.
5) What is the Ideal Industries part number for this SPDT momentary toggle switch?
The manufacturer part number is 774009, from Ideal Industries. Order by that number to get the SPDT (On)-Off-(On) momentary version with screw terminals, since the adjacent toggle models in the same family differ by pole count, action, and termination style.
6) Can the 774009 be mounted in a control panel face?
It is a standard toggle switch form factor intended for panel-mount and equipment control use, so it drops into a panel face or enclosure door as a manual control point. Confirm your cutout against the switch bushing before you drill the panel.
