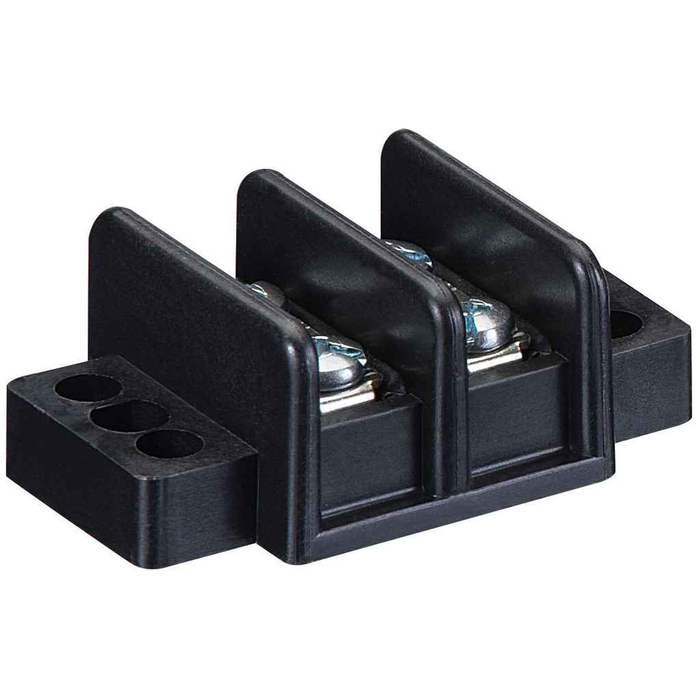

Ideal Industries Terminal Strip 22-10 AWG Screw Terminal

Ideal Industries Terminal Strip 22-10 AWG Screw Terminal

(No reviews yet) Write a Review

Model: 89-202

In Stock (leaves warehouse same day if ordered before 3pm ET)

$6.79
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Ideal Industries Terminal Strip 6-Pole 22-10 AWG Screw Terminal

Professional-Grade Electrical Connection Terminal Block

The Ideal Industries Terminal Strip 6-Pole delivers professional-grade electrical connection performance for wire termination and distribution applications. This rugged polyester thermoplastic terminal block features 6-pole configuration with screw terminals designed for electricians, electrical contractors, and industrial professionals, providing the reliable performance and industry-leading quality that electrical professionals demand for secure wire connections.

Professional Features & Benefits

Superior Construction & Durability

  • Rugged Polyester Thermoplastic Base - UL Rated 94V-0 flame retardant material ensures long-lasting performance in demanding electrical environments
  • Heavy-Duty Corrosion-Resistant Screws - #8-32 Philslot zinc-plated steel terminal screws provide secure connections and resist environmental degradation
  • Precision Center Spacing - 0.562 inch (14.82mm) center spacing ensures consistent wire placement and professional installation results
  • Professional Wire Range Compatibility - Accepts wire sizes from 10 through 22 AWG copper for versatile electrical connection applications

Safety & Code Compliance

  • UL Recognized Certification - UL Listed (E82048) ensures compliance with electrical safety standards and code requirements
  • CSA Certified Design - CSA Certified (LR15364) provides additional safety assurance for Canadian electrical installations
  • Flame Retardant Construction - UL 94V-0 rated thermoplastic base material meets fire safety requirements for electrical applications

Technical Specifications

Wire Range: 22-10 AWG copper wire compatibility, Terminal Configuration: 6-pole screw terminal design, Center Spacing: 0.562 inches (14.82mm), Screw Type: #8-32 Philslot zinc-plated steel, Base Material: Polyester thermoplastic UL 94V-0 rated, Recommended Torque: 16 in.-lb. for secure connections, Certifications: UL Recognized (E82048) and CSA Certified (LR15364), Surface Plates: Heavy-duty corrosion-resistant construction with optional hardware compatibility.

Installation & Setup

  1. Mount terminal strip securely to electrical panel or junction box using appropriate hardware for professional installation results
  2. Strip wire ends to appropriate length ensuring clean copper conductor exposure for optimal electrical contact
  3. Insert stripped wire ends into terminal openings ensuring proper seating against terminal contact surfaces
  4. Tighten #8-32 Philslot screws to recommended 16 in.-lb. torque specification for secure electrical connections
  5. Verify all connections are tight and properly seated before energizing electrical circuit
  6. Label terminal positions according to electrical code requirements for professional identification and maintenance

Professional Applications

Ideal for:

  • Electrical Panel Wiring - Distribution panel wire termination and circuit organization in commercial and industrial installations
  • Control Cabinet Applications - Motor control centers, PLC panels, and industrial automation system wire management
  • Junction Box Connections - Multi-wire splicing and distribution in electrical junction and pull boxes
  • Commercial Building Wiring - Office buildings, retail spaces, and commercial facility electrical distribution systems
  • Industrial Electrical Systems - Manufacturing equipment, process control, and industrial machinery electrical connections
  • Residential Electrical Panels - Home electrical panel organization and circuit distribution applications
  • Telecommunications Equipment - Communication system grounding and power distribution connections
  • HVAC Control Systems - Heating, ventilation, and air conditioning control panel wire termination

Polyester Thermoplastic Construction Advantage

Ideal Industries polyester thermoplastic construction provides superior chemical resistance, dimensional stability, and flame retardant properties essential for electrical applications. The UL 94V-0 rating ensures fire safety compliance while the rugged material withstands temperature variations, moisture, and environmental contaminants common in electrical installations, delivering long-term reliability for professional electrical connections.

Why Choose Ideal Industries Quality?

Ideal Industries commitment to UL Recognition and CSA Certification ensures this terminal strip meets the highest electrical safety standards for professional installations. The precision-engineered screw terminals, corrosion-resistant hardware, and flame-retardant thermoplastic construction provide the reliable performance and code compliance that electrical professionals require for safe, durable electrical connections in demanding commercial and industrial environments.

Manufacturer Resources

Spec Sheet

Product Specs

Recommended Torque:
16 in.-lb.
Department:
Electrical
Product Subgroup:
Terminal Blocks & Strips
Product Type:
Terminal Block
Product Group:
Wire Connectors & Terminals

Ideal Industries 89-202 – Frequently Asked Questions

1) How many poles can I get on the Ideal 89-series terminal strip?
Five pole counts are offered: 2-pole (89-202), 3-pole (89-203), 4-pole (89-204), 6-pole (89-206) and 8-pole (89-208). Pick by the number of separate circuits you need to land, not by wire count, since each pole takes a conductor on each side.
2) Will this terminal block accept 12 AWG and 14 AWG building wire?
Yes. The Ideal 89-series barrier strip is rated for 22 through 10 AWG copper, so standard 12 and 14 AWG branch-circuit conductors land in it without adapters, as do small 18 and 22 AWG control and thermostat wires.
3) What torque should I use on the terminal screws?
Tighten the #8-32 Philslot zinc-plated steel screws to 16 in.-lb. That is the recommended value for the 89-series strip; hitting it with a torque screwdriver is what keeps the connection from loosening under thermal cycling and is what an inspector on a commercial panel job will ask about.
4) Is this terminal strip UL and CSA approved for a commercial control panel?
It is UL Recognized under file E82048 and CSA Certified under LR15364, and the polyester thermoplastic base carries a UL 94V-0 flame retardant rating. That covers both US and Canadian installations for panel and control cabinet work.
5) What is the terminal spacing on the Ideal 89 barrier strip, and will it fit my existing mounting layout?
Center spacing is 0.562 inch (14.82 mm) pole to pole. Multiply that by your pole count to work out the run length before you commit space in a control cabinet or junction box, and confirm it matches the spacing of the strip you are replacing if you are reusing wire lengths and labels.
6) Screw barrier strip or push-in lever connectors for a control panel?
A screw barrier strip like the Ideal 89-series is the right choice when you need each conductor landed on an identifiable, labelled position that can be metered, disconnected and re-terminated, which is how motor control centers, PLC panels and HVAC control cabinets are normally built. Push-in or twist-on connectors are faster for a dead splice inside a box but give you no per-circuit test point and no separation between poles. If the wiring will be serviced or troubleshot later, use the barrier strip.
7) Can I use one of these to splice several wires together in a junction box instead of wire nuts?
Yes, that is one of its intended uses. Multi-wire splicing and distribution in junction and pull boxes is a standard application for the 89-series strip, and it gives you a labelled, re-openable joint instead of a buried nut. Keep conductors within the 22-10 AWG copper range and torque each screw to 16 in.-lb.
8) What material is the base, and will it hold up in a hot or damp equipment enclosure?
The base is polyester thermoplastic with a UL 94V-0 flame retardant rating, chosen for chemical resistance and dimensional stability, and the terminal screws are zinc-plated steel for corrosion resistance. That combination is what lets it sit in enclosures that see temperature swings, moisture and airborne contaminants.
9) Does the Ideal 89 terminal strip come with mounting hardware?
Plan on supplying your own mounting screws. The strip is fastened to the panel or junction box with hardware appropriate to that surface; what ships with the strip are the #8-32 Philslot terminal screws for the conductors themselves.
